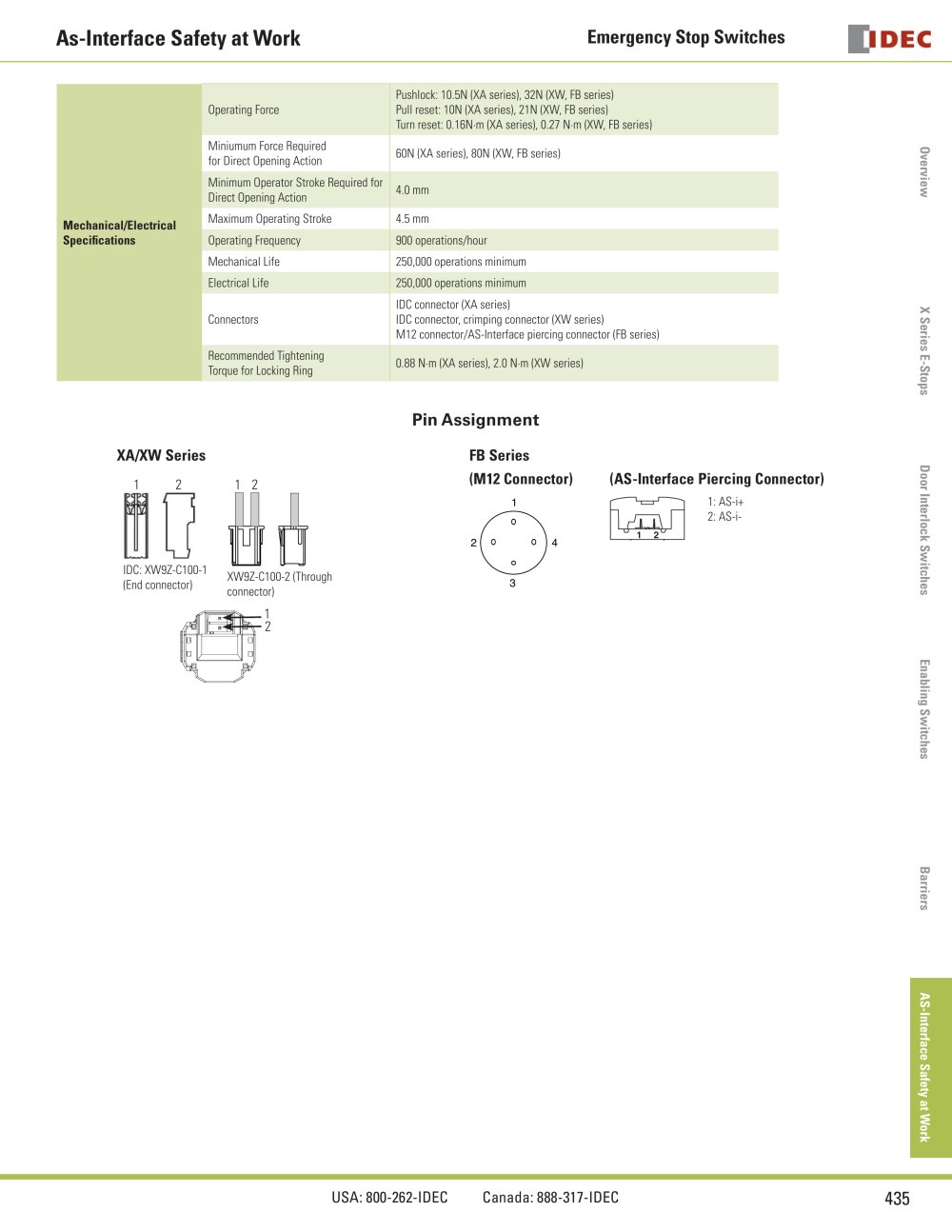

As-Interface Safety at Work
Emergency Stop Switches
Operating ForcePushlock: 10.5N (XA series), 32N (XW, FB series)Pull reset: 10N (XA series), 21N (XW, FB series) Turn reset: 0.16N·m (XA series), 0.27 N·m (XW, FB series)Miniumum Force Required for Direct Opening Action60N (XA series), 80N (XW, FB series)Minimum Operator Stroke Required for Direct Opening Action4.0 mmMaximum Operating Stroke4.5 mmOperating Frequency900 operations/hour Mechanical Life250,000 operations minimum Electrical Life250,000 operations minimumConnectorsIDC connector (XA series)IDC connector, crimping connector (XW series) M12 connector/AS-Interface piercing connector (FB series)Recommended Tightening Torque for Locking Ring0.88 N·m (XA series), 2.0 N·m (XW series)OverviewX Series E-StopsDoor Interlock SwitchesEnabling SwitchesBarriersAS-Interface Safety at Work Mechanical/Electrical Specifi cations
Pin Assignment
XA/XW SeriesFB Series
12 12
(M12 Connector)(AS-Interface Piercing Connector)
1243 1: AS-i+2: AS-i-1 2 IDC: XW9Z-C100-1 (End connector) XW9Z-C100-2 (Through connector)
