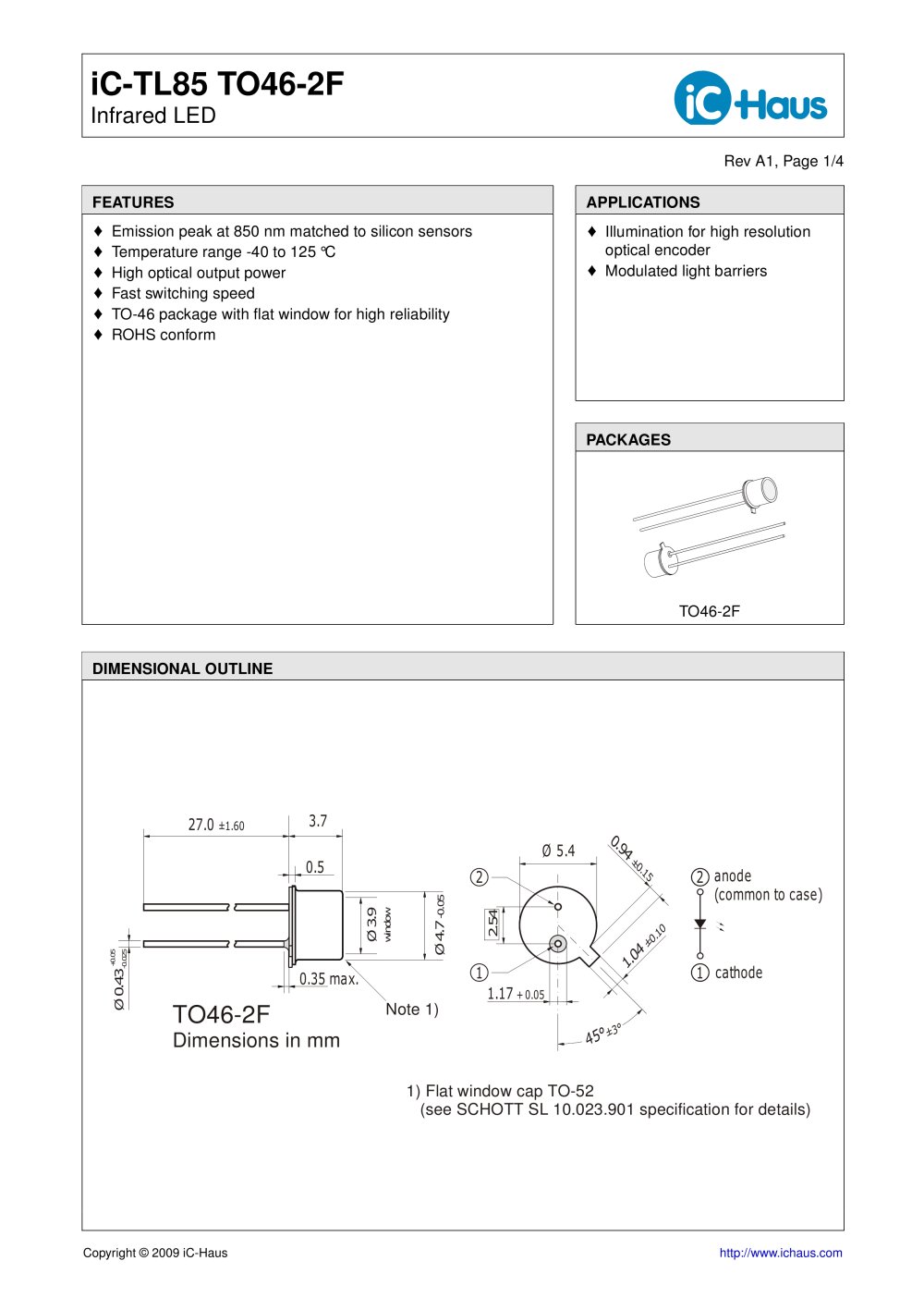

iC-TL85 TO46-2F Infrared LED Rev A1, Page 1/4 FEATURES © Emission peak at 850 nm matched to silicon sensors © Temperature range -40 to 125 °C © High optical output power © Fast switching speed © TO-46 package with flat window for high reliability © ROHS conform APPLICATIONS © Illumination for high resolution optical encoder © Modulated light barriers PACKAGES TO46-2F DIMENSIONAL OUTLINE 27.0 ±1.60 Ø 0.43 +0.05 -0. 025 3.7 0.5 0.35 max. TO46-2F Dimensions in mm 2 1 anode (common to case) cathode 1.17 + 0.05 Ø 5.4 1.04 ±0.10 0.94 ±0.15 45°±3° 2.54 2 1 Ø 4.7 -0.05 Note 1) 1) Flat window cap TO-52 (see SCHOTT SL 10.023.901 specification for details) Ø 3.9 window Copyright © 2009 iC-Haus http://www.ichaus.com
