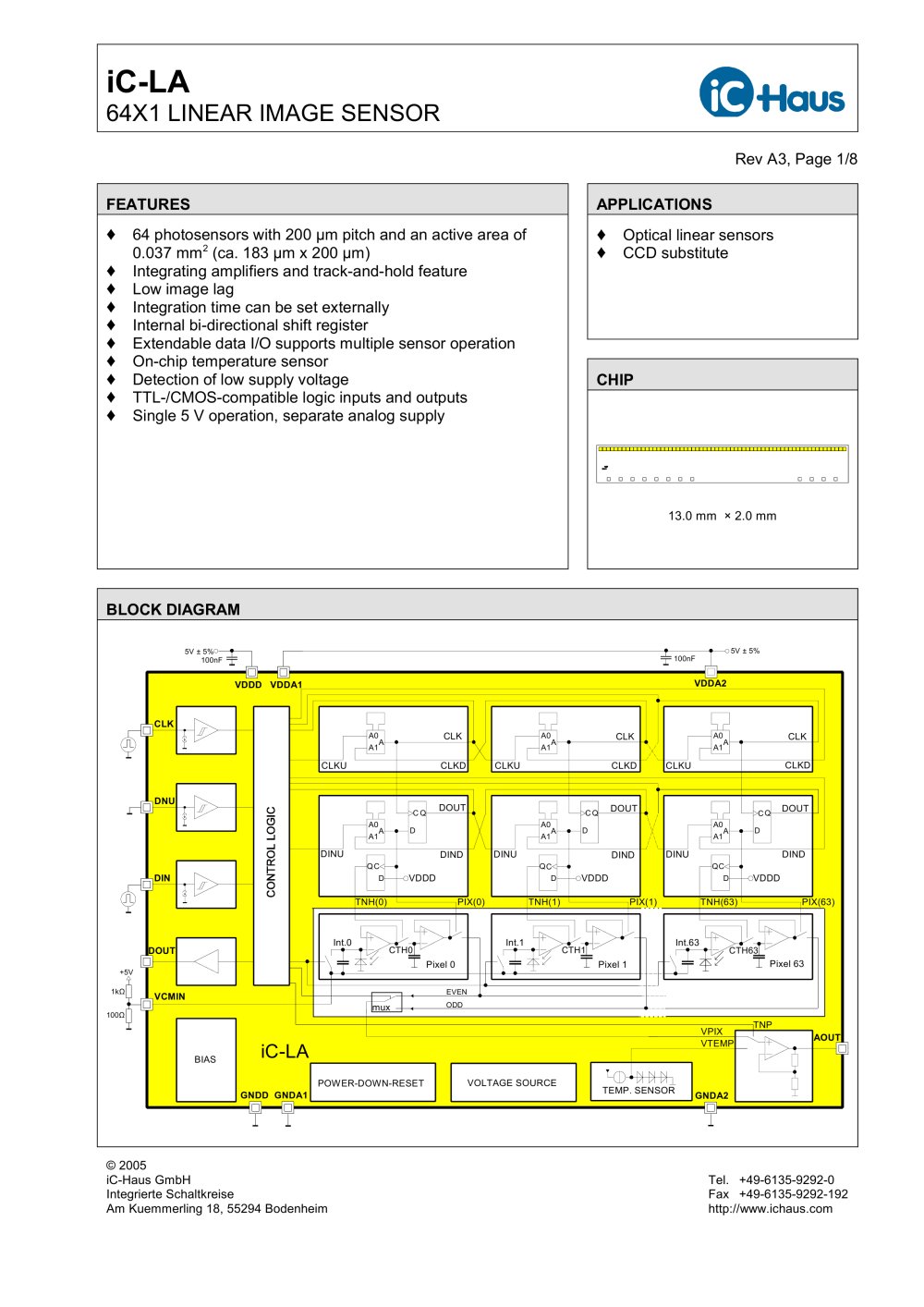

iC-LA 64X1 LINEAR IMAGE SENSOR Rev A3, Page 1/8 13.0 mm × 2.0 mm Q D C A1 A0 A Q D C Q D C A1 A0 A Q D C A1 A0 A Q D C VDDD VDDD VPIX VTEMP TNH(0) PIX(0) TNH(1) PIX(1) TNH(63) PIX(63) Pixel 0 Pixel 1 Pixel 63 EVEN TNP BIAS POWER-DOWN-RESET TEMP. SENSOR A1 A0 A A1 A0 A A1 A0 A Q D C CLK CLK CLK CLKU CLKD CLKU CLKD CLKU CLKD DOUT DOUT DOUT DINU DIND DINU DIND DINU DIND VDDD VDDD VDDA1 AOUT CLK DIN DNU DOUT GNDD GNDA1 VCMIN iC-LA CTH0 CTH1 CTH63 5V ± 5% 5V ± 5% 100nF 100Ù 1kÙ +5V Int.0 Int.1 Int.63 mux ODD GNDA2 VDDA2 100nF VOLTAGE SOURCE FEATURES APPLICATIONS Ë 64 photosensors with 200 µm pitch and an active area of 0.037 mm2 (ca. 183 µm x 200 µm) Ë Integrating amplifiers and track-and-hold feature Ë Low image lag Ë Integration time can be set externally Ë Internal bi-directional shift register Ë Extendable data I/O supports multiple sensor operation Ë On-chip temperature sensor Ë Detection of low supply voltage Ë TTL-/CMOS-compatible logic inputs and outputs Ë Single 5 V operation, separate analog supply Ë Optical linear sensors Ë CCD substitute CHIP BLOCK DIAGRAM © 2005 iC-Haus GmbH Tel. +49-6135-9292-0 Integrierte Schaltkreise Fax +49-6135-9292-192 Am Kuemmerling 18, 55294 Bodenheim http://www.ichaus.com
