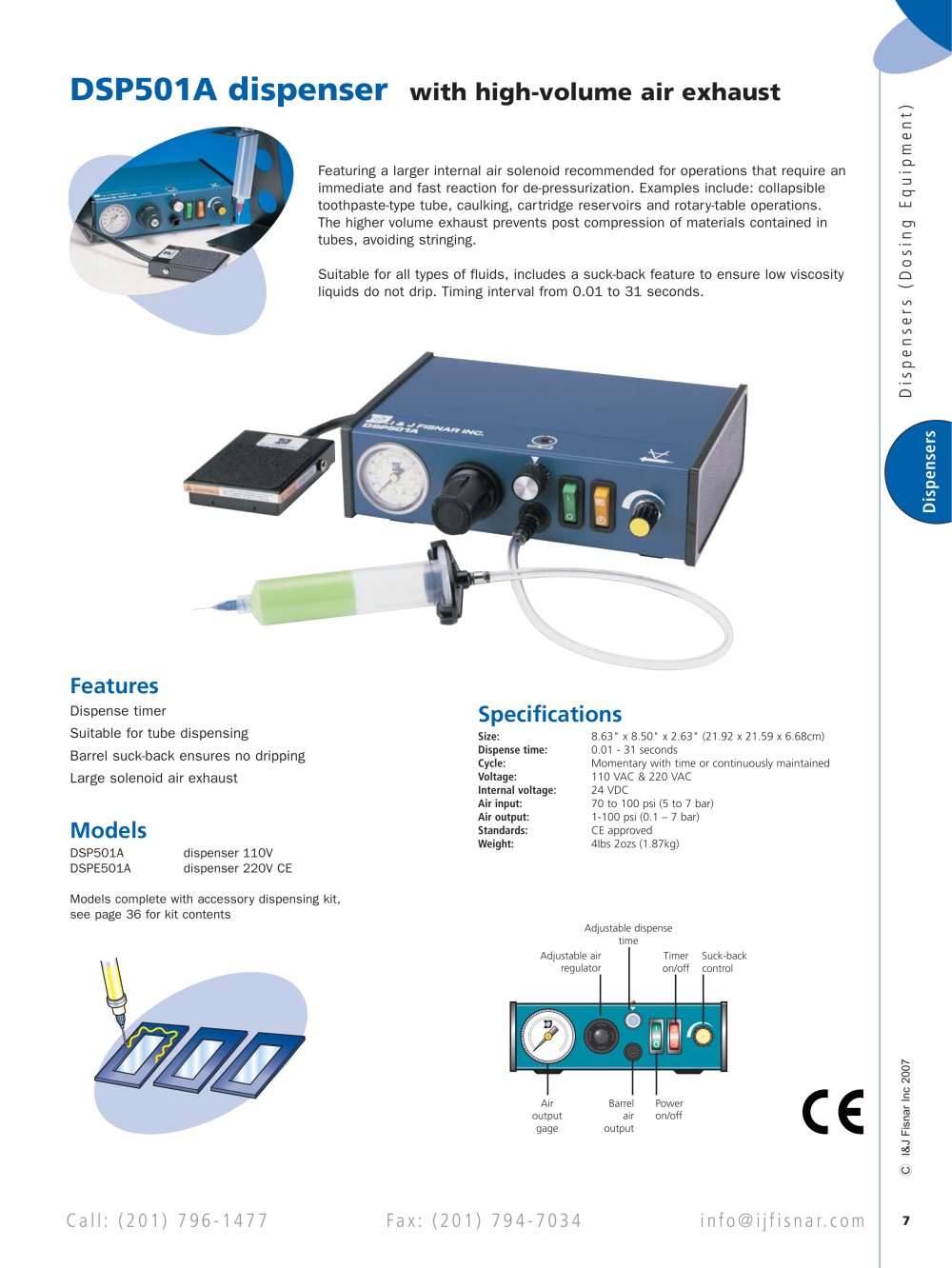

DSP501A dispenser with high-volume air exhaust
Featuring a larger internal air solenoid suppliers recommended for operations that require an immediate and fast reaction for de-pressurization. Examples include: collapsible toothpaste-type tube, caulking, cartridge reservoirs and rotary-table operations. The higher volume exhaust prevents post compression of materials contained in tubes, avoiding stringing.
Suitable for all types of fluids, includes a suck-back feature to ensure low viscosity liquids do not drip. Timing interval from 0.01 to 31 seconds.
LT]
o
Features
Dispense timer
Suitable for tube dispensing
Barrel suck-back ensures no dripping
Large solenoid air exhaust
ecifications
Size: 8.63" x 8.50" x 2.63" (21.92 x 21.59 x 6.68cm)
Dispense time: 0.01 - 31 seconds
Cycle: Momentary with time or continuously maintained
Voltage: 110 VAC & 220 VAC
Internal voltage: 24 VDC
Air input: 70 to 100 psi (5 to 7 bar)
Air output: 1-100 psi (0.1 - 7 bar)
Standards: CE approved
Weight: 4Ibs 2ozs (1.87kg)
Models
DSP501A DSPE501A
dispenser 110V dispenser 220V CE
Models complete with accessory dispensing kit, see page 36 for kit contents
Adjustable dispense time
Adjustable air regulator
Suck-back control
Timer on/off
r--
o o
CM
o _c
TO
Ll
©
Barrel Power air on/off output
Air output
gage
info@ijfisnar.com
034
7
