Catalog excerpts

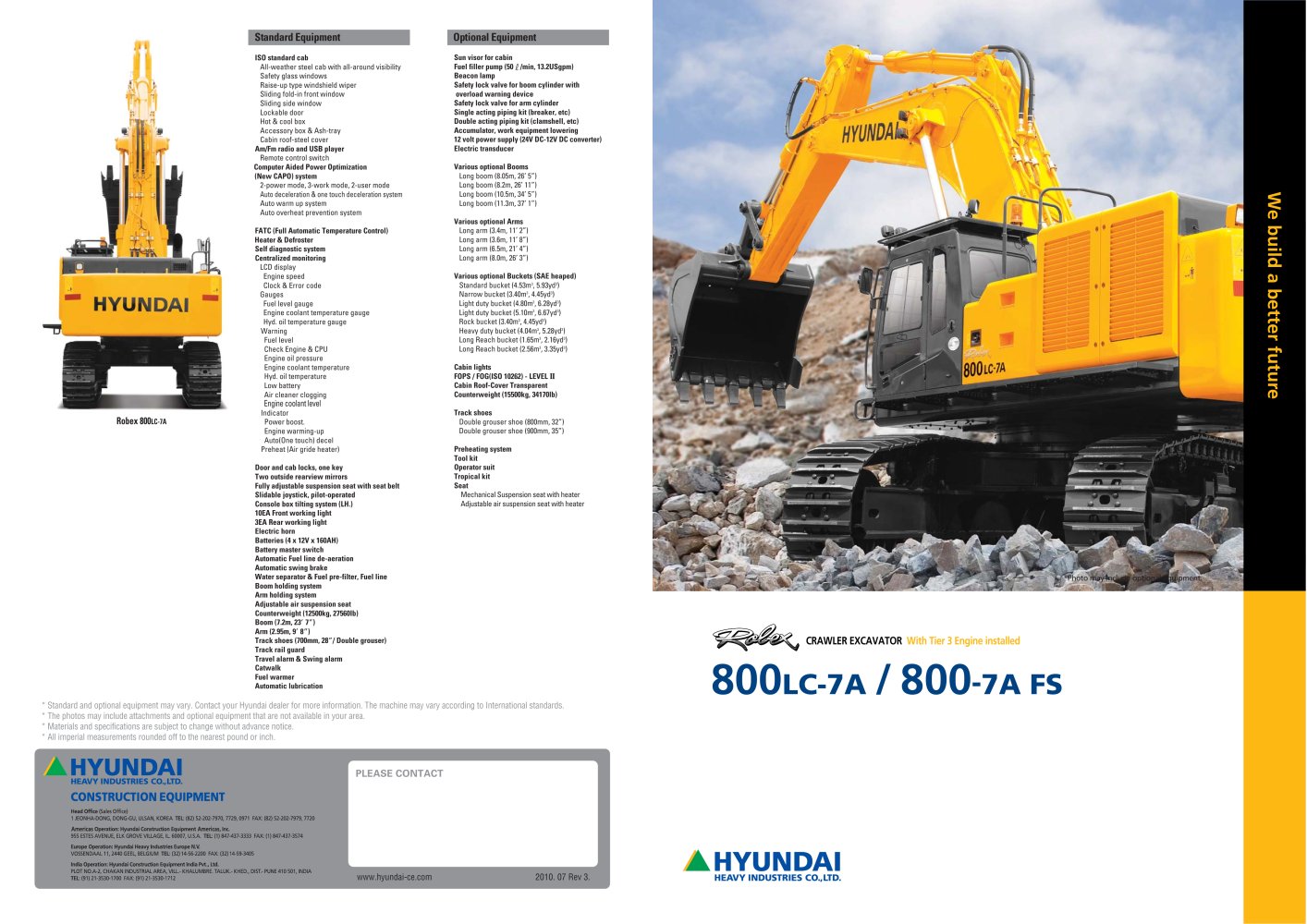

Optional Equipment visibility mode system Control) seat belt line grouser) Sun visor for cabin Fuel filler pump (50 /min, 13.2USgpm) Beacon lamp Safety lock valve for boom cylinder with overload warning device Safety lock valve for arm cylinder Single acting piping kit (breaker, etc) Double acting piping kit (clamshell, etc) Accumulator, work equipment lowering 12 volt power supply (24V DC-12V DC converter) Electric transducer Various optional Booms Long boom (8.05m, 26’ 5”) Long boom (8.2m, 26’ 11”) Long boom (10.5m, 34’ 5”) Long boom (11.3m, 37’ 1”) Various optional Arms Long arm (3.4m, 11’ 2”) Long arm (3.6m, 11’ 8”) Long arm (6.5m, 21’ 4”) Long arm (8.0m, 26’ 3”) Various optional Buckets (SAE heaped) Standard bucket (4.53m3, 5.93yd3) Narrow bucket (3.40m3, 4.45yd3) Light duty bucket (4.80m3, 6.28yd3) Light duty bucket (5.10m3, 6.67yd3) Rock bucket (3.40m3, 4.45yd3) Heavy duty bucket (4.04m3, 5.28yd3) Long Reach bucket (1.65m3, 2.16yd3) Long Reach bucket (2.56m3, 3.35yd3) Cabin lights FOPS / FOG(ISO 10262) - LEVEL II Cabin Roof-Cover Transparent Counterweight (15500kg, 34170lb) Track shoes Double grouser shoe (800mm, 32”) Double grouser shoe (900mm, 35”) Preheating system Tool kit Operator suit Tropical kit Seat Mechanical Suspension seat with heater Adjustable air suspension seat with heater 800LC-7A / 800-7A FS CRAWLER EXCAVATOR With Tier 3 Engine installed PLEASE CONTACT hyundai-ce.com 2010. 07 Rev 3. machine may vary according to International standards. *Photo may include optional equipment.
Open the catalog to page 1Power, Reliability. now begun. 800-7A FS HYUNDAI CONSTRUCTION EQUIPMENT 02 / 03 *Photo may include optional equipment.
Open the catalog to page 23 Operator’s Comfort is Foremost. Exceeds Industry Standards. 1 2 3 Wide, Comfortable Operating Space FOPS(Falling Object Protective Structure) FOG(Falling Object Guard) Dial Type Engine Speed Switch and / Key Switch 1 2 3 Radio / USB Player & Remote Control Switch HYUNDAI CONSTRUCTION EQUIPMENT 04 / 05 *Photo may include optional equipment.
Open the catalog to page 3Highly Sensitive Joystick and Easy Entrance New joystick grips for precise control have been equipped with 4 switches. Easy-to-Reach Control Panels Switches and other essential controls are located near the operator. This helps keep operator movement to a minimum, enhancing control with less operator fatigue. Rear Emergency Exit Window Rear Exit Window is designed with easy exit for operator's safety. Raise-up Wiper and Cabin Lights Raise-up wiper has enhanced for the better front view. Cabin Lights enhances safety by brightly lighting the surroundings during Left night work(optional) Right...
Open the catalog to page 4The six cylinders, turbocharged, 4 cycle, Charger air cooled engine is built for power, reliability, economy and low emissions. This engine meets Tier 3 emissions regulations. CUMMINS QSX15 Engine Setting the standard in clean, efficient power. The QSX15 features dual overhead cams for superior performance. The first cam drives up to 30,000 psi (2,000 bar) of fuel injection for cleaner, more powerful combustion. The second cam operates the intake and exhaust valves, with a separate set of lobes specifically designed to operate the optional interbrake,TM capable of up to 400hp (298kW)....
Open the catalog to page 5Pump increased. Large Tool box for Extra Storage and Auto Grease Pump and Master Key System Easy Access for Servicing. Maintain Engine Components cooling and preheating system are provided for optimum and operation, guaranteeing longer life for the engine and components. of the engine and hydraulics is considerably simplified due accessibility. Durability of structure proven through FEM (Finite Element Method) analysis and long term durability test. HYUNDAI CONSTRUCTION EQUIPMENT 10 / 11 *Photo may include optional equipment.
