www.hyundai-ce.com 2009. 10 Rev 6
PLEASE CONTACT
ISO standard cabin
..All-weather steel cab with all-around visibility
..Safety glass windows
..Rise-up type windshield wiper
..Sliding fold-in front window
..Sliding side window
..Lockable door
..Hot & cool box
..Accessory box & Ashtray
Computer aided power optimization
(New CAPO) system
..3-power mode
..One touch deceleration system
..Auto warm up system
..Auto overheat prevention system
Self diagnostic system
Starting aid (air grid heater), cold weather
Centralized monitoring
..LCD display
Engine speed
Clock & Error code
..Gauges
Fuel level gauge
Engine coolant temperature gauge
Hyd. oil temperature gauge
..Warning
Fuel level
CPU
Engine oil pressure
Engine coolant temperature
Hyd. oil temperature
Low battery
Air cleaner clogging
..Indicator
Power max
Preheat & Engine warming-up
One touch decel
Door and cab locks, one key
AM/FM radio and cassette
..Radio remote switch
Two outside rearview mirrors
Fully adjustable suspension seat with seat belt
Slidable joystick, pilot-operated
Console box tilting system(LH.)
Three front working lights
Electric horn
Batteries (2 x 12V x 80AH)
Battery master switch
Removable clean out screen for oil cooler
Automatic swing brake
Removable reservoir tank
Water separator & fuel pre-filter, fuel line
Boom holding system
Arm holding system
Counterweight (1,450kg, 3,200lb)
Mono boom (4.3m, 14’ 1”)
Arm (2.26m, 7’ 5”)
Track shoes (500m, 20”)
Track rail guard
Starting aid (air grid heater), cold weather
Fuel warmer
Air-conditioner (5,000 kcal/hr, 20,000 BTU/hr)
Heater & defroster (7,500 Kcal/hr, 30,000 BTU/hr)
Sun visor for cabin inside
Fuel filler pump (35../min, 9.3 US gpm)
Beacon lamp
Safety lock valve for boom cylinder
with overload warning device
Safety lock valve for arm cylinder
Single acting piping kit (breaker, etc)
Double acting piping kit (clamshell, etc)
Accumulator, work equipment lowering
12 volt power outlet (24V DC to 12V DC converter)
Quick coupler
Travel alarm
Various optional arms
..Short arm (1.96 m, 6’ 5”)
..Long arm (2.81 m, 9’ 3”)
Various optional buckets (SAE heaped)
..Standard bucket (0.45 m3, 0.59yd3)
..Narrow bucket (0.30 m3, 0.39yd3)
..Narrow bucket (0.40 m3, 0.52yd3)
..Narrow bucket (0.50 m3, 0.65yd3)
..Light bucket (0.59 m3, 0.77yd3)
Cabin roof-cover transparent
Cabin lights
Track shoes
..Triple grousers shoe (600 mm, 24..)
..Triple grousers shoe (700 mm, 28..)
Lower frame under cover
Tool kit
Operator suit
Special cooling
..Air vent type side door
Engine emergency control cable
Seat
..Adjustable air suspension seat
..Mechanical suspension seat with heater
..Adjustable air suspension seat with heater
Standard Equipment Optional Equipment

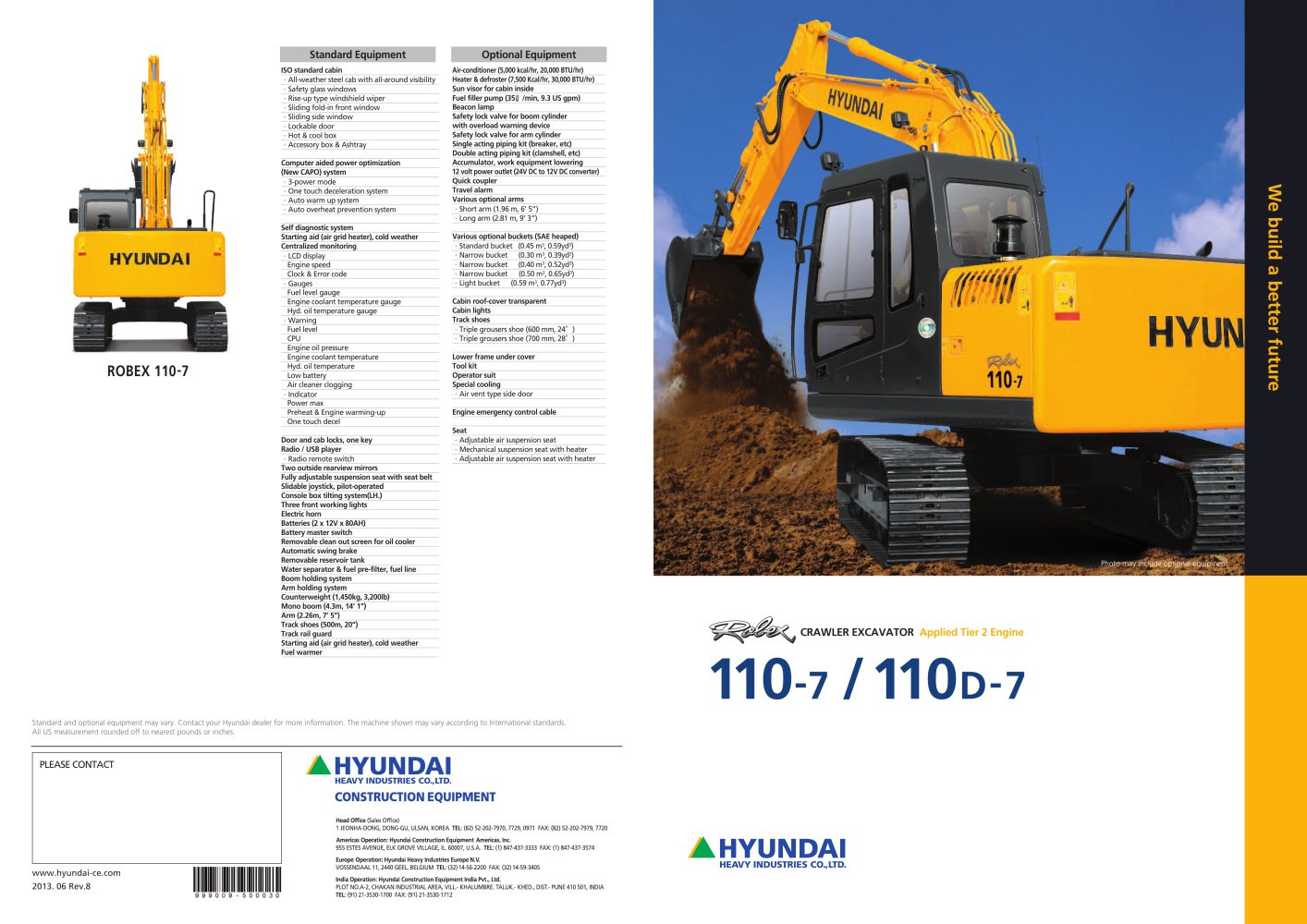

ROBEX 110-7
Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards.
All US measurement rounded off to nearest pounds or inches.
110-7 / 110D-7
..Photo may include optional equipment.
CRAWLER EXCAVATOR Applied Tier 2 Engine
