General Information General Information

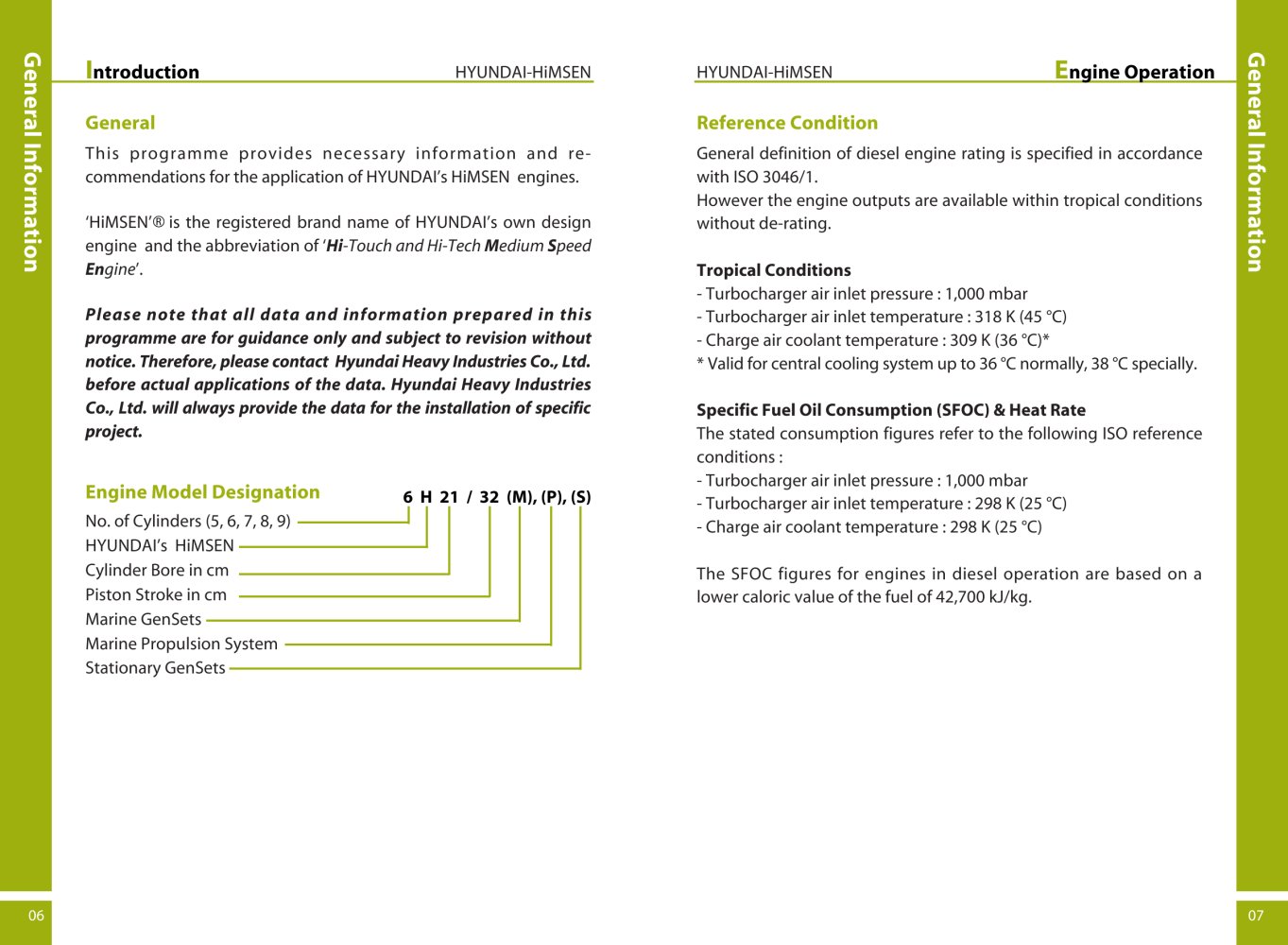

Products Catalog - 55203 I

ntroduction

HYUNDAI-HiMSENHYUNDAI-HiMSEN

E

ngine OperationReference Condition General

This programme provides necessary information and re- commendations for the application of HYUNDAI’s HiMSEN engines.‘HiMSEN’ is the registered brand name of HYUNDAI’s own designengine and the abbreviation of ‘ General definition of diesel engine rating is specified in accordancewith ISO 3046/1. However the engine outputs are available within tropical conditions without de-rating. Tropical Conditions Specific Fuel Oil Consumption (SFOC) & Heat Rate - Turbocharger air inlet pressure : 1,000 mbar - Turbocharger air inlet temperature : 318 K (45 °C) - Charge air coolant temperature : 309 K (36 °C)* * Valid for central cooling system up to 36 °C normally, 38 °C specially. The stated consumption figures refer to the following ISO reference conditions : - Turbocharger air inlet pressure : 1,000 mbar - Turbocharger air inlet temperature : 298 K (25 °C) - Charge air coolant temperature : 298 K (25 °C)The SFOC figures for engines in diesel operation are based on alower caloric value of the fuel of 42,700 kJ/kg.
R Hi -Touch and Hi-Tech M edium S peed En gine ’. Please note that all data and information prepared in thisprogramme are for guidance only and subject to revision without notice. Therefore, please contact Hyundai Heavy Industries Co., Ltd. before actual applications of the data. Hyundai Heavy Industries Co., Ltd. will always provide the data for the installation of specific project.

Engine Model Designation

6 H 21 / 32 (M), (P), (S) No. of Cylinders (5, 6, 7, 8, 9) HYUNDAI’s HiMSENCylinder Bore in cm Piston Stroke in cm Marine GenSets Marine Propulsion System Stationary GenSets
06 07
