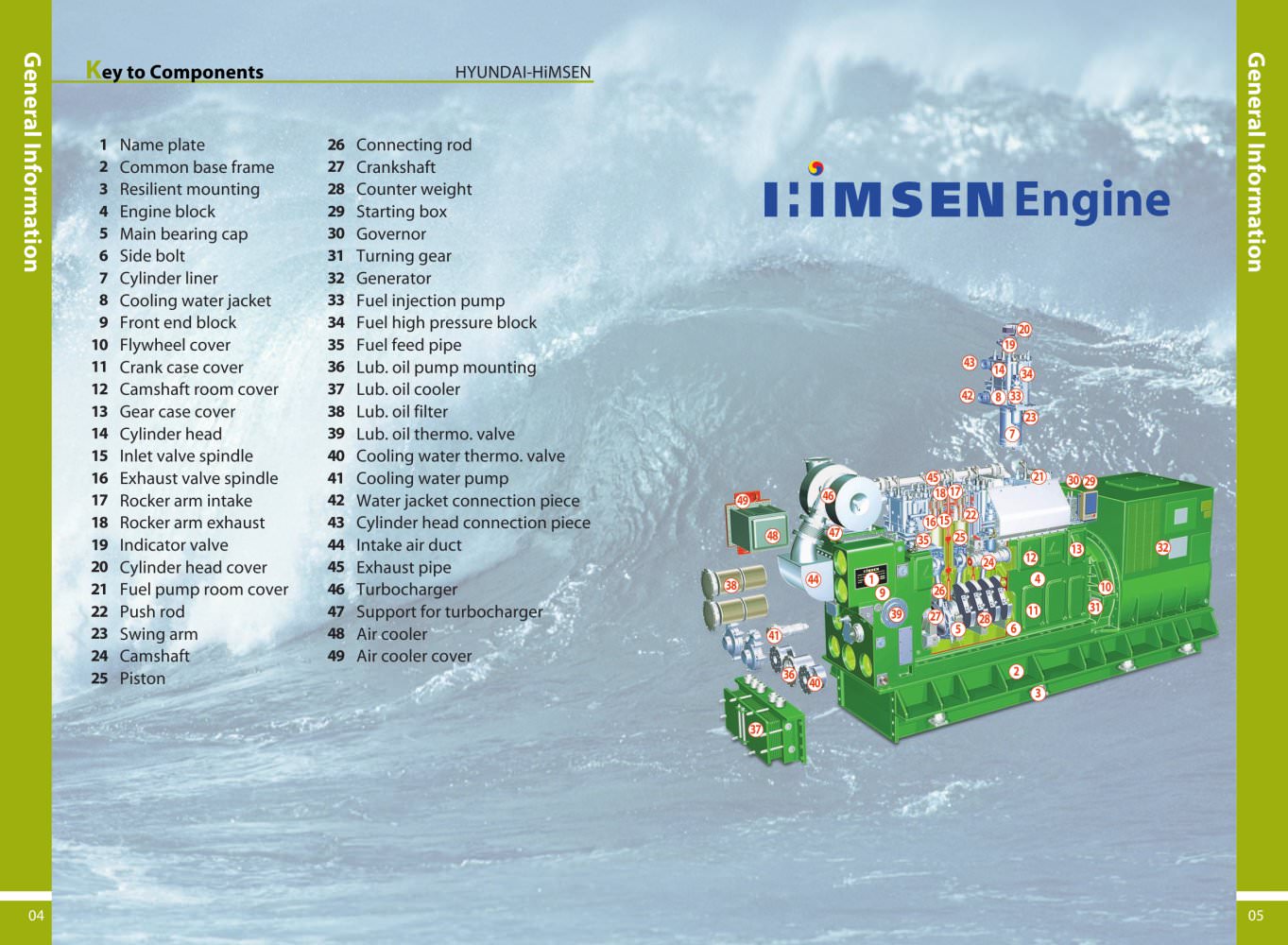

HYUNDAI-HiMSEN


1	Name plate	26	Connecting rod
2	Common base frame	27	Crankshaft
3	Resilient mounting	28	Counter weight
4	Engine block	29	Starting box
5	Main bearing cap	30	Governor
6	Side bolt	31	Turning gear
7	Cylinder liner	32	Generator
8	Cooling water jacket	33	Fuel injection pump
9	Front end block	34	Fuel high pressure block
10	Flywheel cover	35	Fuel feed pipe
11	Crank case cover	36	Lub. oil pump mounting
12	Camshaft room cover	37	Lub. oil cooler
13	Gear case cover	38	Lub. oil filter
14	Cylinder head	39	Lub. oil thermo. valve
15	Inlet valve spindle	40	Cooling water thermo. valve
16	Exhaust valve spindle	41	Cooling water pump
17	Rocker arm intake	42	Water jacket connection piece
18	Rocker arm exhaust	43	Cylinder head connection piece
19	Indicator valve	44	Intake air duct
20	Cylinder head cover	45	Exhaust pipe
21	Fuel pump room cover	46	Turbocharger
22	Push rod	47	Support for turbocharger
23	Swing arm	48	Air cooler
24	Camshaft	49	Air cooler cover
25	Piston
