HSL650 Series
3Pages

{{requestButtons}}

Catalog excerpts

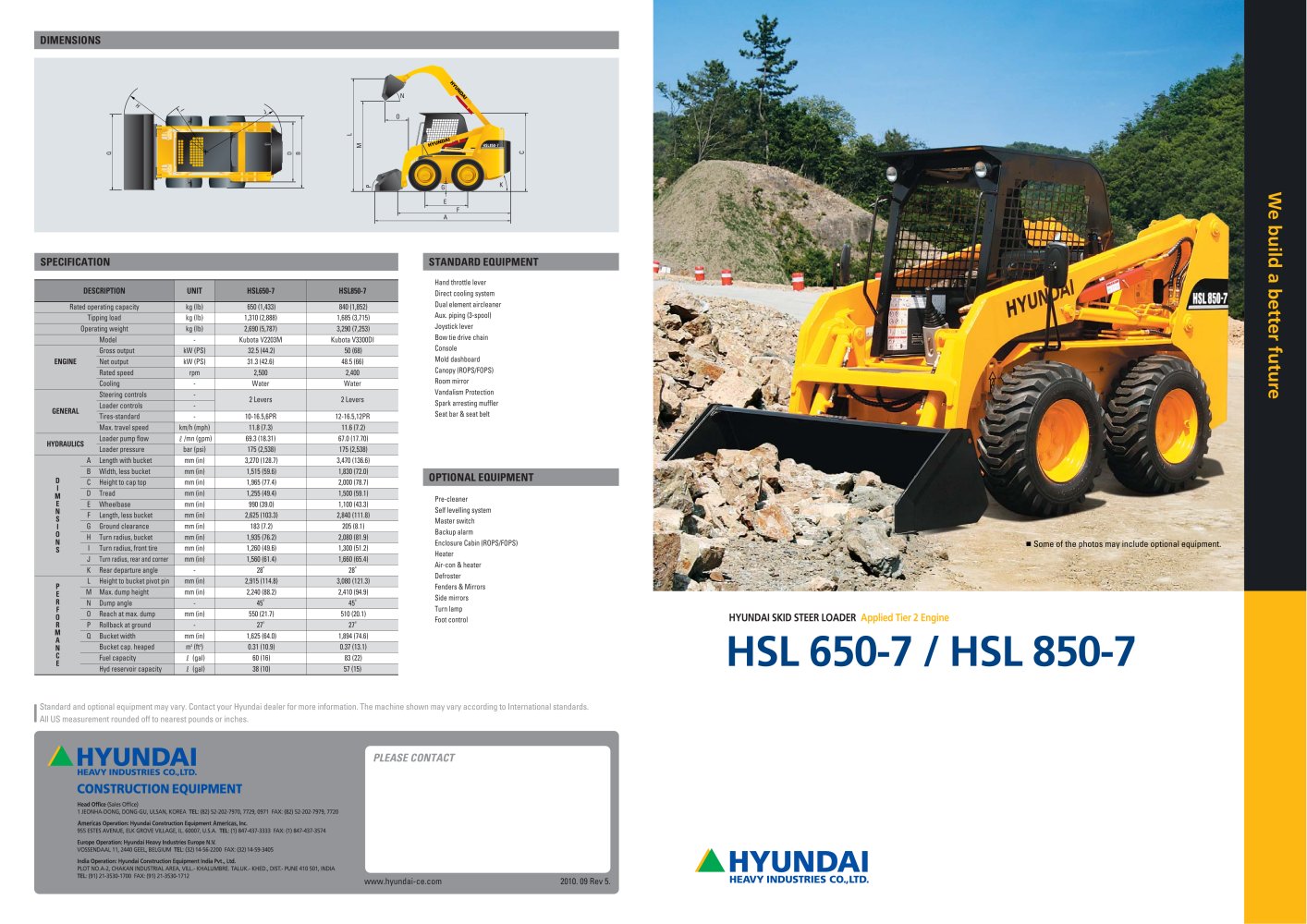

HSL650 Series - 1

Q D B I J H G K E A O N L M P C F STANDARD EQUIPMENT OPTIONAL EQUIPMENT DIMENSIONS SPECIFICATION DESCRIPTION HSL650-7 kg (Ib) kg (Ib) kg (Ib) - kW (PS) kW (PS) rpm - - - - km/h (mph) ../mn (gpm) bar (psi) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) mm (in) - mm (in) mm (in) - mm (in) - mm (in) m3 (ft3) .. (gal) .. (gal) 650 (1,433) 1,310 (2,888) 2,690 (5,787) Kubota V2203M 32.5 (44.2) 31.3 (42.6) 2,500 Water 2 Levers 10-16.5,6PR 11.8 (7.3) 69.3 (18.31) 175 (2,538) 3,270 (128.7) 1,515 (59.6) 1,965 (77.4) 1,255 (49.4) 990 (39.0) 2,625 (103.3) 183 (7.2) 1,935 (76.2) 1,260 (49.6) 1,560 (61.4) 28o 2,915 (114.8) 2,240 (88.2) 45o 550 (21.7) 27o 1,625 (64.0) 0.31 (10.9) 60 (16) 38 (10) HSL850-7 840 (1,852) 1,685 (3,715) 3,290 (7,253) Kubota V3300DI 50 (68) 48.5 (66) 2,400 Water 2 Levers 12-16.5,12PR 11.6 (7.2) 67.0 (17.70) 175 (2,538) 3,470 (136.6) 1,830 (72.0) 2,000 (78.7) 1,500 (59.1) 1,100 (43.3) 2,840 (111.8) 205 (8.1) 2,080 (81.9) 1,300 (51.2) 1,660 (65.4) 28o 3,080 (121.3) 2,410 (94.9) 45o 510 (20.1) 27o 1,894 (74.6) 0.37 (13.1) 83 (22) 57 (15) Rated operating capacity Tipping load Operating weight Model Gross output Net output Rated speed Cooling Steering controls Loader controls Tires-standard Max. travel speed Loader pump flow Loader pressure Length with bucket Width, less bucket Height to cap top Tread Wheelbase Length, less bucket Ground clearance Turn radius, bucket Turn radius, front tire Turn radius, rear and corner Rear departure angle Height to bucket pivot pin Max. dump height Dump angle Reach at max. dump Rollback at ground Bucket width Bucket cap. heaped Fuel capacity Hyd reservoir capacity ENGINE GENERAL HYDRAULICS DIMENSIONS A B C D E F G H I J K PERFORMANCE L M N O P Q Hand throttle lever Direct cooling system Dual element aircleaner Aux. piping (3-spool) Joystick lever Bow tie drive chain Console Mold dashboard Canopy (ROPS/FOPS) Room mirror Vandalism Protection Spark arresting muffler Seat bar & seat belt Pre-cleaner Self levelling system Master switch Backup alarm Enclosure Cabin (ROPS/FOPS) Heater Air-con & heater Defroster Fenders & Mirrors Side mirrors Turn lamp Foot control UNIT Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine shown may vary according to International standards. All US measurement rounded off to nearest pounds or inches. .. Some of the photos may include optional equipment. HYUNDAI SKID STEER LOADER Applied Tier 2 Engine HSL 650-7 / HSL 850-7 www.hyundai-ce.com 2010. 09 Rev 5. PLEASE CONTACT

Open the catalog to page 1
HSL650 Series - 2

HYUNDAI SKID STEER LOADER .. Some of the photos may include optional equipment. 2p 3p Service technicians can get to hydraulic/hydrostatic components quickly by removing two nuts simply and lifting the canopy back. Gas spring for easier lift and locking device are installed. Tilting canopy for easy access Loader cylinder locking bar is provided for service work. Boom Locking system Double locking system for canopy enables service to be safer while canopy is raised up open. Double safety canopy An ideal arrangement of component parts ensure easy access and convenience for maintenance. A...

Open the catalog to page 2
