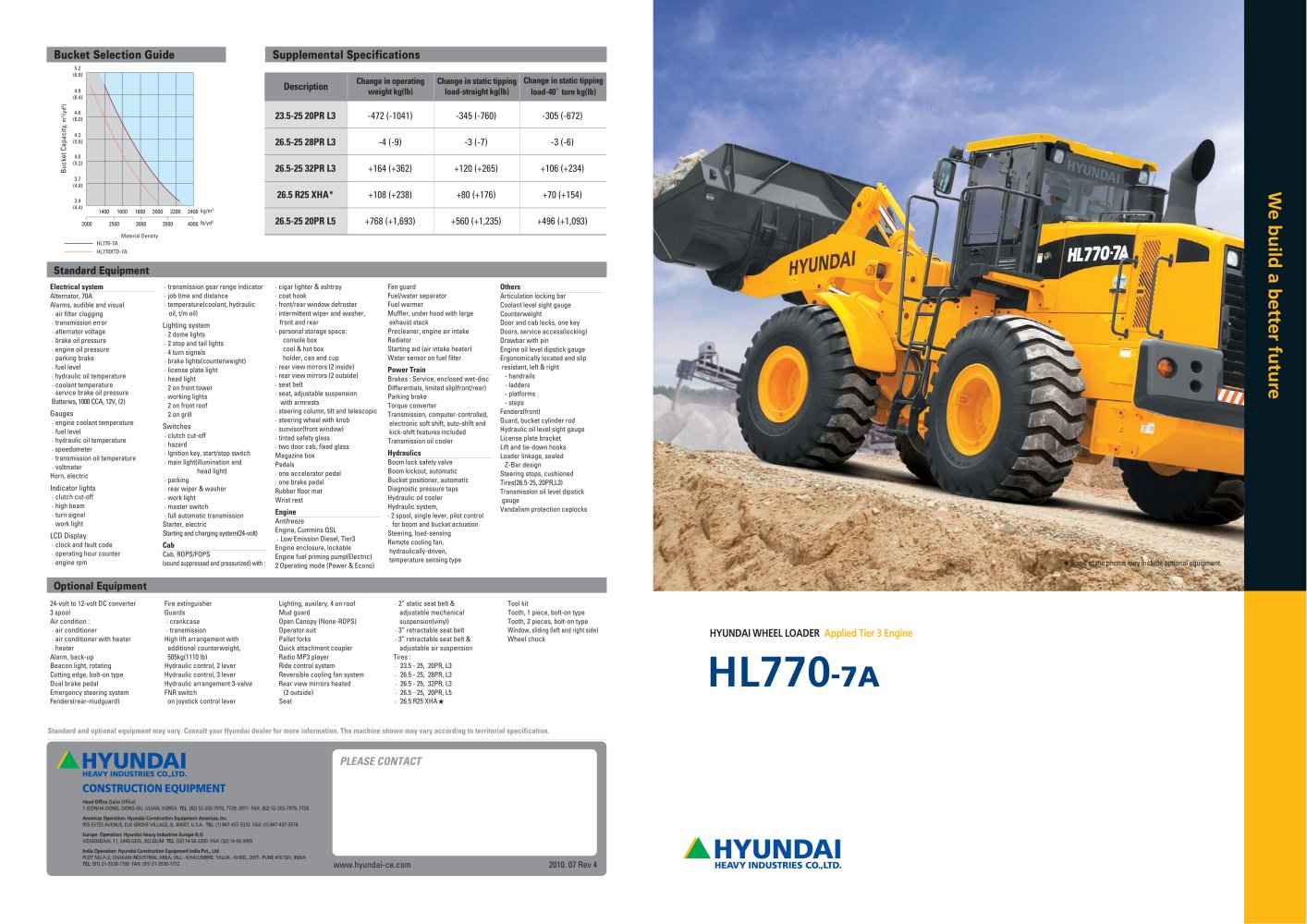

5.2 (6.8) 4.9 (6.4) 4.6 (6.0) 4.3 (5.6) 4.0 (5.2) 3.7 (4.8) 3.4 (4.4) 1400 2000 2500 3000 3500 4000 1600 1800 2000 2200 2400 Material Density HL770-7A HL770XTD-7A kg/m3 lb/yd3 Bucket Capacity, m3 (yd3) Change in operating weight kg(lb) Change in static tipping load-straight kg(lb) Change in static tipping load-40..turn kg(lb) Description 23.5-25 20PR L3 26.5-25 28PR L3 26.5-25 32PR L3 26.5 R25 XHA.. 26.5-25 20PR L5 -472 (-1041) -4 (-9) +164 (+362) +108 (+238) +768 (+1,693) -345 (-760) -3 (-7) +120 (+265) +80 (+176) +560 (+1,235) -305 (-672) -3 (-6) +106 (+234) +70 (+154) +496 (+1,093) Bucket Selection Guide Supplemental Specifications Standard Equipment Electrical system Alternator, 70A Alarms, audible and visual . air filter clogging . transmission error . alternator voltage . brake oil pressure . engine oil pressure . parking brake . fuel level . hydraulic oil temperature . coolant temperature . service brake oil pressure Batteries, 1000 CCA, 12V, (2) Gauges . engine coolant temperature . fuel level . hydraulic oil temperature . speedometer . transmission oil temperature . voltmeter Horn, electric Indicator lights . clutch cut-off . high beam . turn signal . work light LCD Display . clock and fault code . operating hour counter . engine rpm . transmission gear range indicator . job time and distance . temperature(coolant, hydraulic oil, t/m oil) Lighting system . 2 dome lights . 2 stop and tail lights . 4 turn signals . brake lights(counterweight) . license plate light . head light 2 on front tower . working lights 2 on front roof 2 on grill Switches . clutch cut-off . hazard . lgnition key, start/stop switch . main light(illumination and head light) . parking . rear wiper & washer . work light . master switch . full automatic transmission Starter, electric Starting and charging system(24-volt) Cab Cab, ROPS/FOPS (sound suppressed and pressurized) with : . cigar lighter & ashtray . coat hook . front/rear window defroster . intermittent wiper and washer, front and rear . personal storage space: console box cool & hot box holder, can and cup . rear view mirrors (2 inside) . rear view mirrors (2 outside) . seat belt . seat, adjustable suspension with armrests . steering column, tilt and telescopic . steering wheel with knob . sunvisor(front window) . tinted safety glass . two door cab, fixed glass Magazine box Pedals . one accelerator pedal . one brake pedal Rubber floor mat Wrist rest Engine Antifreeze Engine, Cummins QSL . Low Emission Diesel, Tier3 Engine enclosure, lockable Engine fuel priming pump(Electric) 2 Operating mode (Power & Econo) Fan guard Fuel/water separator Fuel warmer Muffler, under hood with large exhaust stack Precleaner, engine air intake Radiator Starting aid (air intake heater) Water sensor on fuel filter Power Train Brakes : Service, enclosed wet-disc Differentials, limited slip(front/rear) Parking brake Torque converter Transmission, computer-controlled, electronic soft shift, auto-shift and kick-shift features included Transmission oil cooler Hydraulics Boom lock safety valve Boom kickout, automatic Bucket positioner, automatic Diagnostic pressure taps Hydraulic oil cooler Hydraulic system, . 2 spool, single lever, pilot control for boom and bucket actuation Steering, load-sensing Remote cooling fan, hydraulically-driven, temperature sensing type Others Articulation locking bar Coolant level sight gauge Counterweight Door and cab locks, one key Doors, service access(locking) Drawbar with pin Engine oil level dipstick gauge Ergonomically located and slip resistant, left & right - handrails - ladders - platforms - steps Fenders(front) Guard, bucket cylinder rod Hydraulic oil level sight gauge License plate bracket Lift and tie-down hooks Loader linkage, sealed Z-Bar design Steering stops, cushioned Tires(26.5-25, 20PR,L3) Transmission oil level dipstick gauge Vandalism protection caplocks 24-volt to 12-volt DC converter 3 spool Air condition : . air conditioner . air conditioner with heater . heater Alarm, back-up Beacon light, rotating Cutting edge, bolt-on type Dual brake pedal Emergency steering system Fenders(rear-mudguard) Fire extinguisher Guards . crankcase . transmission High lift arrangement with additional counterweight, 505kg(1110 lb) Hydraulic control, 2 lever Hydraulic control, 3 lever Hydraulic arrangement 3-valve FNR switch on joystick control lever Lighting, auxilary, 4 on roof Mud guard Open Canopy (None-ROPS) Operator suit Pallet forks Quick attachment coupler Radio MP3 player Ride control system Reversible cooling fan system Rear view mirrors heated (2 outside) Seat . 2” static seat belt & adjustable mechanical suspension(vinyl) . 3” retractable seat belt . 3” retractable seat belt & adjustable air suspension Tires : . 23.5 - 25, 20PR, L3 . 26.5 - 25, 28PR, L3 . 26.5 - 25, 32PR, L3 . 26.5 - 25, 20PR, L5 . 26.5 R25 XHA.. Tool kit Tooth, 1 piece, bolt-on type Tooth, 2 pieces, bolt-on type Window, sliding (left and right side) Wheel chock Optional Equipment Standard and optional equipment may vary. Consult your Hyundai dealer for more information. The machine shown may vary according to territorial specification. HL770-7A .. Some of the photos may include optional equipment. HYUNDAI WHEEL LOADER Applied Tier 3 Engine www.hyundai-ce.com 2010. 07 Rev 4 PLEASE CONTACT
