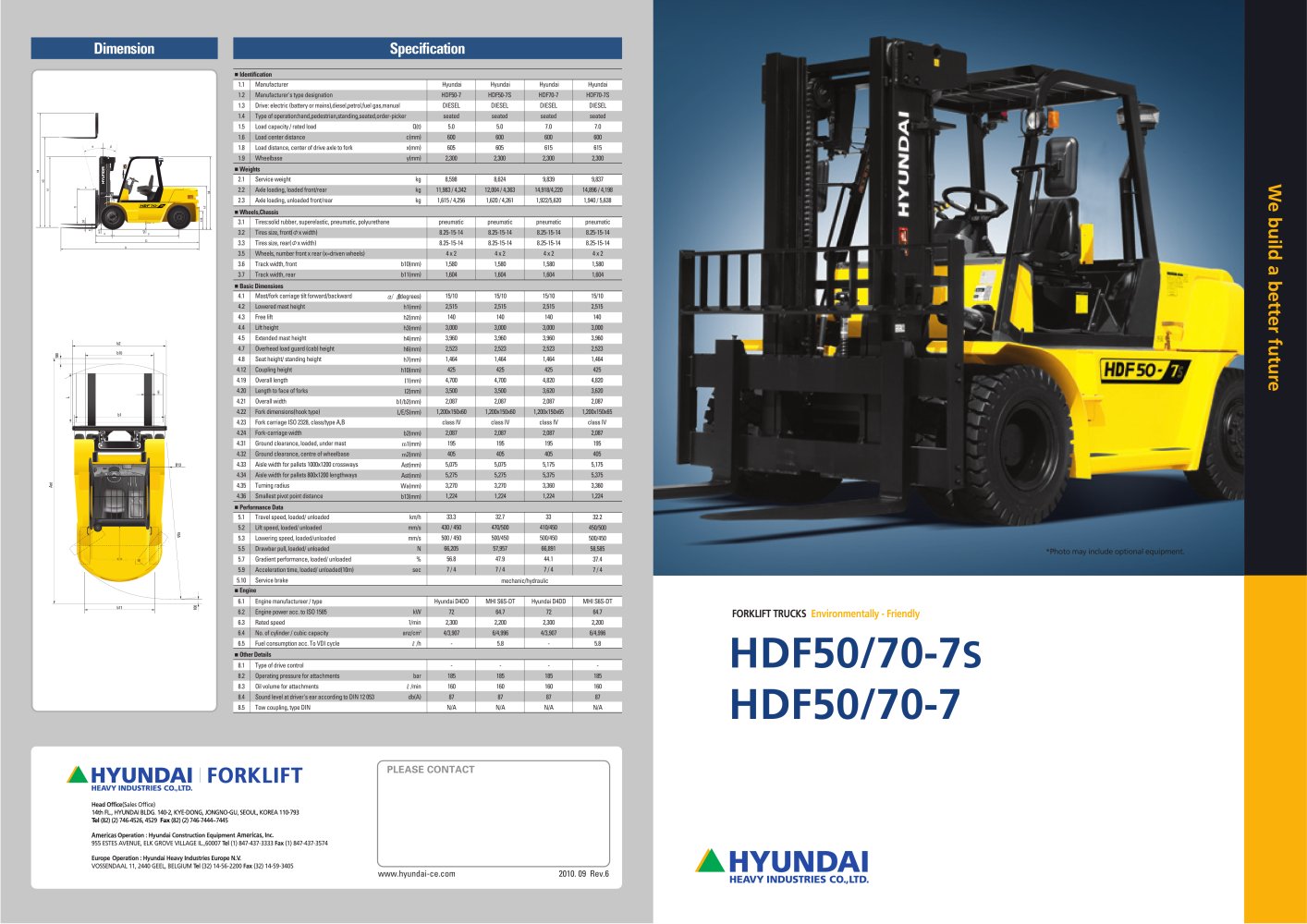

*Photo may include optional equipment. HDF50/70-7S HDF50/70-7 PLEASE CONTACT www.hyundai-ce.com 2010. 09 Rev.6 Dimension Specification .. Identification 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 Manufacturer Manufacturer's type designation Drive: electric (battery or mains),diesel,petrol,fuel gas,manual Type of operation:hand,pedestrian,standing,seated,order-picker Load capacity / rated load Load center distance Load distance, center of drive axle to fork Wheelbase Hyundai HDF50-7 DIESEL seated 5.0 600 605 2,300 Hyundai HDF70-7S DIESEL seated 7.0 600 615 2,300 Q(t) c(mm) x(mm) y(mm) 2.1 2.2 2.3 Service weight Axle loading, loaded front/rear Axle loading, unloaded front/rear 8,598 11,983 / 4,342 1,615 / 4,256 9,837 14,896 / 4,198 1,940 / 5,638 kg kg kg 3.1 3.2 3.3 3.5 3.6 3.7 Tires:solid rubber, superelastic, pneumatic, polyurethane Tires size, front(..x width) Tires size, rear(..x width) Wheels, number front x rear (x=driven wheels) Track width, front Track width, rear pneumatic 8.25-15-14 8.25-15-14 4 x 2 1,580 1,604 pneumatic 8.25-15-14 8.25-15-14 4 x 2 1,580 1,604 b10(mm) b11(mm) 4.1 4.2 4.3 4.4 4.5 4.7 4.8 4.12 4.19 4.20 4.21 4.22 4.23 4.24 4.31 4.32 4.33 4.34 4.35 4.36 Mast/fork carriage tilt forward/backward Lowered mast height Free lift Lift height Extended mast height Overhead load guard (cab) height Seat height/ standing height Coupling height Overall length Length to face of forks Overall width Fork dimensions(hook type) Fork carriage ISO 2328, class/type A,B Fork-carriage width Ground clearance, loaded, under mast Ground clearance, centre of wheelbase Aisle width for pallets 1000x1200 crossways Aisle width for pallets 800x1200 lengthways Turning radius Smallest pivot point distance 15/10 2,515 140 3,000 3,960 2,523 1,464 425 4,700 3,500 2,087 1,200x150x60 class IV 2,087 195 405 5,075 5,275 3,270 1,224 15/10 2,515 140 3,000 3,960 2,523 1,464 425 4,820 3,620 2,087 1,200x150x65 class IV 2,087 195 405 5,175 5,375 3,360 1,224 ........(degrees) h1(mm) h2(mm) h3(mm) h4(mm) h6(mm) h7(mm) h10(mm) I1(mm) I2(mm) b1/b2(mm) L/E/S(mm) b2(mm) m1(mm) m2(mm) Ast(mm) Ast(mm) Wa(mm) b13(mm) 5.1 5.2 5.3 5.5 5.7 5.9 5.10 Travel speed, loaded/ unloaded Lift speed, loaded/ unloaded Lowering speed, loaded/unloaded Drawbar pull, loaded/ unloaded Gradient performance, loaded/ unloaded Acceleration time, loaded/ unloaded(10m) Service brake 33.3 430 / 450 500 / 450 66,205 56.8 7 / 4 mechanic/hydraulic km/h mm/s mm/s N % sec 6.1 6.2 6.3 6.4 6.5 Engine manufactureer / type Engine power acc. to ISO 1585 Rated speed No. of cylinder / cubic capacity Fuel consumption acc. To VDI cycle Hyundai D4DD 72 2,300 4/3,907 - MHI S6S-DT 64.7 2,200 6/4,996 5.8 kW 1/min anz/cm3 ../h 8.1 8.2 8.3 8.4 8.5 Type of drive control Operating pressure for attachments Oil volume for attachments Sound level at driver's ear according to DIN 12 053 Tow coupling, type DIN - 185 160 87 N/A Hyundai HDF50-7S DIESEL seated 5.0 600 605 2,300 8,624 12,004 / 4,363 1,620 / 4,261 pneumatic 8.25-15-14 8.25-15-14 4 x 2 1,580 1,604 15/10 2,515 140 3,000 3,960 2,523 1,464 425 4,700 3,500 2,087 1,200x150x60 class IV 2,087 195 405 5,075 5,275 3,270 1,224 32.7 470/500 500/450 57,957 47.9 7 / 4 MHI S6S-DT 64.7 2,200 6/4,996 5.8 - 185 160 87 N/A Hyundai HDF70-7 DIESEL seated 7.0 600 615 2,300 9,839 14,918/4,220 1,922/5,620 pneumatic 8.25-15-14 8.25-15-14 4 x 2 1,580 1,604 15/10 2,515 140 3,000 3,960 2,523 1,464 425 4,820 3,620 2,087 1,200x150x65 class IV 2,087 195 405 5,175 5,375 3,360 1,224 33 410/450 500/450 66,891 44.1 7 / 4 32.2 450/500 500/450 58,585 37.4 7 / 4 Hyundai D4DD 72 2,300 4/3,907 - - 185 160 87 N/A - 185 160 87 N/A bar ../min db(A) .. Weights .. Wheels,Chassis .. Basic Dimensions .. Performance Data .. Engine .. Other Details FORKLIFT TRUCKS Environmentally - Friendly
