180D-7E
7Pages

Catalog excerpts

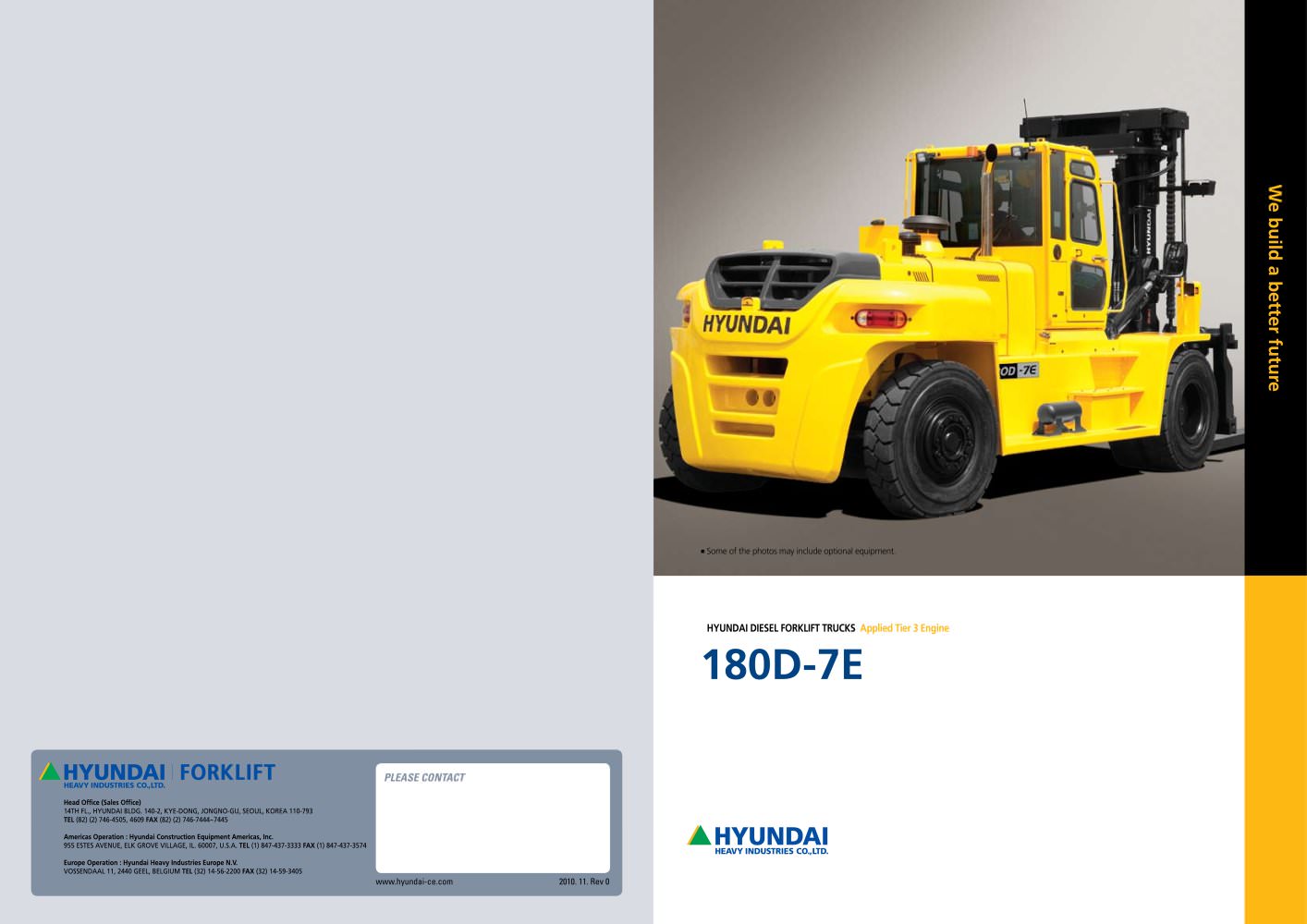

HYUNDAI DIESEL FORKLIFT TRUCKS Applied Tier 3 Engine 180D-7E Some of the photos may include optional equipment. PLEASE CONTACT www.hyundai-ce.com 2010. 11. Rev 0

Open the catalog to page 1

FORKLIFT Excellent Model 02 03 ESL(Engine Start Limit) (Option) Rear View Camera (Option) Load Indicator (Option) Cruise Control Instrument Switch Panel Air Conditioner & Heater (Option) of Big Forklift Truck NEW criterion Hyundai introduces a new line of 7E-series diesel forklift trucks. Excellent power and performance makes your business more profitable. Some of the photos may include optional equipment.

Open the catalog to page 2

04 05 High Power & Performance 194kW/ 2,200rpm 120.4kgf.m/1,400rpm High Power Low Noise 10 B10 B Ability of best, the new master on the job-site! Smooth running, efficiently and ergonomically designed, 180D-7E series are made to meet your needs. The six cylinders turbo-charged engine is built for power, reliability and economy. This engine meets EPA Tier 3 and EU stage IIIA emission regulation. Cummins QSC Engine Powerful Engine Engine Control Mode According to operating load, the operator can select engine mode by changing side panel switch. STD Mode : Fuel reduction mode for light-duty...

Open the catalog to page 3

06 07 80 mm 40° Comfortable Operation Operator friendly gauges and water-resistant monitor panel Easily adjustable suspension seat An attractive and adjustable seat, based on a human engineering design, provides great comfort, safety and durability. (Head Rest - option) High-output Air Conditioner & Heater (Option) An air conditioner with integrated the condenser is mounted on upper side of the cabin to make a wide room in the cabin. And an air conditioner with high-output and heater always provide you with comfortable environment when you work. Rear View Camera (Option) The rear view...

Open the catalog to page 4

08 09 ¡Ø »çÁøÀº Ç¥ÁØÀåº ñ¿Í »óÀÌÇÒ ¼ Endurance & Safety Tilt Lock Drive Lock Lift Lock Danger-free through high durability! Safety and durability are priorities in design of the equipment. Up-to-date Cooling System The minimum fuel consumption and low noise are available by applying hydraulic cooling fan sensing intake air temperature, transmission oil temperature, coolant temperature and hydraulic temperature. OPSS(Operator Presence Sensing System) Control of mast tilting, lifting and lowering is not possible through operation of the appropriate control when the operators is not in the...

Open the catalog to page 5

10 11 Durability Easy Maintenance Centralized design for easy service! An ideal arrangement of component parts ensures easy access and convenience for maintenance. Large Engine Hood Highly accessible engine compartment assures fast and efficient maintenance. Easy Change Air Cleaner This air filter is readily accessible for cleaning or replacement. Cabin Air Fresh Filter The internal pressure is maintained to be slightly higher than that of outside to exclude dust and to reduce noise levels. Compact fuse box for easy inspection Mechanic Friendly Fuel Filter Replacement Highly accessible...

Open the catalog to page 6

12 13 Specifications 2-Stage Limited Free Lift 3-Stage Full Free Lift V300 * V330 V350 V400 V450 V500 V550 V600 V650 V700 TS450 TS500 TS550 TS600 TS650 TS700 3,020 3,320 3,520 4,020 4,520 5,020 5,520 6,020 6,520 7,020 4,515 5,014 5,514 6,014 6,514 7,014 3,250 3,400 3,500 3,750 4,000 4,250 4,500 4,750 5,000 5,250 2,950 3,297 3,464 3,631 3,798 3,965 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 10/10 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 18,000 25,577 25,689 25,764 25,694 26,140...
