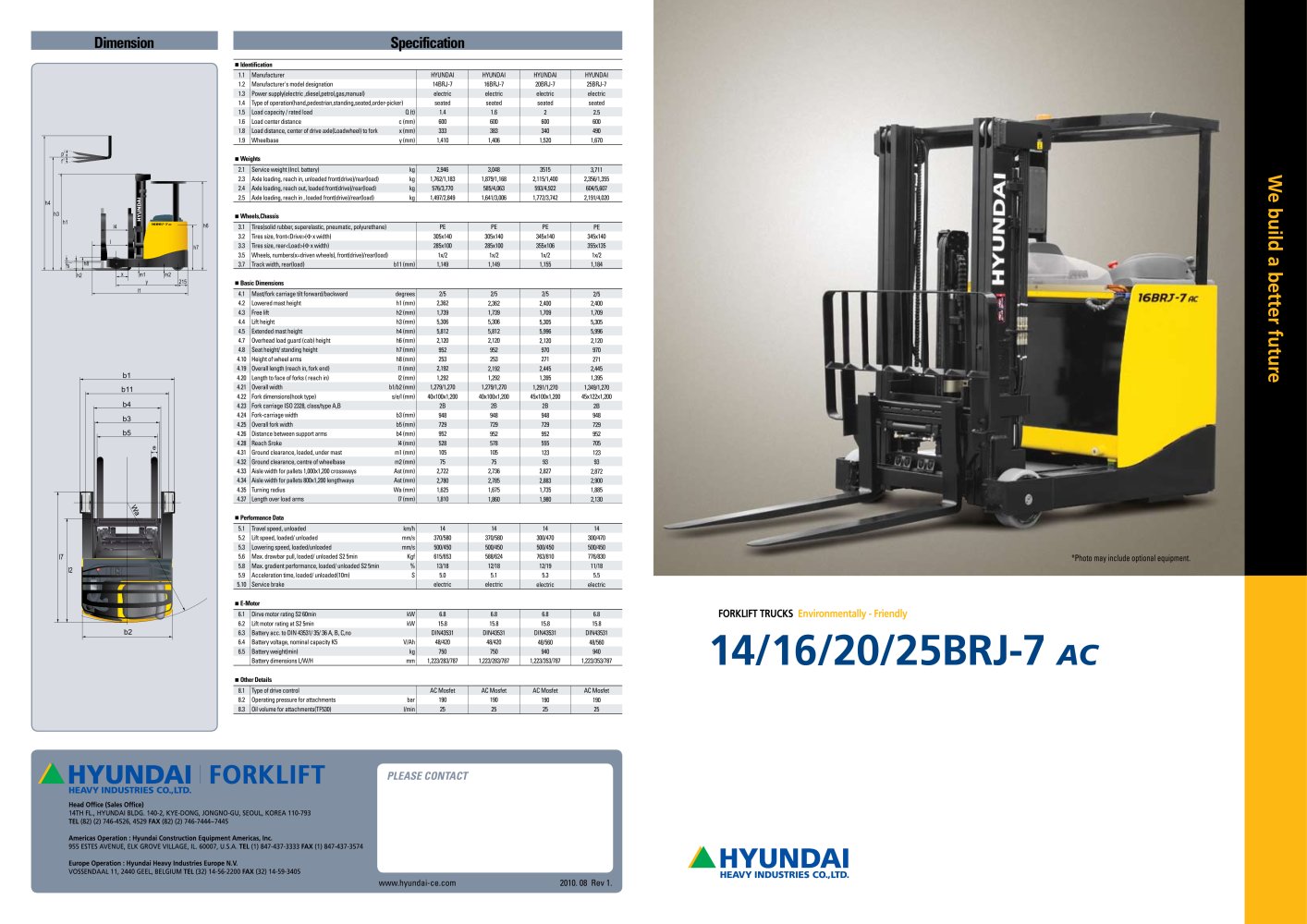

www.hyundai-ce.com 2010. 08 Rev 1. PLEASE CONTACT Dimension Specification b11 b1 b5 b3 b4 b2 h1 l1 y 215 x e l l4 h8 h2 s m1 m2 h6 l2 l7 h7 f O pO h3 h4 Wa b11 b1 b5 b3 b4 b2 h1 l1 y 215 x e l l4 h8 h2 s m1 m2 h6 l2 l7 h7 f O pO h3 h4 Wa Identification 1.1 1.2 1.3 1.4 1.5 1.6 1.8 1.9 Manufacturer Manufacturer's model designation Power supply(electric ,diesel,petrol,gas,manual) Type of operation(hand,pedestrian,standing,seated,order-picker) Load capacity / rated load Load center distance Load distance, center of drive axle(Loadwheel) to fork Wheelbase Q (t) c (mm) x (mm) y (mm) HYUNDAI 14BRJ-7 electric seated 1.4 600 333 1,410 HYUNDAI 16BRJ-7 electric seated 1.6 600 383 1,406 HYUNDAI 20BRJ-7 electric seated 2 600 340 1,520 HYUNDAI 25BRJ-7 electric seated 2.5 600 490 1,670 Basic Dimensions 4.1 4.2 4.3 4.4 4.5 4.7 4.8 4.10 4.19 4.20 4.21 4.22 4.23 4.24 4.25 4.26 4.28 4.31 4.32 4.33 4.34 4.35 4.37 Mast/fork carriage tilt forward/backward Lowered mast height Free lift Lift height Extended mast height Overhead load guard (cab) height Seat height/ standing height Height of wheel arms Overall length (reach in, fork end) Length to face of forks ( reach in) Overall width Fork dimensions(hook type) Fork carriage ISO 2328, class/type A,B Fork-carriage width Overall fork width Distance between support arms Reach Sroke Ground clearance, loaded, under mast Ground clearance, centre of wheelbase Aisle width for pallets 1,000x1,200 crossways Aisle width for pallets 800x1,200 lengthways Turning radius Length over load arms degrees h1 (mm) h2 (mm) h3 (mm) h4 (mm) h6 (mm) h7 (mm) h8 (mm) l1 (mm) l2 (mm) b1/b2 (mm) s/e/l (mm) b3 (mm) b5 (mm) b4 (mm) l4 (mm) m1 (mm) m2 (mm) Ast (mm) Ast (mm) Wa (mm) l7 (mm) 2/5 2,362 1,739 5,306 5,812 2,120 952 253 2,192 1,292 1,279/1,270 40x100x1,200 2B 948 729 952 528 105 75 2,722 2,780 1,625 1,810 2/5 2,362 1,739 5,306 5,812 2,120 952 253 2,192 1,292 1,279/1,270 40x100x1,200 2B 948 729 952 578 105 75 2,736 2,785 1,675 1,860 2/5 2,400 1,709 5,305 5,996 2,120 970 271 2,445 1,395 1,291/1,270 45x100x1,200 2B 948 729 952 555 123 93 2,827 2,883 1,735 1,980 2/5 2,400 1,709 5,305 5,996 2,120 970 271 2,445 1,395 1,349/1,270 45x122x1,200 2B 948 729 952 705 123 93 2,872 2,900 1,885 2,130 Weights 2.1 2.3 2.4 2.5 Service weight (Incl. battery) Axle loading, reach in, unloaded front(drive)/rear(load) Axle loading, reach out, loaded front(drive)/rear(load) Axle loading, reach in , loaded front(drive)/rear(load) kg kg kg kg 2,946 1,762/1,183 576/3,770 1,497/2,849 3,048 1,879/1,168 585/4,063 1,641/3,006 3515 2,115/1,400 593/4,922 1,772/3,742 3,711 2,356/1,355 604/5,607 2,191/4,020 Wheels,Chassis 3.1 3.2 3.3 3.5 3.7 Tires(solid rubber, superelastic, pneumatic, polyurethane) Tires size, front(Ö x width) Tires size, rear(Ö x width) Wheels, numbers(x=driven wheels), front(drive)/rear(load) Track width, rear(load) b11 (mm) PE 305x140 285x100 1x/2 1,149 PE 305x140 285x100 1x/2 1,149 PE 345x140 355x106 1x/2 1,155 PE 345x140 355x135 1x/2 1,184 Performance Data 5.1 5.2 5.3 5.6 5.8 5.9 5.10 Travel speed, unloaded Lift speed, loaded/ unloaded Lowering speed, loaded/unloaded Max. drawbar pull, loaded/ unloaded S2 5min Max. gradient performance, loaded/ unloaded S2 5min Acceleration time, loaded/ unloaded(10m) Service brake km/h mm/s mm/s Kgf % S 14 370/580 500/450 615/653 13/18 5.0 electric 14 370/580 500/450 588/624 12/18 5.1 electric 14 300/470 500/450 763/810 12/19 5.3 electric 14 300/470 500/450 776/830 11/18 5.5 electric *Photo may include optional equipment. Forklift Trucks Environmentally - Friendly 14/16/20/25BRJ-7 AC E-Motor kW kW V/Ah kg mm 6.8 15.8 DIN43531 48/420 750 1,223/283/787 6.8 15.8 DIN43531 48/420 750 1,223/283/787 6.8 15.8 DIN43531 48/560 940 1,223/353/787 6.8 15.8 DIN43531 48/560 940 1,223/353/787 Dirve motor rating S2 60min Lift motor rating at S2 5min Battery acc. to DIN 43531/ 35/ 36 A, B, C,no Battery voltage, nominal capacity K5 Battery weight(min) Battery dimensions L/W/H 6.1 6.2 6.3 6.4 6.5 Other Details Type of drive control Operating pressure for attachments Oil volume for attachments(TF530) bar l/min AC Mosfet 190 25 AC Mosfet 190 25 AC Mosfet 190 25 AC Mosfet 190 25 8.1 8.2 8.3

Open the catalog to page 1

The latest large-capacity hydraulic system reacts quickly during operation and the low noise control valve increases both efficiency and durability. A powerful drive motor and four wheel configuration provide for exceptional stability and excellent gradeability. When restarting after stop on a slope, an anti-roll back function ensure operational safety. State-of-the-art Hydraulic System Excellent Gradeability Operation & Anti Roll Back Compact design suitable for narrow aisle operation guarantees work efficiency and maximum space utilization. Minimum turning radius Control valve Tilt...

Open the catalog to page 2

Comfortable Operation A design based on human engineering relieves fatigue and increases operator's efficiency. The operator is able to work with increased safety and accuracy due to a wider mast view. New High Visibility for Safe Operation A practically designed full suspension seat is fully adjustable for optimum operating position, reducing operating fatigue. Comfortable Operator Environment Minimal operator effort is required for precise,safe and productive control. The operator can control the machine very easily at fingertip. Proportional Fingertip Control A newly designed steering...
