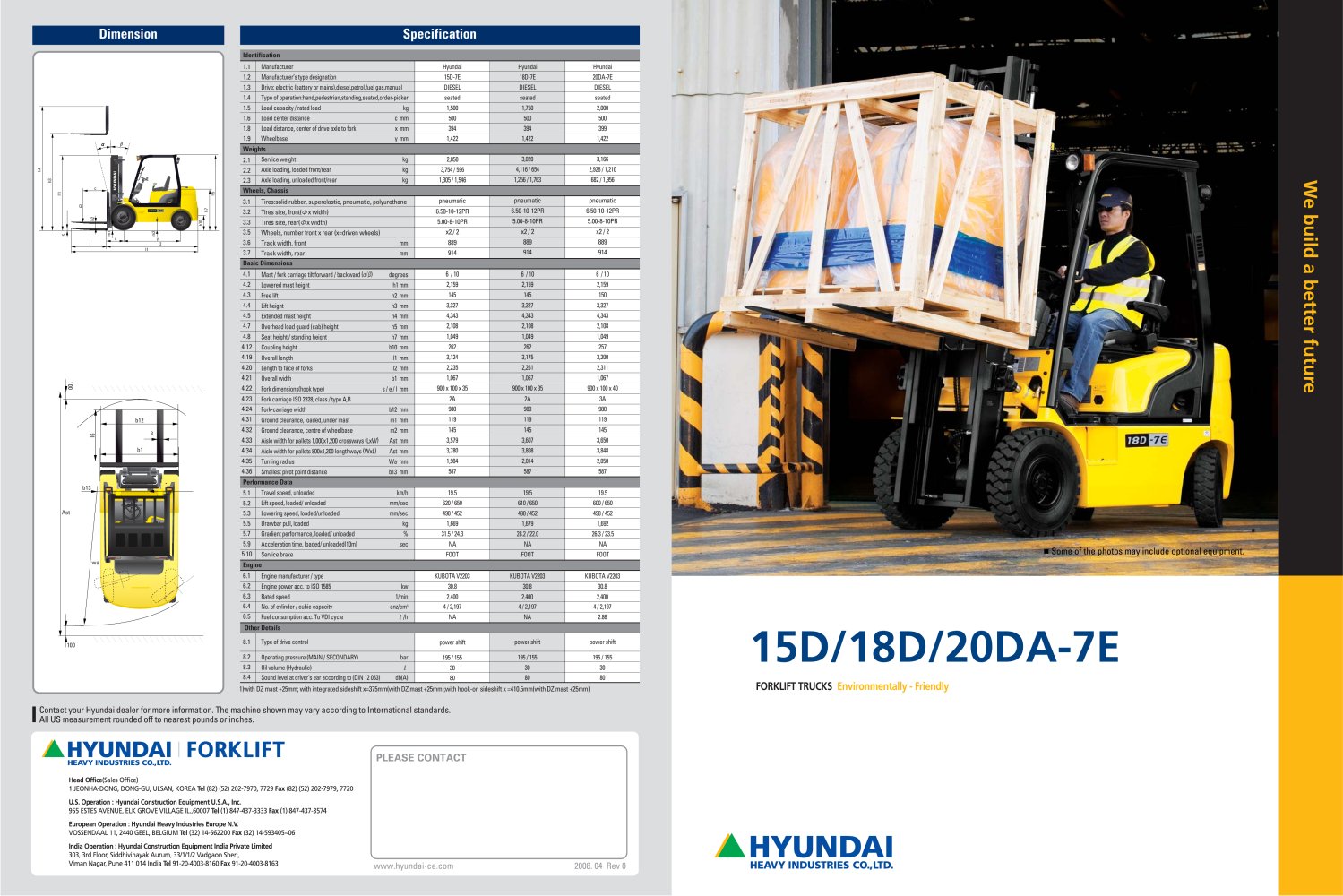

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | Specification | | | | | | Dimension | | | | | | | | | | | | | | Identification | | | | | | | | | | | | | | | | | | | | | 1.1 | Manufacturer | Hyundai | Hyundai | Hyundai | | | | 1.2 | Manufacturer's type designation | 15D-7E | 18D-7E | 20DA-7E | | | | 1.3 | Drive: electric (battery or mains),diesel,petrol,fuel gas,manual | DIESEL | DIESEL | DIESEL | | | | 1.4 | Type of operation:hand,pedestrian,standing,seated,order-picker | seated | seated | seated | | | | 1.5 | Load capacity / rated load | kg | 1,500 | 1,750 | 2,000 | | | | 1.6 | Load center distance | c mm | 500 | 500 | 500 | | | | 1.8 | Load distance, center of drive axle to fork | x mm | 394 | 394 | 399 | | | | 1.9 | Wheelbase | y mm | 1,422 | 1,422 | 1,422 | | | | Weights | | | | | | | 2.1 | Service weight | kg | 2,850 | 3,020 | 3,166 | | | | 2.2 | Axle loading, loaded front/rear | kg | 3,754 / 596 | 4,116 / 654 | 2,926 / 1,210 | | | | 2.3 | Axle loading, unloaded fronl/rear | kg | 1,305 / 1,546 | 1,256 / 1,763 | 682 / 1,956 | | | | Wheels, Chassis | | | | | | | 3.1 | Tires:solid rubber, superelastic, pneumatic, polyurethane | pneumatic | pneumatic | pneumatic | | | | 3.2 | Tires size, front(0x width) | 6.50-10-12PR | 6.50-10-12PR | 6.50-10-12PR | | | | 3.3 | Tires size, rear(0x width) | 5.00-8-10PR | 5.00-8-10PR | 5.00-8-10PR | | | | 3.5 | Wheels, number front x rear (x=driven wheels) | x2 / 2 | x2 / 2 | x2 / 2 | | | | 3.6 | Track width, front | mm | 889 | 889 | 889 | | | | 3.7 | Track width, rear | mm | 914 | 914 | 914 | | | | Basic Dimensions | | | | | | | 4.1 | Mast / fork carriage tilt forward / backward №) | degrees | 6 / 10 | 6 / 10 | 6 / 10 | | | | 4.2 | Lowered mast height | hi mm | 2,159 | 2,159 | 2,159 | | | | 4.3 | Free lift | h2 mm | 145 | 145 | 150 | | | | 4.4 | Lift height | h3 mm | 3,327 | 3,327 | 3,327 | | | | 4.5 | Extended mast height | h4 mm | 4,343 | 4,343 | 4,343 | | | | 4.7 | Overhead load guard (cab) height | h5 mm | 2,108 | 2,108 | 2,108 | | | | 4.8 | Seat height / standing height | h7 mm | 1,049 | 1,049 | 1,049 | | | | 4.12 | Coupling height | h10 mm | 262 | 262 | 257 | | | | 4.19 | Overall length | 11 mm | 3,124 | 3,175 | 3,200 | | | | 4.20 | Length to face of forks | 12 mm | 2,235 | 2,261 | 2,311 | | | | 4.21 | Overall width | b1 mm | 1,067 | 1,067 | 1,067 | | | | 4.22 | Fork dimensions(hook type) | s / e / l mm | 900 x 100 x 35 | 900 x 100 x 35 | 900 x 100 x 40 | | | | 4.23 | Fork carriage ISO 2328, class / type A,B | 2A | 2A | 3A | | | | 4.24 | Fork-carriage width | b12 mm | 980 | 980 | 980 | | | | 4.31 | Ground clearance, loaded, under mast | m1 mm | 119 | 119 | 119 | | | | 4.32 | Ground clearance, centre of wheelbase | m2 mm | 145 | 145 | 145 | | | | 4.33 | Aisle width for pallets 1,000x1,200 crossways (LxW) | Ast mm | 3,579 | 3,607 | 3,650 | | | | 4.34 | Aisle width for pallets 800x1,200 lengthways (WxL) | Ast mm | 3,780 | 3,808 | 3,848 | | | | 4.35 | Turning radius | Wa mm | 1,984 | 2,014 | 2,050 | | | | 4.36 | Smallest pivot point distance | b13 mm | 587 | 587 | 587 | | | | Performance Data | | | | | | | 5.1 | Travel speed, unloaded | km/h | 19.5 | 19.5 | 19.5 | | | | 5.2 | Lift speed, loaded/ unloaded | mm/sec | 620 / 650 | 610 / 650 | 600 / 650 | | | | 5.3 | Lowering speed, loaded/unloaded | mm/sec | 498 / 452 | 498 / 452 | 498 / 452 | | | | 5.5 | Drawbar pull, loaded | kg | 1,669 | 1,679 | 1,692 | | | | 5.7 | Gradient performance, loaded/ unloaded | % | 31.5 / 24.3 | 28.2 / 22.0 | 26.3 / 23.5 | | | | 5.9 | Acceleration time, loaded/ unloaded(10m) | sec | NA | NA | NA | | | | 5.10 | Service brake | FOOT | FOOT | FOOT | | | | Engine | | | | | | | 6.1 | Engine manufacturer / type | KUBOTA V2203 | KUBOTA V2203 | KUBOTA V2203 | | | | 6.2 | Engine power acc. to ISO 1585 | kw | 30.8 | 30.8 | 30.8 | | | | 6.3 | Rated speed | 1/min | 2,400 | 2,400 | 2,400 | | | | 6.4 | No. of cylinder / cubic capacity | anz/cm3 | 4 / 2,197 | 4 / 2,197 | 4 / 2,197 | | | | 6.5 | Fuel consumption acc. To VDI cycle | !/h | NA | NA | 2.86 | | | | Other Details | | | | | | | 8.1 | Type of drive control | power shift | power shift | power shift | | | | 8.2 | Operating pressure (MAIN / SECONDARY) | bar | 195/155 | 195 / 155 | 195 / 155 | | | | 8.3 | Oil volume (Hydraulic) I | 30 | 30 | 30 | | | | 8.4 | Sound level at driver's ear according to (DIN 12 053) | db(A) | 80 | 80 | 80 | | | | | | | | | | | | | | | | | x _y | | | | | | | | | | Ast | | | | | | | | | | 15D/18D/20DA-7E | | | | | | 100 | | | | | | | | | | | | | | FORKLIFT TRUCKS Environmentally - Friendly | | | | | | | | | | 1)with DZ mast +25mm; with integrated sideshift x=375mm(with DZ mast +25mm);with hook-on sideshift x =410.5mm(with DZ mast +25mm) | | | | | | | | | | | | | | IContact your Hyundai dealer for more information. The machine shown may vary according to International standards. | | | | | | | | | | All US measurement rounded off to nearest pounds or inches. | | | | | | | | | | HYUNDAI I FORKLIFT HEAVY INDUSTRIES CO.,LTD. Head Office(Sales Office) 1JEONHA-DONG, DONG-GU, ULSAN, KOREA Tel (82) (52) 202-7970,7729 Fax (82) (52) 202-7979,7720 U.S. Operation : Hyundai Construction Equipment U.S.A. Inc. 955 ESTES AVENUE, ELK GROVE VILLAGE IL.,60007 Tel (1) 847-437-3333 Fax (1) 847-437-3574 European Operation : Hyundai Heavy Industries Europe N.V VOSSENDAAL11,2440 GEEL, BELGIUM Tel (32) 14-562200 Fax (32) 14-593405-06 India Operation : Hyundai Construction Equipment India Private Limited 303,3rd Floor, Siddhivinayak Aurum, 33/1/1/2 Vadgaon Sheri, Viman Nagar, Pune411 014 India Tel 91-20-4003-8160 Fax 91-20-4003-8163 | | | | | | PLEASE CONTACT | | | | | | | | | | HYUNDAI HEAVY INDUSTRIES CO.,LTD. | | | | | | www.hyundai-ce.com | | 2008. 04 Rev 0 | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
