FASTLaser LR

2075

Hypertherm’s patented laser process technologybreakthrough – aptly named FASTLaser (Flow Accelerated Screen Technology
TM ) – significantlyimproves the speed and capacity for laser plate cutting applications.Hypertherm proudly extends its laser product line toinclude the LR2075. Designed to bring the FASTLaser productivity benefits to existing systems, the LR2075 also incorporates many features aimed to maximize cutting time and minimize operating costs. The LR2075 CO
2 laser cutting head allows systemsto expand their flexibility while optimizing cut speed and quality throughout the full daily production cycle.

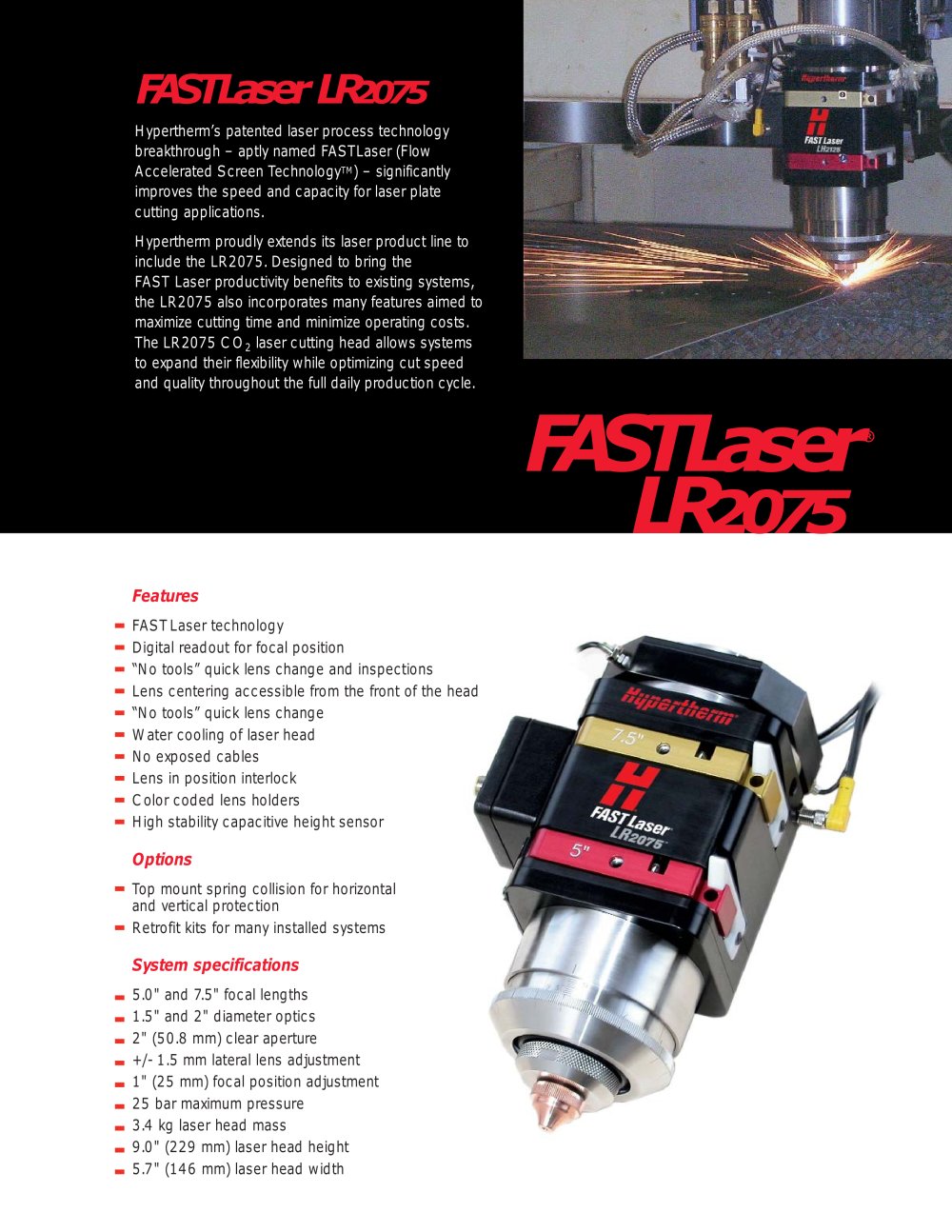

LH2075 Product Brochure - 7237 FASTLaser

®

LR

2075

Features

FASTLaser technologyDigital readout for focal position “No tools” quick lens change and inspections Lens centering accessible from the front of the head “No tools” quick lens change Water cooling of laser head No exposed cables Lens in position interlock Color coded lens holders High stability capacitive height sensor

Options

Top mount spring collision for horizontal and vertical protectionRetrofit kits for many installed systems

System specifications

5.0" and 7.5" focal lengths 1.5" and 2" diameter optics 2" (50.8 mm) clear aperture +/- 1.5 mm lateral lens adjustment 1" (25 mm) focal position adjustment 25 bar maximum pressure 3.4 kg laser head mass 9.0" (229 mm) laser head height 5.7" (146 mm) laser head width
