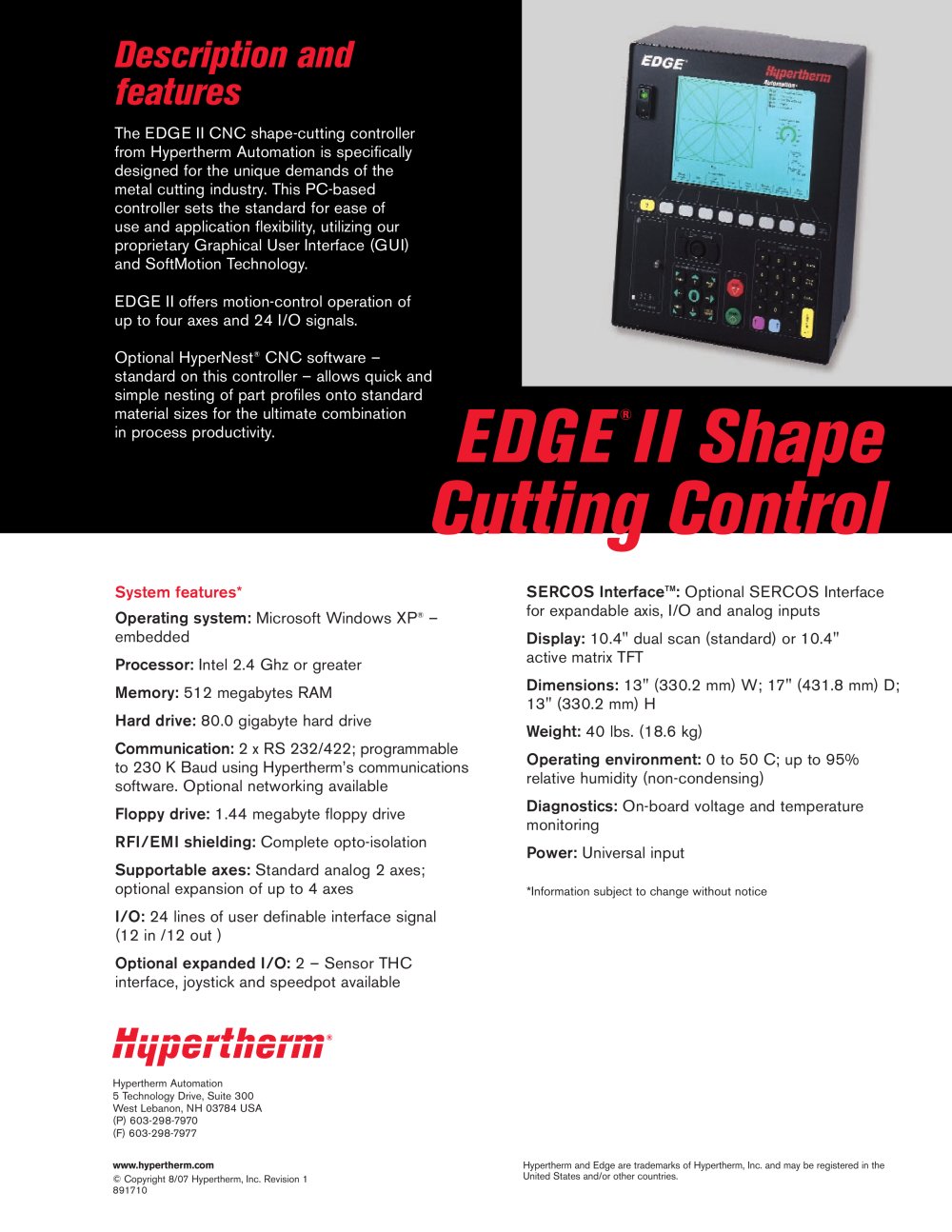

Description andfeatures

The EDGE II CNC shape-cutting controller from Hypertherm Automation is specificallydesigned for the unique demands of themetal cutting industry. This PC-based controller sets the standard for ease of useand application flexibility, utilizing our proprietary Graphical User Interface (GUI) and SoftMotion Technology. EDGE II offers motion-control operation ofup to four axes and 24 I/O signals. Optional HyperNest
® CNC software –standard on this controller – allows quick and simple nesting of part profiles onto standard material sizes for the ultimate combination in process productivity.

EDGEII Product Brochure - 7237 EDGE

®

II ShapeCutting Control

System features*Operating system: SERCOS Interface
TM : Optional SERCOS Interfacefor expandable axis, I/O and analog inputs Microsoft Windows XP
® –embedded Display: 10.4" dual scan (standard) or 10.4"activematrix TFT Processor: Intel 2.4 Ghz or greater Memory: 512 megabytes RAM Dimensions: 13" (330.2 mm) W; 17" (431.8 mm) D;13" (330.2 mm) H Hard drive: 80.0 gigabyte hard drive Weight: 40 lbs. (18.6 kg) Communication: 2 x RS 232/422; programmableto230 K Baud using Hypertherm’s communications software. Optional networking available Operating environment: 0 to 50 C; up to 95%relative humidity (non-condensing) Floppy drive: 1.44 megabyte floppy drive RFI/EMI shielding: Complete opto-isolation Diagnostics: On-board voltage and temperaturemonitoring Supportable axes: Standard analog 2 axes;optional expansion of up to 4 axes Power: Universal input I/O: 24 lines of user definable interface signal(12in /12 out )
*Information subject to change without notice Optional expanded I/O: 2 – Sensor THCinterface, joystick and speedpot available
Hypertherm Automation5 Technology Drive, Suite 300West Lebanon, NH 03784 USA (P) 603-298-7970(F) 603-298-7977 www.hypertherm.com Hypertherm and Edge are trademarks ofHypertherm, Inc. and may be registered in the United States and/or other countries. ©Copyright 8/07 Hypertherm, Inc. Revision 1891710
