LHZ Series

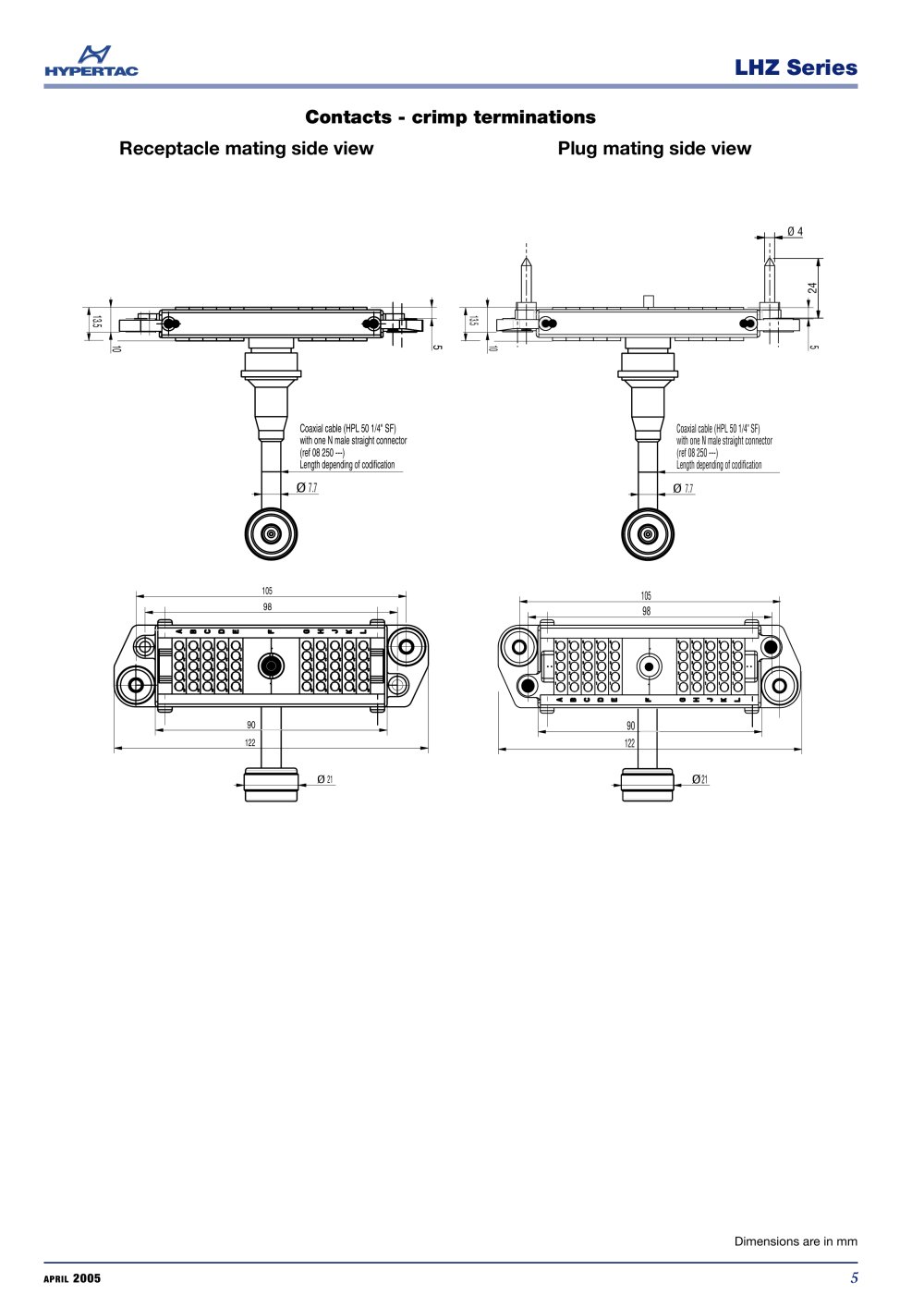

Contacts - crimp terminations Receptacle mating side viewPlug mating side view

Ø4
24 13.5 13.5 5 10 5 10 Coaxial cable (HPL 50 1/4" SF) with one N male straight connector (ref 08 250 ---) Coaxial cable (HPL 50 1/4" SF) with one N male straight connector (ref 08 250 ---) Length depending of codification Length depending of codification

Ø 7.7

Ø 7.7
105 105
98 98
90 90
122 122
Ø 21 Ø 21

Dimensions are in mm
