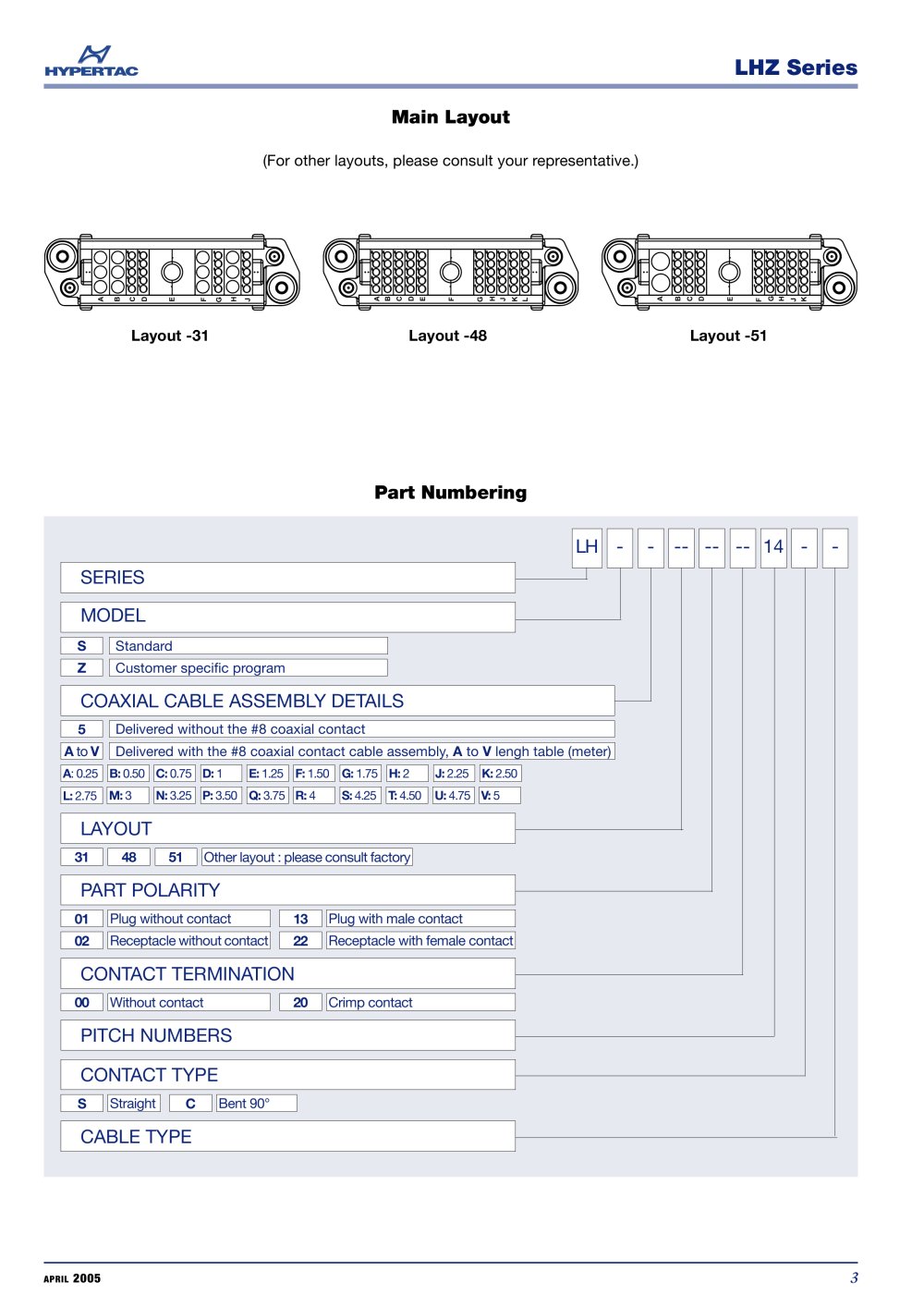

LHZ Series

Main Layout

(For other layouts, please consult your representative.)

ABCDFGHJKL E ABCEFGHJK D ABCDFGHJ E

Layout -31 Layout -48 Layout -51

Part Numbering LH - - -- -- -- 14 - - SERIES MODEL

S Standard Z Customer specific program

COAXIAL CABLE ASSEMBLY DETAILS

5 Delivered without the #8 coaxial contact A to V Delivered with the #8 coaxial contact cable assembly, A to V lengh table (meter)

A : 0.25 B: 0.50 C: 0.75 D: 1 E: 1.25 F: 1.50 G: 1.75 H: 2 J: 2.25 K: 2.50 L: 2.75 M: 3 N: 3.25 P: 3.50 Q: 3.75 R: 4 S: 4.25 T: 4.50 U: 4.75 V: 5

LAYOUT

31 48 51 Other layout : please consult factory

PART POLARITY

01 Plug without contact 13 Plug with male contact 02 Receptacle without contact 22 Receptacle with female contact

CONTACT TERMINATION

00 Without contact 20 Crimp contact

PITCH NUMBERS CONTACT TYPE

S Straight C Bent 90°

CABLE TYPE
