| | | L Series | | |
| | | |
| | | "V" Series | | |
| | | |
| | | | | |
| | | |
| | | □l^H/H-h-R/ e r s | | |

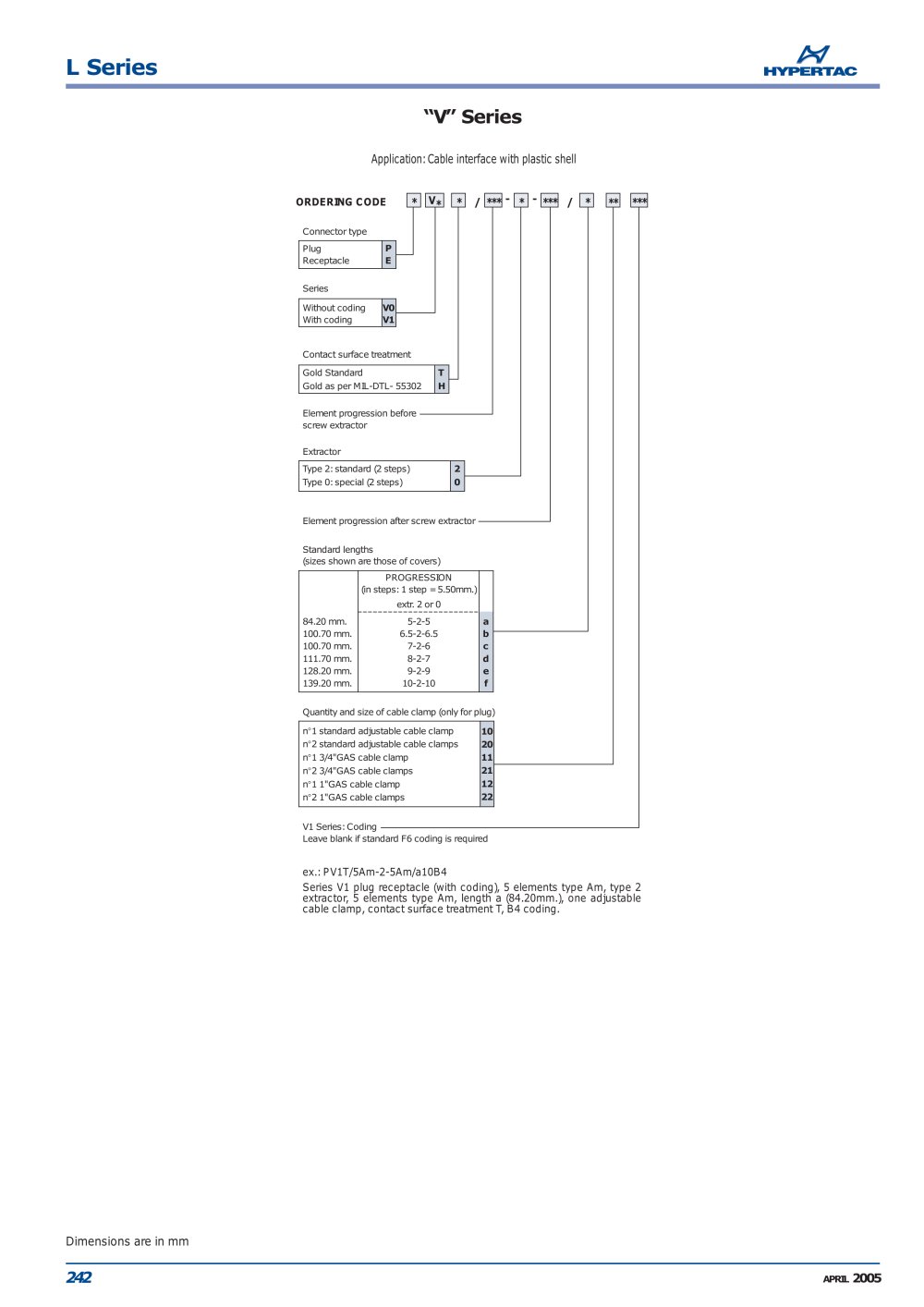

| | | ORDERING CODE | | |
| | | |
| | | |
| | | | | | | | | | Connector type | | | | Plug | P | | | | Receptacle | E | | | | Series | | | | Without coding | V0 | | | | With coding | V1 | | | | | | | | | |
| | | |
| | | Contact surface treatment | | |
| | | |
| | | Gold Standard Gold as per MIL-DTL- 55302 | | |
| | | |
| | | Element progression before -screw extractor | | |
| | | |
| | | Extractor | | |
| | | |
| | | Type 2: standard (2 steps) Type 0: special (2 steps) | | |
| | | |
| | | Element progression after screw extractor - Standard lengths (sizes shown are those of covers) | | |
| | | |
| | | | | | | | | | | | PROGRESSION | | | | | | (in steps: 1 step = 5.50mm.) | | | | | | extr. 2 or 0 | | | | | 84.20 mm. | 5-2-5 | a | | | | 100.70 mm. | 6.5-2-6.5 | b | | | | 100.70 mm. | 7-2-6 | c | | | | 111.70 mm. | 8-2-7 | d | | | | 128.20 mm. | 9-2-9 | e | | | | 139.20 mm. | 10-2-10 | f | | | | Quantity and size of cable clamp (only for plug) | | | | n°1 standard adjustable cable clamp | 10 | | | | n°2 standard adjustable cable clamps | 20 | | | | n°1 3/4"GAS cable clamp | 11 | | | | n°2 3/4"GAS cable clamps | 21 | | | | n°1 1"GAS cable clamp | 12 | | | | n°2 1"GAS cable clamps | 22 | | | | | | | | | | |
| | | |
| | | V1 Series: Coding Leave blank if standard F6 coding is required | | |
| | | |
| | | ex.: PV1T/5Am-2-5Am/a10B4 Series V1 plug receptacle (with coding), 5 elements type Am, type 2 extractor, 5 elements type Am, length a (84.20mm.), one adjustable cable clamp, contact surface treatment T, B4 coding. | | |
| | | |
| | | Dimensions are in mm | | |
| | | |
