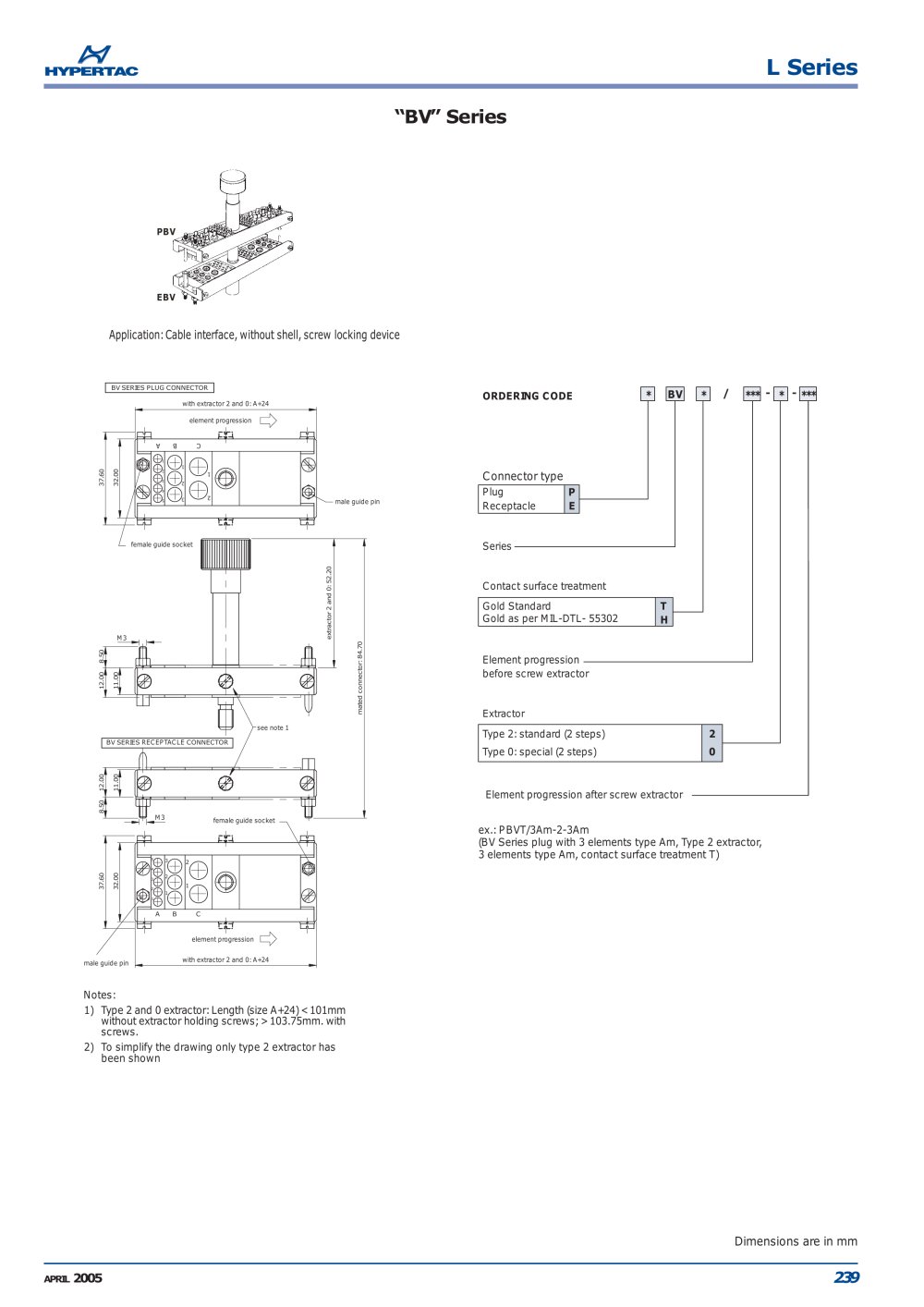

L Series “BV” Series

PBV EBV

Application:Cable interface,without shell,screw locking device

BV SERIES PLUG CONNECTOR

BV*****/* --

with extractor 2 and 0: A+24element progression ORDERING CODE

***

ABC 1 1 1 2 2 3 37.60 32.00

Connector type

4 2 3 5 Plug P
male guide pinfemale guide socket Receptacle E Series Element progressionbefore screw extractor Contact surface treatmentGold StandardGold as per MIL-DTL- 55302 HT
M3 extractor 2 and 0: 52.20 8.50 11.00 12.00 mated connector: 84.70 Extractor see note 1 BV SERIES RECEPTACLE CONNECTOR Type 2: standard (2 steps) 2 Type 0: special (2 steps)
12.00 11.00 Element progression after screw extractor
8.50 M3 female guide socket

ex.: PBVT/3Am-2-3Am(BV Series plug with 3 elements type Am, Type 2 extractor,3 elements type Am, contact surface treatment T)

321 37.60 32.00 12 12 3 4 5 CBA element progression male guide pin with extractor 2 and 0: A+24

Notes:1)Type 2 and 0 extractor: Length (size A+24) < 101mmwithout extractor holding screws; > 103.75mm. with screws.2)To simplify the drawing only type 2 extractor hasbeen shown

Dimensions are in mm

APRIL

2005

239
