L Series

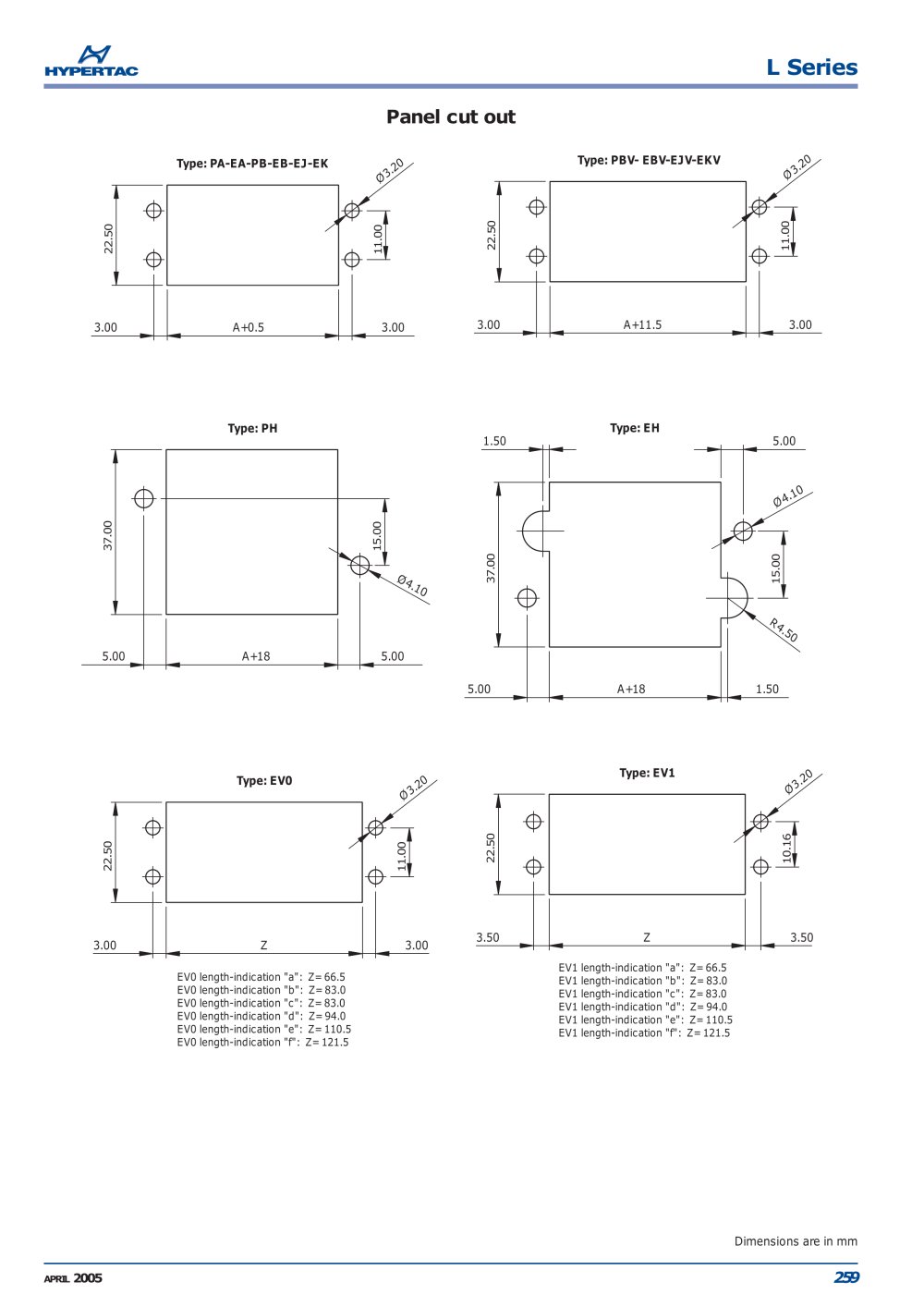

Panel cut out

Type: PA-EA-PB-EB-EJ-EK Type: PBV- EBV-EJV-EKV
Ø3.20 Ø3.20 22.50 11.00 22.50 11.00 3.00 A+0.5 3.00 3.00 A+11.5 3.00 Type: PH Type: EH 1.50 5.00
Ø4.10 37.00 15.00 Ø4.10 37.00 15.00 R4.50 A+185.005.00 5.00 A+18 1.50 Type: EV0 Type: EV1
Ø3.20 Ø3.20 22.50 10.16 22.50 11.00 3.00 Z 3.00 3.50 Z 3.50
EV1 length-indication "a": Z= 66.5EV1 length-indication "b": Z= 83.0 EV1 length-indication "c": Z= 83.0EV1 length-indication "d": Z= 94.0EV1 length-indication "e": Z= 110.5EV1 length-indication "f": Z= 121.5 EV0 length-indication "a": Z= 66.5EV0 length-indication "b": Z= 83.0 EV0 length-indication "c": Z= 83.0 EV0 length-indication "d": Z= 94.0EV0 length-indication "e": Z= 110.5EV0 length-indication "f": Z= 121.5

Dimensions are in mm
