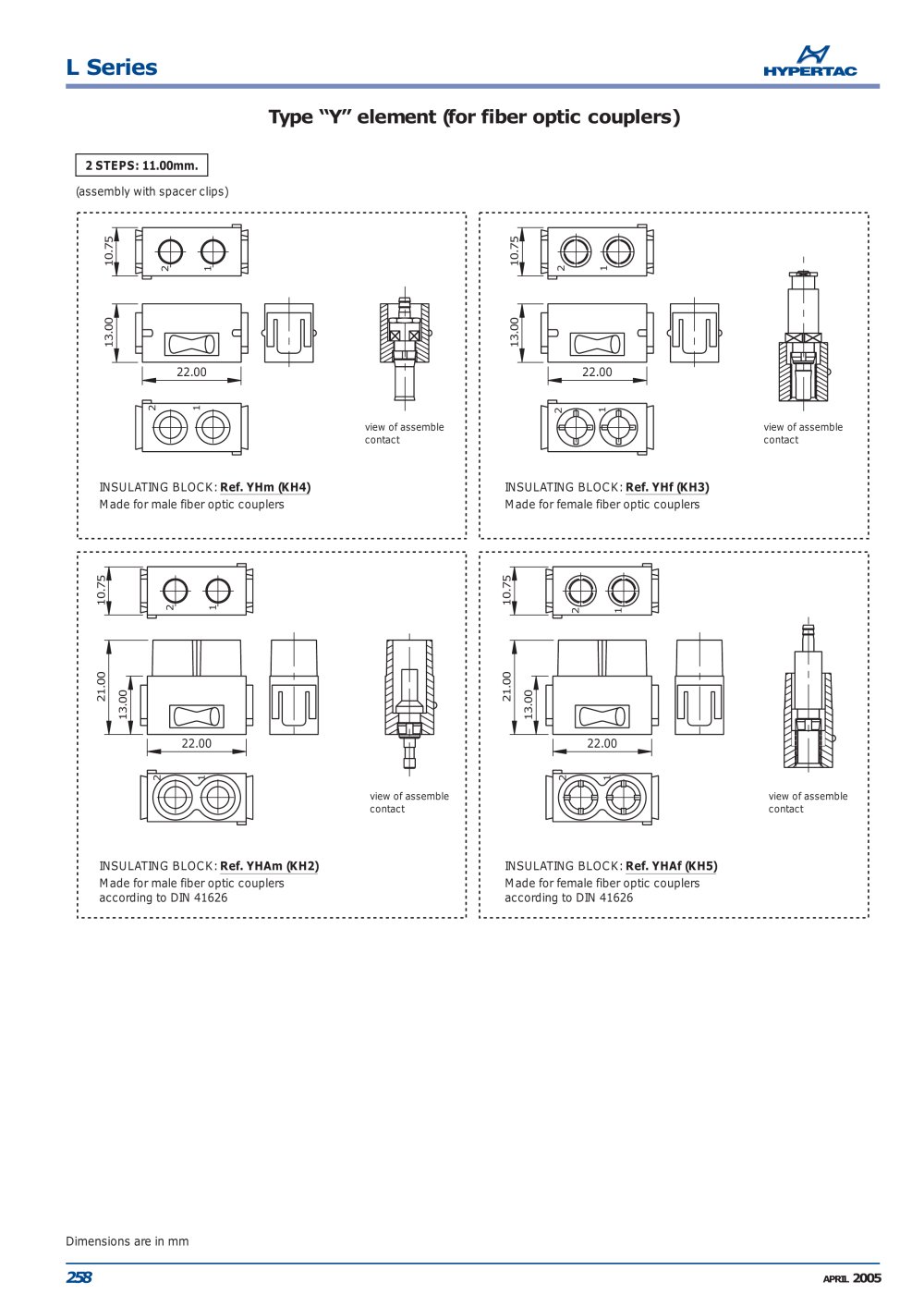

2 STEPS: 11.00mm. (assembly with spacer clips)
10.75 10.75 21 12 13.00 13.00
22.00 22.00
21 21
view of assemblecontact view of assemblecontact
INSULATING BLOCK: Ref. YHm (KH4) Ref. YHf (KH3) Made for male fiber optic couplers Made for female fiber optic couplersINSULATING BLOCK:
10.75 10.75 2 1 21 21.00 21.00 13.00 13.00
22.00 22.00
12 12
view of assemblecontact view of assemblecontact
Ref. YHAm (KH2) INSULATING BLOCK: Ref. YHAf (KH5) Made for male fiber optic couplersaccording to DIN 41626INSULATING BLOCK: according to DIN 41626Made for female fiber optic couplers Dimensions are in mm
258
APRIL
2005
