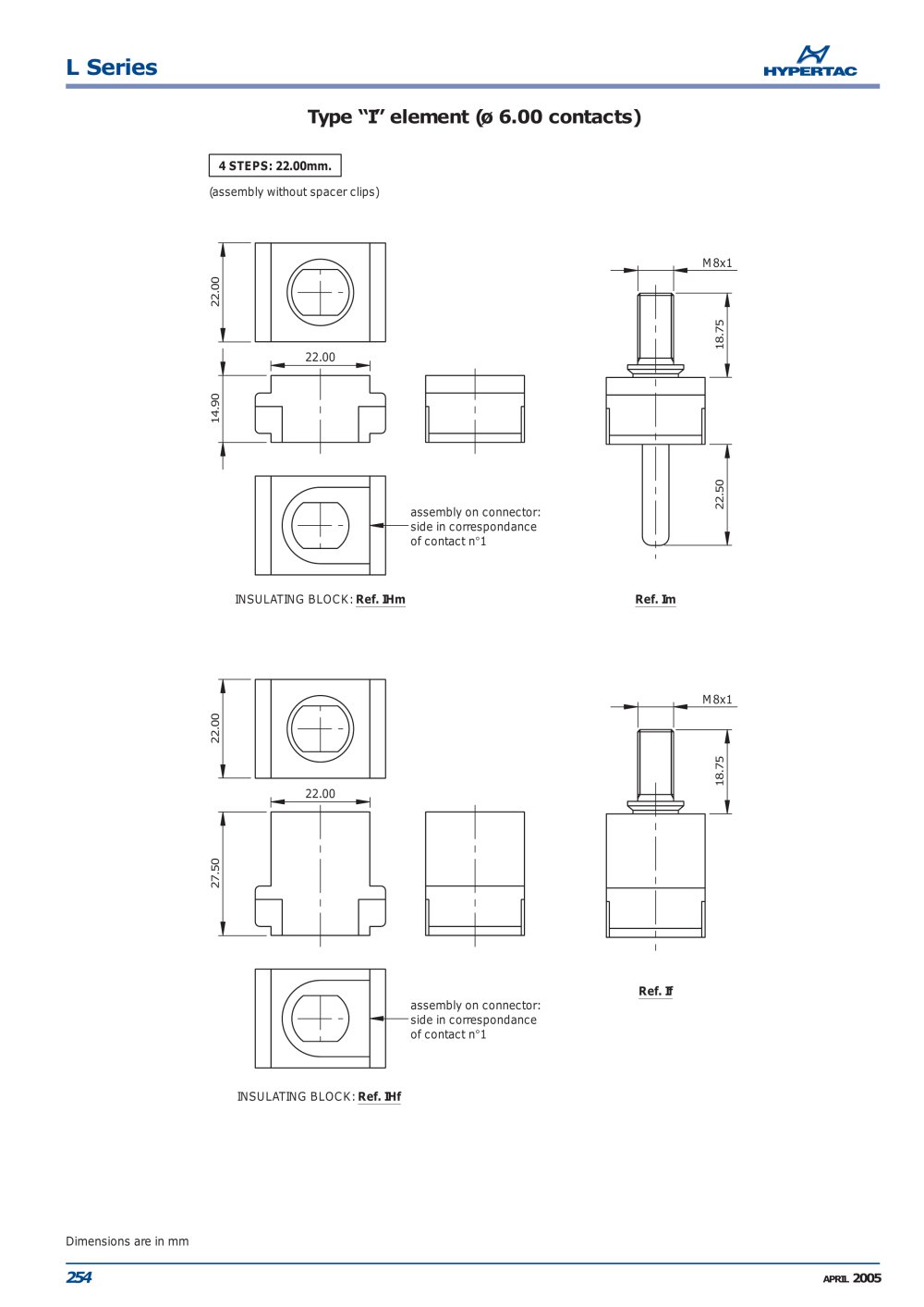

L Series

Type “I” element (ø 6.00 contacts)

4 STEPS: 22.00mm.

(assembly without spacer clips) M8x1
22.00 18.75 22.00
14.90 assembly on connector:side in correspondance
22.50 of contact n ° 1 INSULATING BLOCK: Ref. IHm Ref. Im M8x1
22.00 18.75 22.00
27.50 Ref. If side in correspondanceassembly on connector: of contact n ° 1 INSULATING BLOCK: Ref. IHf

Dimensions are in mm
