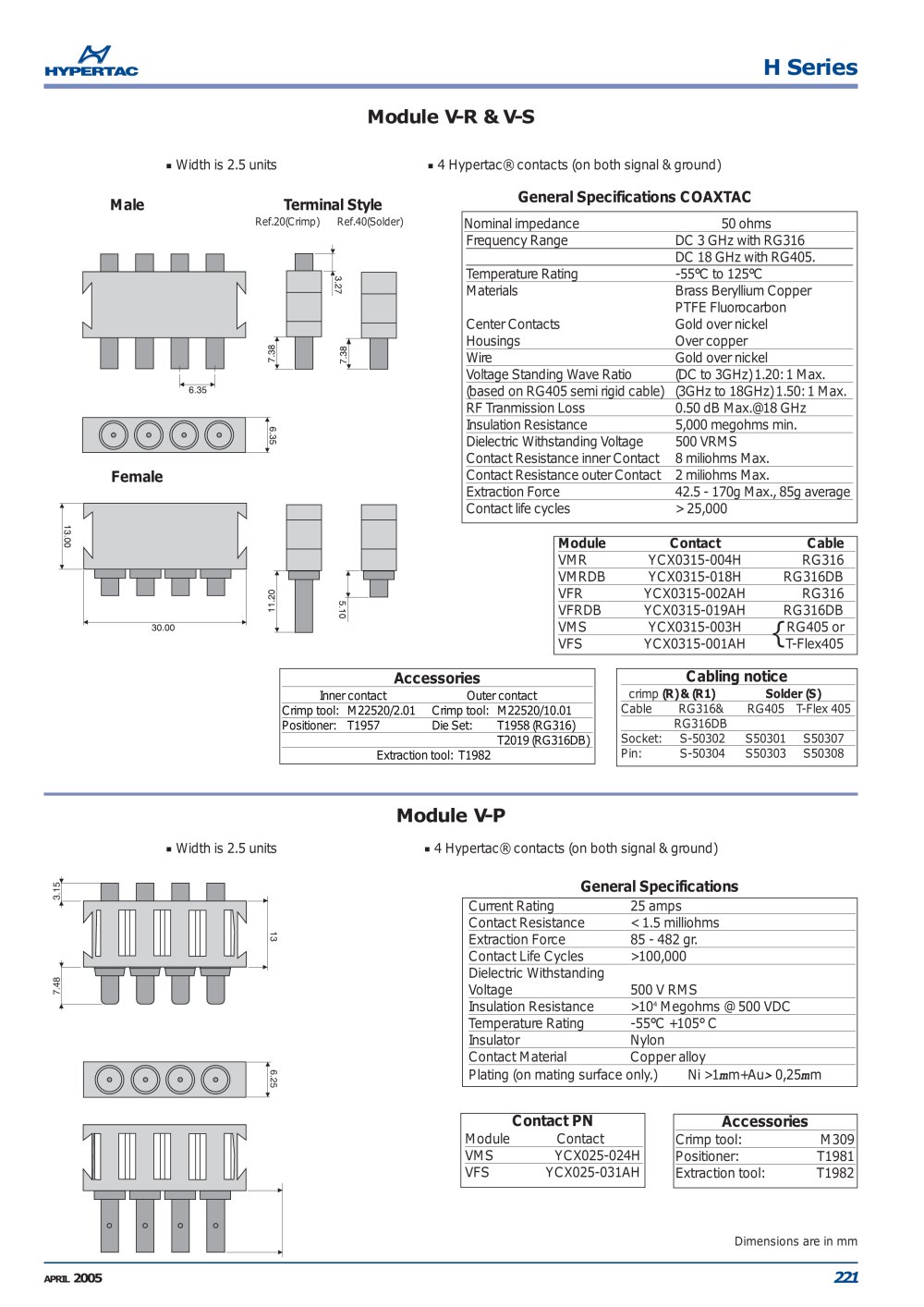

H Series
Module V-R & V-S
Width is 2.5 units4 Hypertac® contacts (on both signal & ground)
Male Terminal Style GeneralSpecifications COAXTAC
Ref.20(Crimp)Ref.40(Solder) Nominal impedance50 ohms Frequency RangeDC 3 GHz with RG316 DC 18 GHz with RG405. Temperature Rating-55°C to 125°CMaterialsBrass Beryllium Copper PTFE Fluorocarbon Center Contacts Gold over nickel HousingsOver copper WireGold over nickel Voltage Standing Wave Ratio(DC to 3GHz) 1.20: 1 Max. (based on RG405 semi rigid cable)(3GHz to 18GHz) 1.50: 1 Max. RF Tranmission Loss 0.50 dB Max.@18 GHz Insulation Resistance5,000 megohms min.
Dielectric Withstanding Voltage500 VRMS Contact Resistance inner Contact8 miliohms Max.
Female
Contact Resistance outer Contact2 miliohms Max. Extraction Force42.5 - 170g Max., 85g average
Contact life cycles> 25,000 ModuleContact Cable VMRYCX0315-004HRG316 VMRDBYCX0315-018HRG316DB VFRYCX0315-002AHRG316 VFRDBYCX0315-019AHRG316DB VMSYCX0315-003HRG405 or VFSYCX0315-001AHT-Flex405
{
Accessories Cabling notice
Inner contactOuter contact crimp (R) & (R1)Solder (S) Crimp tool:M22520/2.01Crimp tool:M22520/10.01 Cable RG316&RG405T-Flex 405 Positioner:T1957Die Set:T1958 (RG316) RG316DB T2019 (RG316DB) Socket:S-50302S50301S50307 Extraction tool: T1982 Pin:S-50304S50303S50308 Module V-P
Width is 2.5 units4 Hypertac® contacts (on both signal & ground)
GeneralSpecifications
Current Rating25 amps
13 Contact Resistance< 1.5 milliohms Extraction Force85 - 482 gr. Contact Life Cycles>100,000Dielectric Withstanding
7.483.15 Voltage500 VRMS Insulation Resistance>10
4 Megohms @ 500 VDC Temperature Rating-55°C +105°C InsulatorNylon
6.25 Contact MaterialCopper alloyPlating (on mating surface only.)Ni >1 m m+Au > 0,25 m m
Contact PN Accessories
ModuleContact Crimp tool:M309 VMSYCX025-024H Positioner:T1981 VFSYCX025-031AH Extraction tool:T1982
Dimensions are in mm APRIL 2005 221
