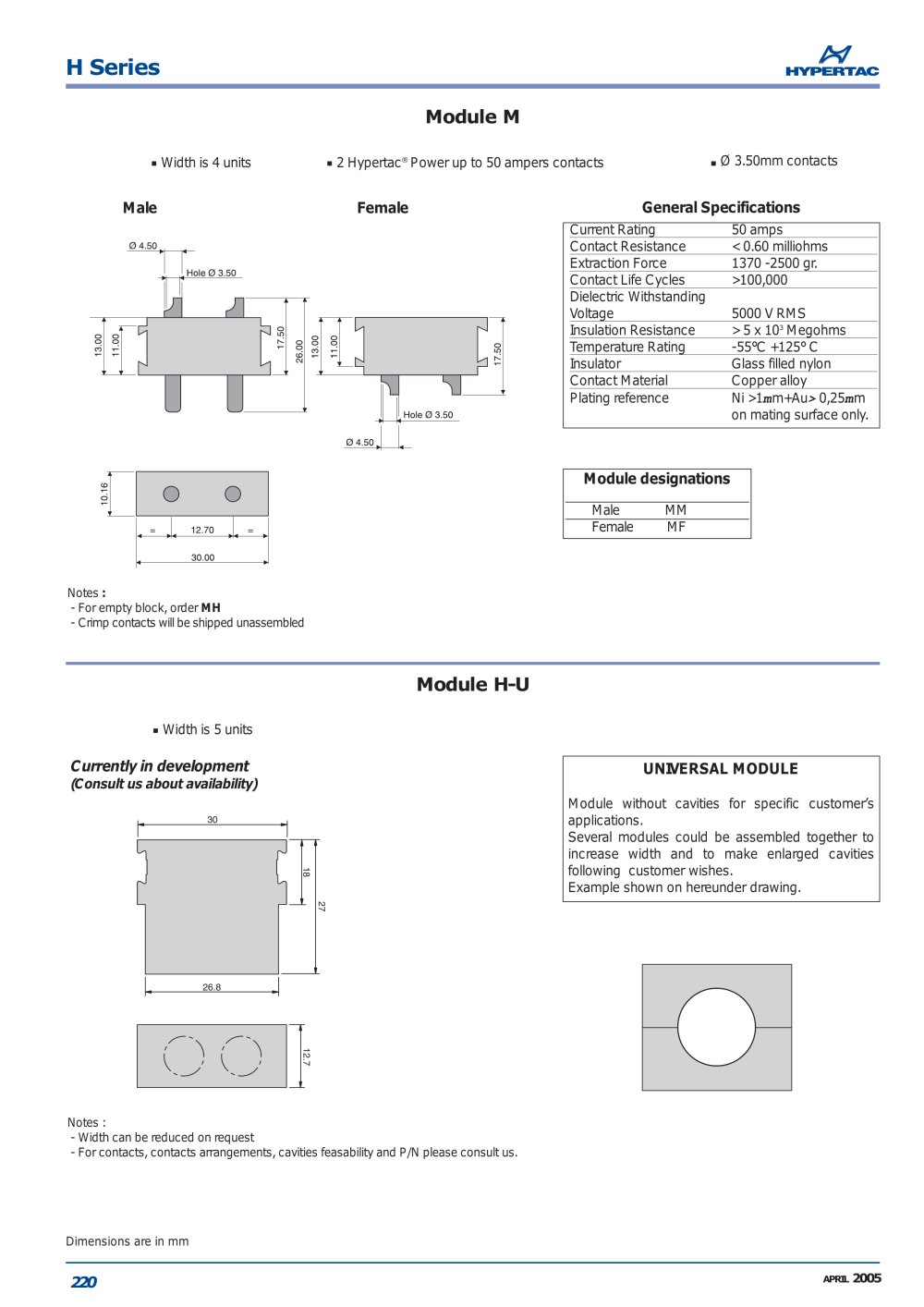

| | | H Series | | |
| | | |
| | | Module M ■ 2 Hypertac® Power up to 50 ampers contacts Female | | |
| | | ■ 0 3.50mm contacts | | |
| | | ■ Width is 4 units | | |
| | | |
| | | |
| | | General Specifications | | |
| | | Male | | |
| | | |
| | | |
| | | | | | | | | | Current Rating | 50 amps | | | | Contact Resistance | < 0.60 milliohms | | | | Extraction Force | 1370 -2500 gr. | | | | Contact Life Cycles | >100,000 | | | | Dielectric Withstanding | | | | | Voltage | 5000 VRMS | | | | Insulation Resistance | > 5 x 103 Megohms | | | | Temperature Rating | -55C +125°C | | | | Insulator | Glass filled nylon | | | | Contact Material | Copper alloy | | | | Plating reference | Ni >1mm+Au> 0,25mm on mating surface only. | | | | | | | | | |
| | | 0 4.50 | | |
| | | |
| | | |
| | | | | | | | | | | | o o | Module designations | | | | | Male MM | | | | | . = 1270 ■ ► | Female MF | | | | | 30.00 | | | | | | | | | | | |
| | | |
| | | Notes: - For empty block, order MH - Crimp contacts will be shipped unassembled | | |
| | | |
| | | Module H-U | | |
| | | |
| | | ■ Width is 5 units Currently in development (Consult us about availability) | | |
| | | UNIVERSAL MODULE Module without cavities for specific customer's applications. Several modules could be assembled together to increase width and to make enlarged cavities following customer wishes. Example shown on hereunder drawing. | | |
| | | |
| | | 30 | | |
| | | |
| | | 8 | | |
| | | |
| | | |
| | | 7 | | |
| | | |
| | | 26.8 | | |
| | | |
| | | Notes : - Width can be reduced on request - For contacts, contacts arrangements, cavities feasability and P/N please consult us. | | |
| | | |
| | | Dimensions are in mm | | |
| | | |
| | | APRIL 2005 | | |
