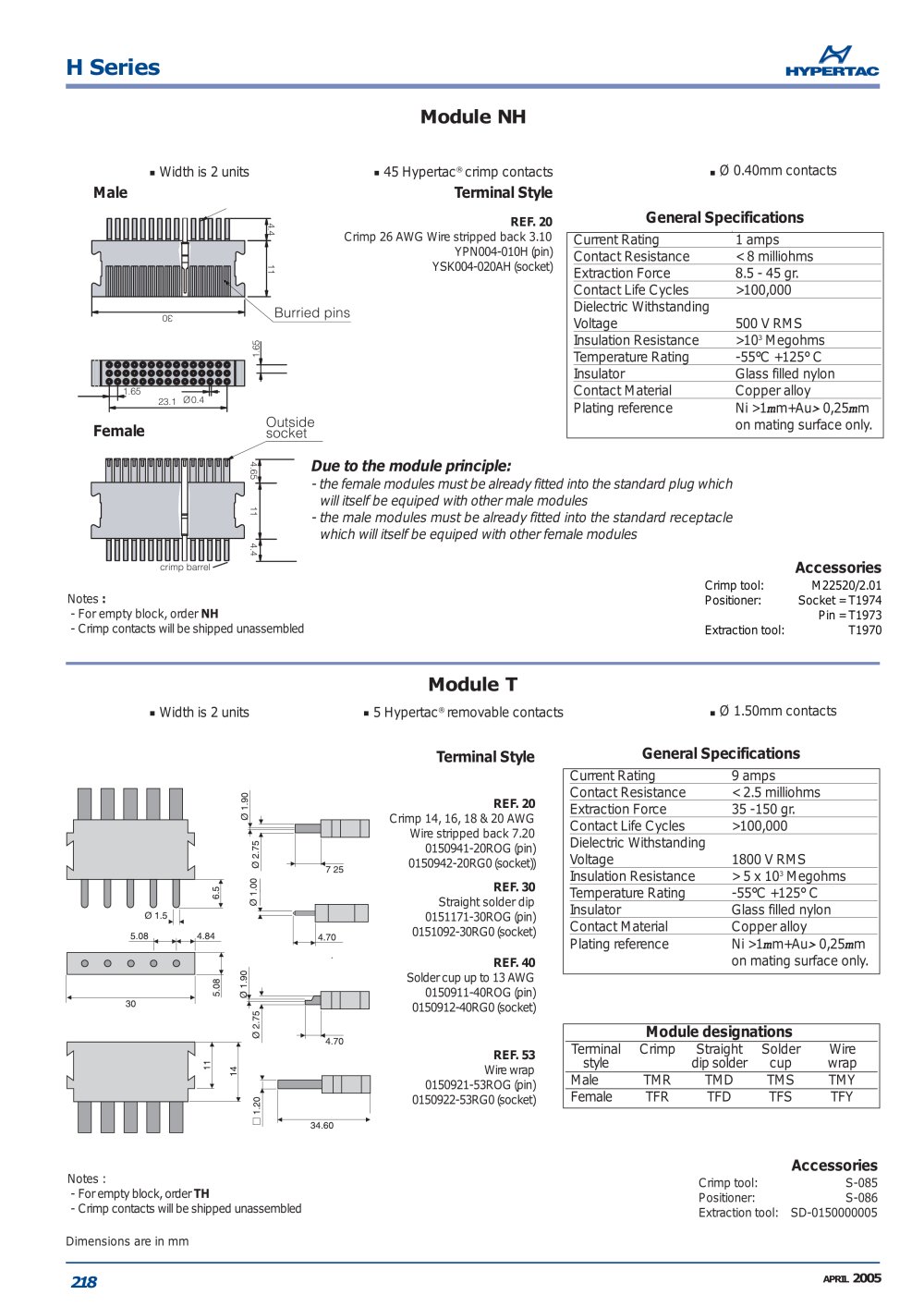

H Series
Module NH
Width is 2 units45 Hypertac
® crimp contactsØ 0.40mm contacts
Male
Female Terminal Style
4.4 REF. 20 GeneralSpecifications
Crimp 26 AWG Wire stripped back 3.10YPN004-010H (pin)YSK004-020AH (socket) Current Rating1 amps Contact Resistance< 8 milliohms Extraction Force8.5 - 45 gr. Contact Life Cycles>100,000Dielectric Withstanding
30 Burried pinsOutside socket Voltage500 VRMS Insulation Resistance>10
3 Megohms
1.65 Temperature Rating-55°C +125°C InsulatorGlass filled nylon
1.6523.1 Ø0.4 Contact MaterialCopper alloyPlating referenceNi >1 m m+Au > 0,25 m mon mating surface only.
4.654.41111 Due to the module principle:
- the female modules must be already fitted into the standard plug whichwill itself be equiped with other male modules- the male modules must be already fitted into the standard receptaclewhich will itself be equiped with other female modules
crimp barrel Accessories
Crimp tool:M22520/2.01
Positioner:Socket = T1974Pin = T1973Extraction tool:T1970 Notes : - For empty block, order NH - Crimp contacts will be shipped unassembled Module T
Width is 2 units5 Hypertac
® removable contactsØ 1.50mm contacts
Terminal Style GeneralSpecifications
Current Rating9 amps Contact Resistance< 2.5 milliohms
REF. 20 Crimp 14, 16, 18 & 20 AWGWire stripped back 7.200150941-20ROG (pin)0150942-20RG0 (socket)) Extraction Force35 -150 gr. Contact Life Cycles>100,000
Dielectric Withstanding Voltage1800 VRMS
3 REF. 30 Insulation Resistance> 5 x 10 Megohms
Straight solder dip 0151171-30ROG (pin)0151092-30RG0 (socket) Temperature Rating-55°C +125°C InsulatorGlass filled nylon Contact MaterialCopper alloyPlating referenceNi >1 m m+Au > 0,25 m mon mating surface only.
REF. 40 Solder cup up to 13 AWG0150911-40ROG (pin)0150912-40RG0 (socket) Module designations
REF. 53 Terminal CrimpStraightSolder Wirestyledip soldercupwrap
Wire wrap0150921-53ROG (pin)0150922-53RG0 (socket) MaleTMRTMDTMSTMY FemaleTFRTFDTFSTFY
Accessories
Notes:- For empty block, order Crimp tool:S-085
Positioner:S-086
Extraction tool:SD-0150000005 TH - Crimp contacts will be shipped unassembled Dimensions are in mm 218
APRIL 2005
