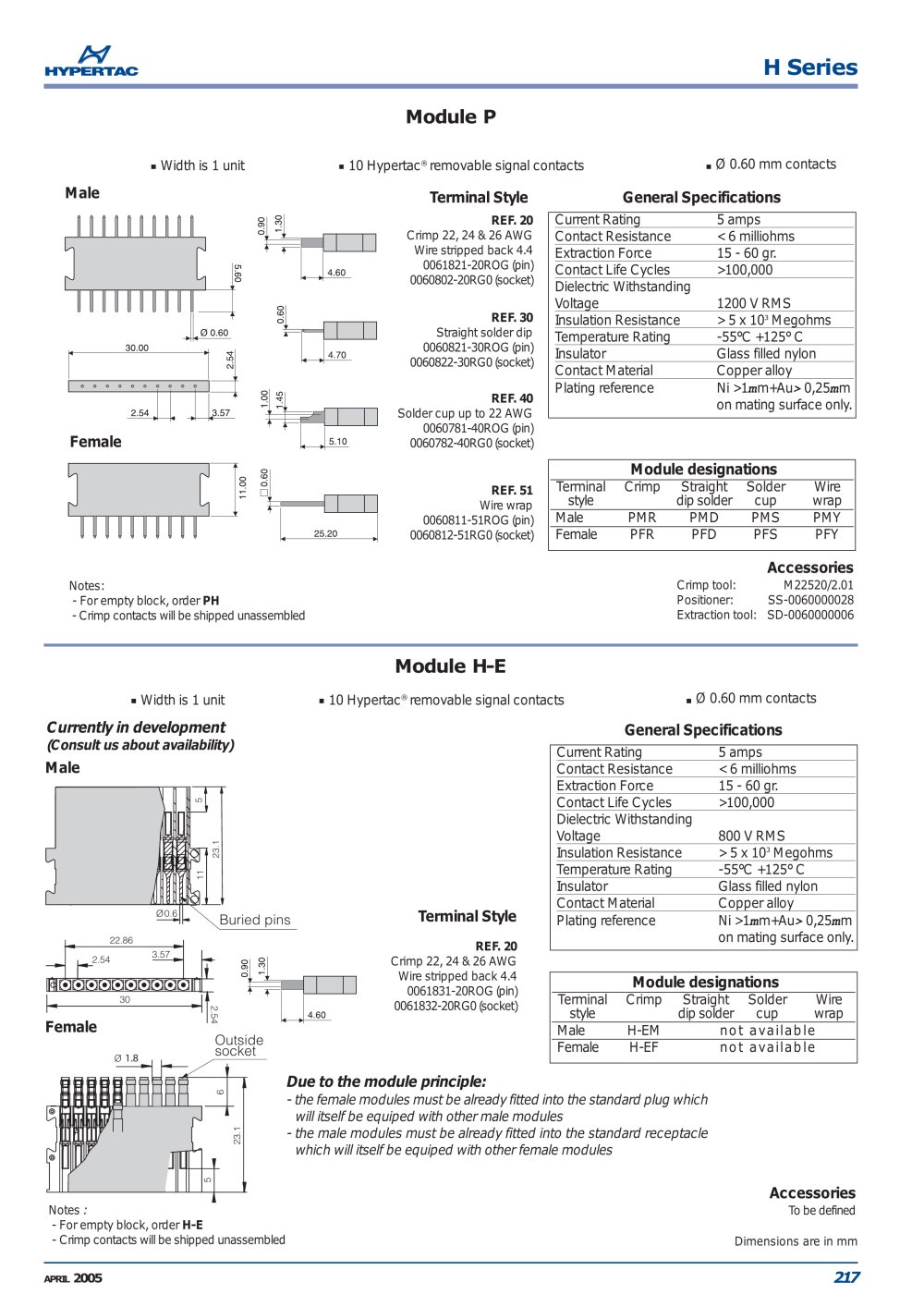

H Series

Module P

0 0.60 mm contacts

I Width is 1 unit

■ 10 Hypertac® removable signal contacts

Male

Terminal Style

REF. 20

Crimp 22, 24 & 26 AWG Wire stripped back 4.4 0061821-20ROG (pin) 0060802-20RG0 (socket)

General Specifications


	Current Rating	5 amps
	Contact Resistance	< 6 milliohms
	Extraction Force	15 - 60 gr.
	Contact Life Cycles	>100,000
	Dielectric Withstanding
	Voltage	1200 VRMS
	Insulation Resistance	> 5 x 10³ Megohms
	Temperature Rating	-55C +125°C
	Insulator	Glass filled nylon
	Contact Material	Copper alloy
	Plating reference	Ni >1mm+Au> 0,25mm on mating surface only.



	i 1—
	«5.60		4.60
	«5.60

REF. 30

Straight solder dip 0060821-30ROG (pin) 0060822-30RG0 (socket)

REF. 40

Solder cup up to 22 AWG 0060781-40ROG (pin) 0060782-40RG0 (socket)

0 0.60


	-		m


o o o o o o
		_	i
2.54 _t			*£.57*

Female


Module designations
Terminal	Crimp Straight Solder	Wire
style	dip solder cup	wrap
Male	PMR PMD PMS	PMY
Female	PFR PFD PFS	PFY

REF. 51

Wire wrap 0060811-51ROG (pin) 0060812-51RG0 (socket)

Accessories

Crimp tool: M22520/2.01

Positioner: SS-0060000028 Extraction tool: SD-0060000006

Notes:

- For empty block, order PH

- Crimp contacts will be shipped unassembled

Module H-E

0 0.60 mm contacts

. Width is 1 unit

Currently in development (Consult us about availability)

Male

■ 10 Hypertac® removable signal contacts

General Specifications


	Current Rating	5 amps
	Contact Resistance	< 6 milliohms
	Extraction Force	15 - 60 gr.
	Contact Life Cycles	>100,000
	Dielectric Withstanding
	Voltage	800 VRMS
	Insulation Resistance	> 5 x 10³ Megohms
	Temperature Rating	-55°C +125°C
	Insulator	Glass filled nylon
	Contact Material	Copper alloy
	Plating reference	Ni >1mm+Au> 0,25mm on mating surface only.

Terminal Style

REF. 20

Crimp 22, 24 & 26 AWG Wire stripped back 4.4 0061831-20ROG (pin) 0061832-20RG0 (socket)

Buried pins

22.86

3.0/


	Module designations
	Terminal style	Crimp Straight Solder Wire dip solder cup wrap
	Male	H-EM not available
	Female	H-EF not available




			4.60

lEiCOlOlOlOlOlOIOlOlOlOJ

^{5 4}

Female

Outside socket

0 1.8

Due to the module principle:

- the female modules must be already fitted into the standard plug which will itself be equiped with other male modules

- the male modules must be already fitted into the standard receptacle which will itself be equiped with other female modules

Accessories

To be defined Dimensions are in mm

Notes:

- For empty block, order H-E

- Crimp contacts will be shipped unassembled

217

APRIL 2005
