H Series

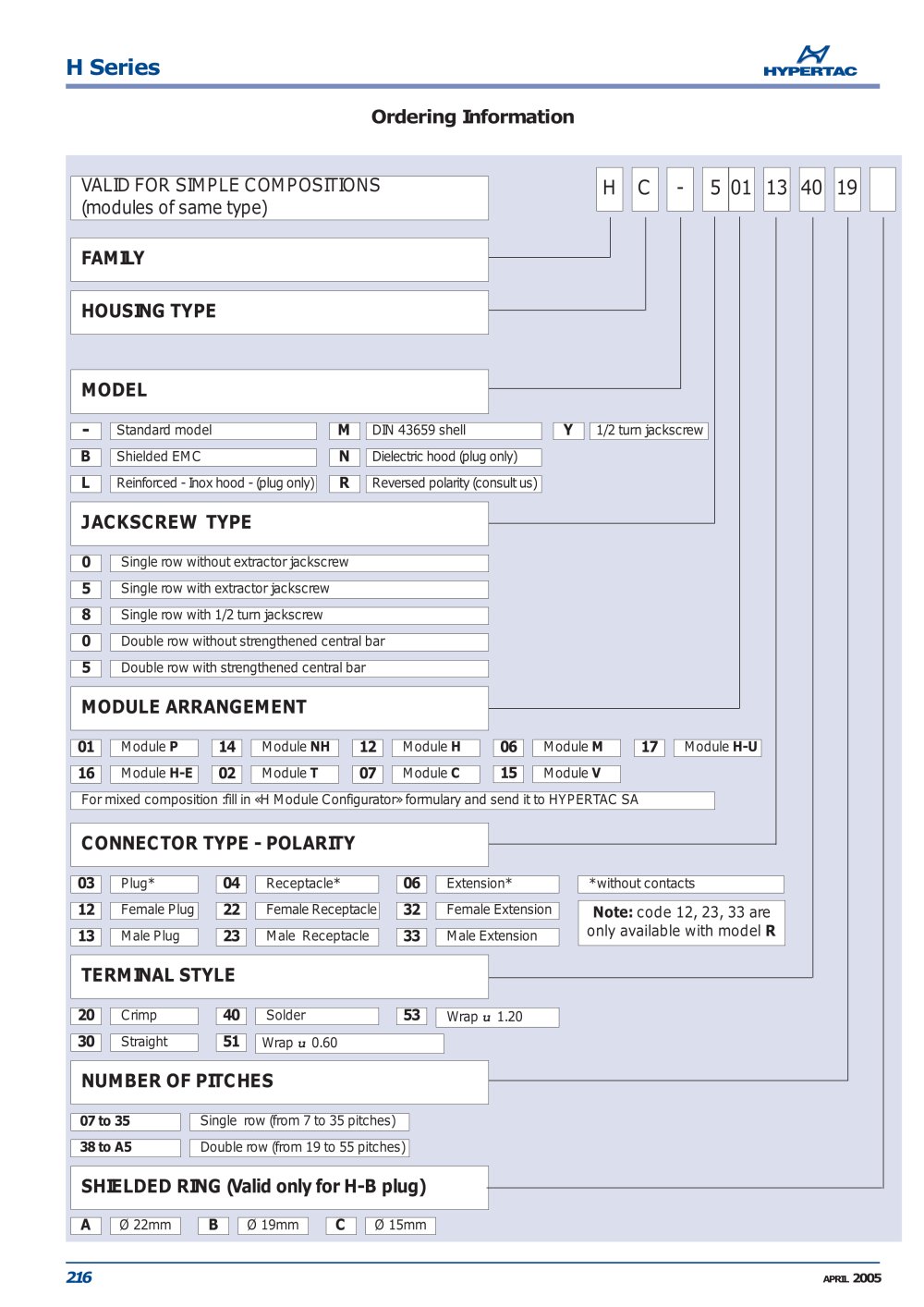

Ordering Information VALID FOR SIMPLE COMPOSITIONS(modules of same type)
H C - 5 01 13 40 19
FAMILY HOUSING TYPE MODEL -
Standard model
M
DIN 43659 shell
Y
1/2 turn jackscrew
B
Shielded EMC
N
Dielectric hood (plug only)
L
Reinforced - Inox hood - (plug only)
R
Reversed polarity (consult us)
JACKSCREW TYPE
Single row without
industrial extractor jackscrew
5
Single row with extractor jackscrew
8
Single row with 1/2 turn jackscrew
Double row without strengthened central bar
5
Double row with strengthened central bar
MODULE ARRANGEMENT
01
Module P
14
Module NH
12
Module H
06
Module M
17
Module H-U
16
Module H-E
02
Module T
07
Module C
15
Module V For mixed composition :fill in «H Module Configurator» formulary and send it to HYPERTAC SA
CONNECTOR TYPE - POLARITY
03
Plug*
04
Receptacle*
06
Extension* * without contacts
12
FemalePlug
22
Female Receptacle
32
Female Extension
Note: code 12, 23, 33 areonly available with model 13
Male Plug
23
Male Receptacle
33
Male Extension
R
TERMINAL STYLE
20
Crimp
40
Solder
53
Wrap u 1.20
30
Straight
51
Wrap u 0.60
NUMBER OF PITCHES
07 to 35 Single row (from 7 to 35 pitches) 38 to A5 Double row (from 19 to 55 pitches)
SHIELDED RING (Valid only forH-B plug)
A
Ø 22mm
B
Ø 19mm
C
Ø 15mm
216
APRIL 2005
