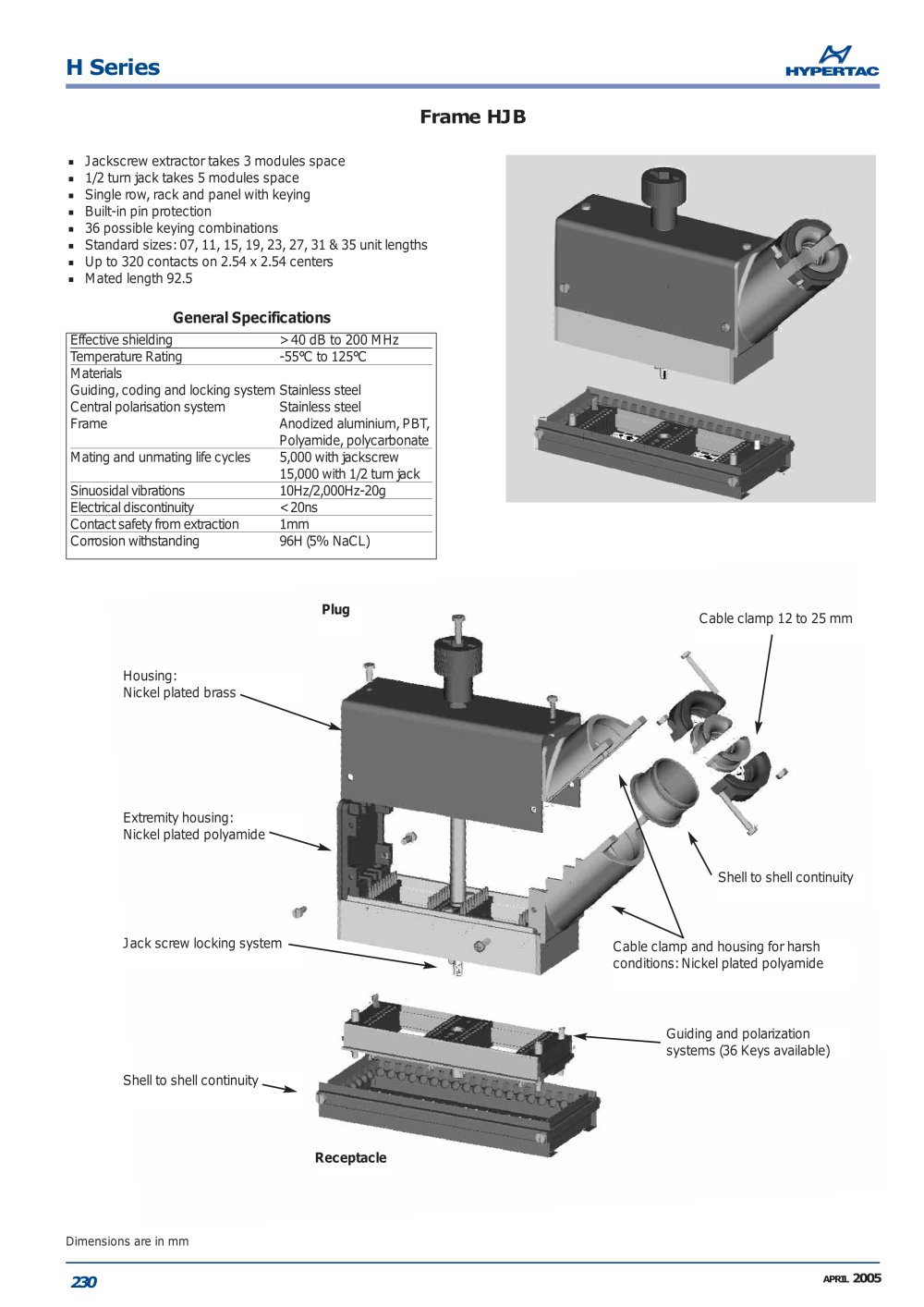

H Series

Frame HJB

Jackscrew industrial extractor takes 3 modules space 1/2 turn jack takes 5 modules space Single row, rack and panel with keying Built-in pin protection 36 possible keying combinations Standard sizes: 07, 11, 15, 19, 23, 27, 31 & 35 unit lengths Up to 320 contacts on 2.54 x 2.54 centers Mated length 92.5

GeneralSpecifications

Effective industrial shielding> 40 dB to 200 MHz Temperature Rating-55°C to 125°CMaterials Guiding, coding and locking systemStainless steel Central polarisation system Stainless steel FrameAnodized aluminium, PBT, Polyamide, polycarbonateMating and unmating life cycles5,000 with jackscrew 15,000 with 1/2 turn jack Sinuosidal vibrations 10Hz/2,000Hz-20g Electrical discontinuity< 20ns Contact safety from extraction1mm Corrosion withstanding96H (5% NaCL) Plug Cable clamp 12 to 25 mm Housing: Nickel plated brass Extremity housing: Nickel plated polyamide Shell to shell continuity Jack screw locking system Cable clamp and housing for harsh conditions: Nickel plated polyamide Guiding and polarization systems (36 Keys available) Shell to shell continuity Receptacle
Dimensions are in mm

230

APRIL 2005
