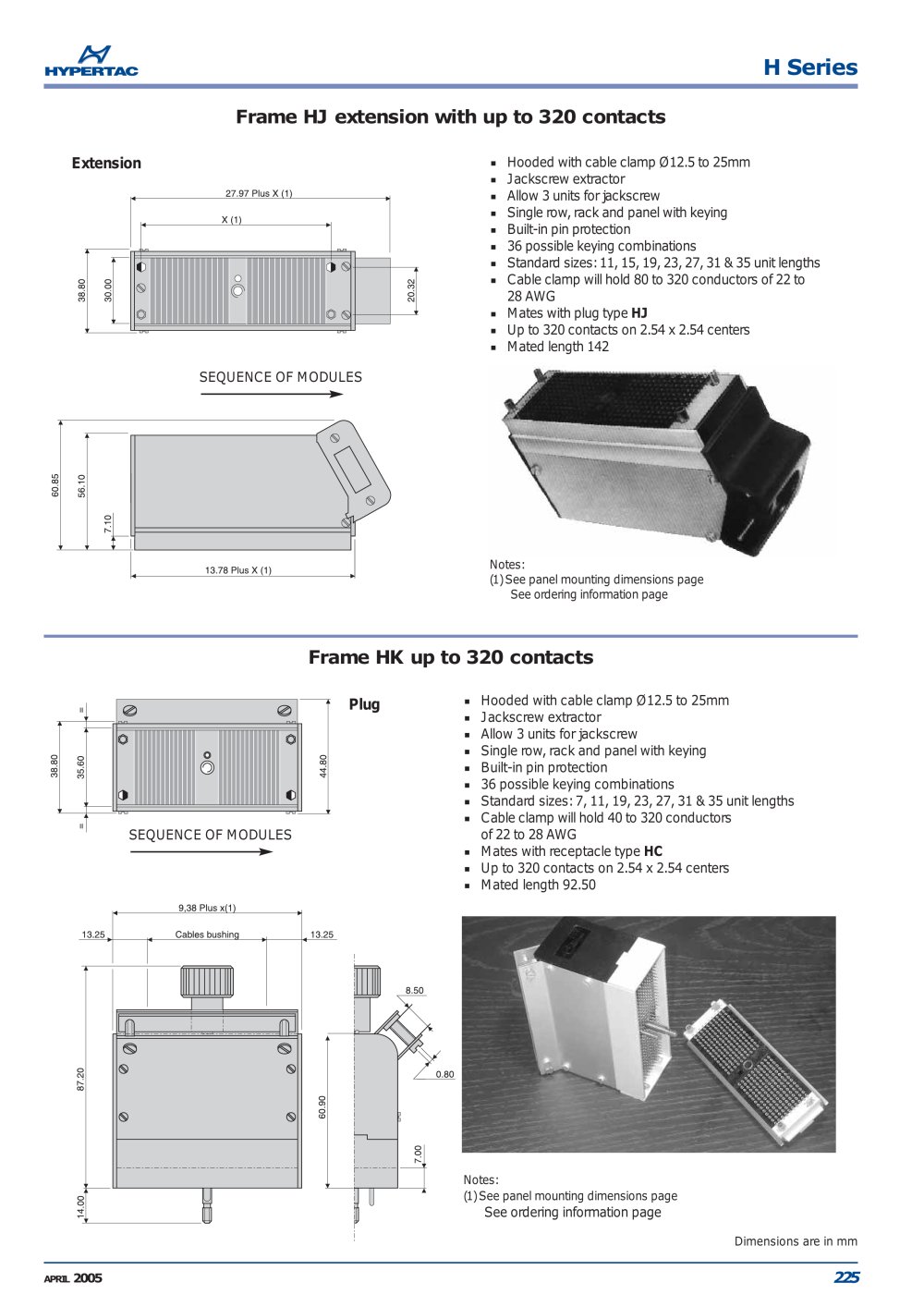

H Series

Frame HJ extension with up to 320 contacts

Extension

Hooded with cable clamp Ø12.5 to 25mmJackscrew industrial extractor Allow 3 units for jackscrew Single row, rack and panel with keying Built-in pin protection 36 possible keying combinations Standard sizes: 11, 15, 19, 23, 27, 31 & 35 unit lengths Cable clamp will hold 80 to 320 conductors of 22 to 28 AWG Mates with plug type SEQUENCE OF MODULES
Notes: (1) See panel mounting dimensions pageSee ordering information page

Frame HK up to 320 contacts

Plug

Hooded with cable clamp Ø12.5 to 25mm Jackscrew extractor Allow 3 units for jackscrew Single row, rack and panel with keying Built-in pin protection 36 possible keying combinations Standard sizes: 7, 11, 19, 23, 27, 31 & 35 unit lengths Cable clamp will hold 40 to 320 conductors of 22 to 28 AWG Mates with receptacle type HC Up to 320 contacts on 2.54 x 2.54 centers Mated length 92.50 SEQUENCE OF MODULES
Notes:(1) See panel mounting dimensions page See ordering information page
Dimensions are in mm APRIL 2005

225
