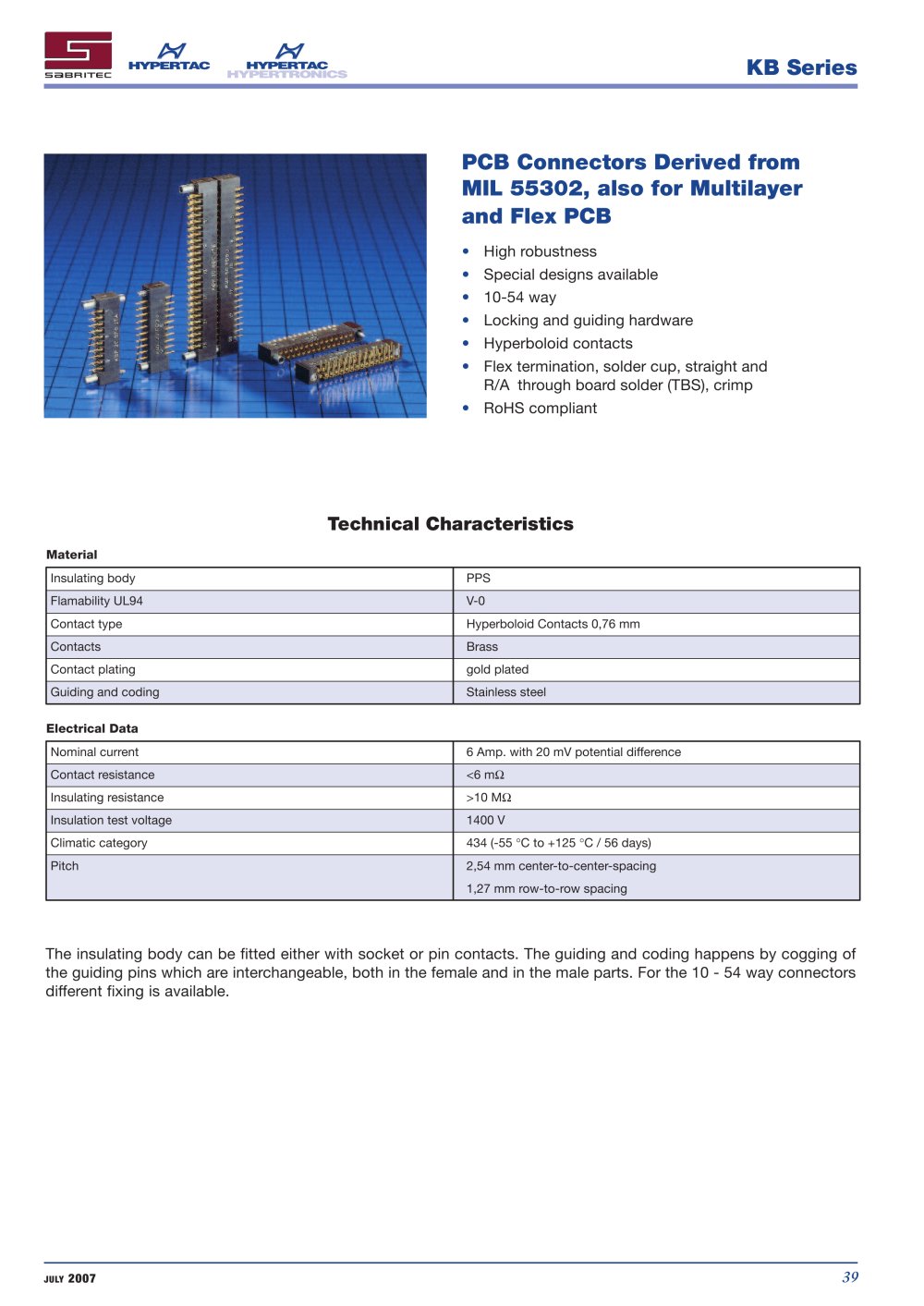

KB Series PCB Connectors Derived from MIL 55302, also for Multilayer and Flex PCB • High robustness • Special designs available • 10-54 way • Locking and guiding hardware • Hyperboloid contacts • Flex termination, solder cup, straight and R/A through board solder (TBS), crimp • RoHS compliant JULY 2007 39 Technical Characteristics The insulating body can be fitted either with socket or pin contacts. The guiding and coding happens by cogging of the guiding pins which are interchangeable, both in the female and in the male parts. For the 10 - 54 way connectors different fixing is available. Material Insulating body PPS Flamability UL94 V-0 Contact type Hyperboloid Contacts 0,76 mm Contacts Brass Contact plating gold plated Guiding and coding Stainless steel Electrical Data Nominal current 6 Amp. with 20 mV potential difference Contact resistance <6 mÙ Insulating resistance >10 MÙ Insulation test voltage 1400 V Climatic category 434 (-55 °C to +125 °C / 56 days) Pitch 2,54 mm center-to-center-spacing 1,27 mm row-to-row spacing
