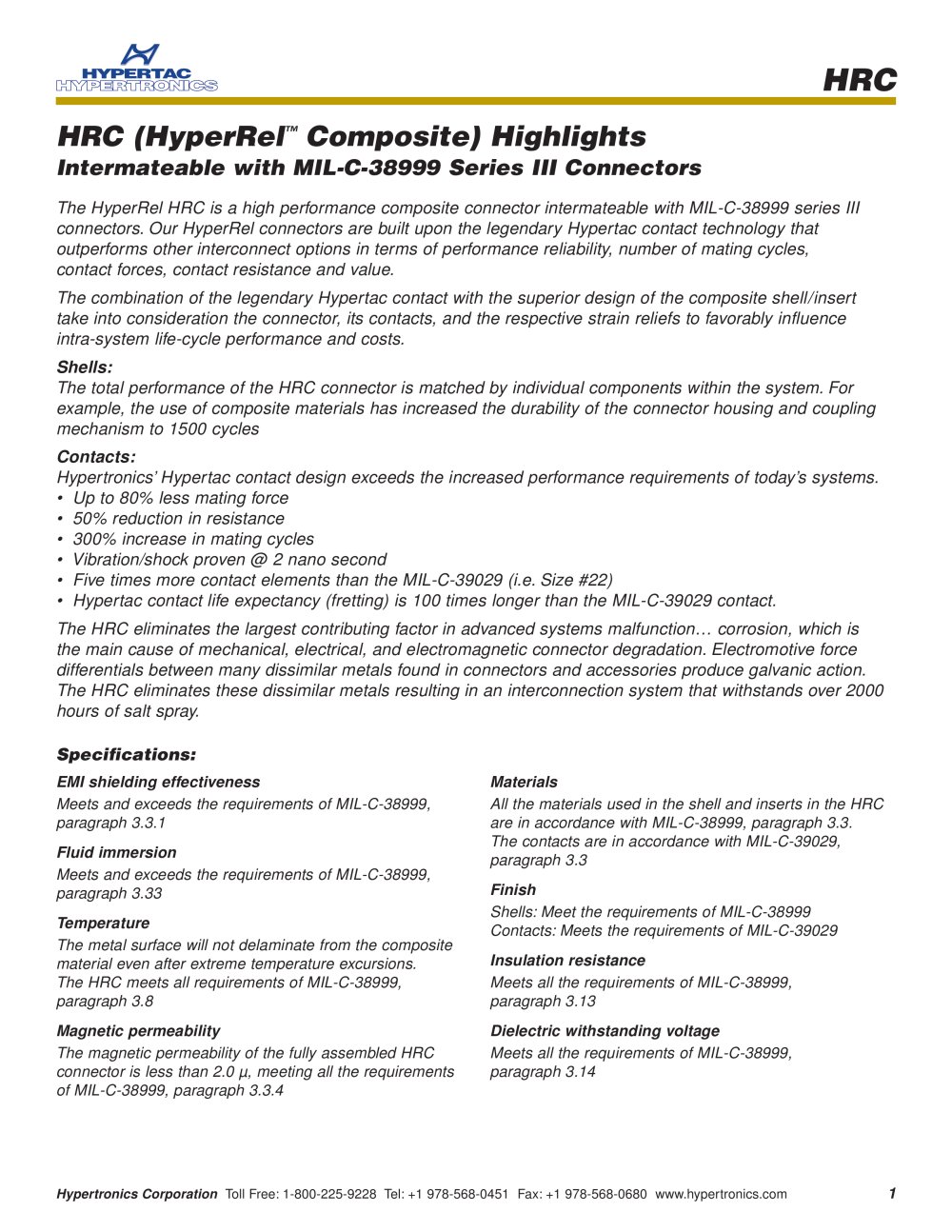

HYPERTAC HRC
HRC (HyperRel
Specifications:
™ Composite) Highlights
Intermateable with MIL-C-38999 Series III Connectors
The HyperRel HRC is a high performance composite connector intermateable with MIL-C-38999 series III
connectors.Our HyperRel connectors are built upon the legendary Hypertac contact technology that outperforms other interconnect options in terms of performance reliability, number of mating cycles, contact forces, contact resistance and value.The combination of the legendary Hypertac contact with the superior design of the composite shell/insert take into consideration the connector, its contacts, and the respective strain reliefs to favorably influence intra-system life-cycle performance and costs. Shells: The total performance of the HRC connector is matched by individual components within the system.For
example, the use of composite materials has increased the durability of the connector housing and coupling
mechanism to 1500 cycles Contacts: Hypertronics’Hypertac contact design exceeds the increased performance requirements of today’s systems.
? Up to 80% less mating force
? 50% reduction in resistance
? 300% increase in mating cycles
? Vibration/shock proven @ 2 nano second
? Five times more contact elements than the MIL-C-39029 (i.e.Size #22)
? Hypertac contact life expectancy (fretting) is 100 times longer than the MIL-C-39029 contact.The HRC eliminates the largest contributing factor in advanced systems malfunction… corrosion, which is the main cause of mechanical, electrical, and electromagnetic connector degradation.Electromotive force differentials between many dissimilar metals found in connectors and accessories produce galvanic action.
The HRC eliminates these dissimilar metals resulting in an interconnection system that withstands over 2000
hours of salt spray.
Materials All the materials used in the shell and inserts in the HRCare in accordance with MIL-C-38999, paragraph 3.3.
The contacts are in accordance with MIL-C-39029, paragraph 3.3 Finish Shells:Meet the requirements of MIL-C-38999Contacts:Meets the requirements of MIL-C-39029
Emi shielding effectiveness Insulation resistance Meets and exceeds the requirements of MIL-C-38999,paragraph 3.3.1 Meets all the requirements of MIL-C-38999, paragraph 3.13 Fluid immersion Dielectric withstanding voltage Meets and exceeds the requirements of MIL-C-38999,paragraph 3.33 Meets all the requirements of MIL-C-38999, paragraph 3.14 Temperature The metal surface will not delaminate from the compositematerial even after extreme temperature excursions.
The HRC meets all requirements of MIL-C-38999, paragraph 3.8 Magnetic permeability The magnetic permeability of the fully assembled HRCconnector is less than 2.0 µ, meeting all the requirements
of MIL-C-38999, paragraph 3.3.4
Hypertronics Corporation Toll Free:1-800-225-9228 Tel:+1 978-568-0451 Fax:+1 978-568-0680 www.hypertronics.com 1
