HRC
HYPERTAC

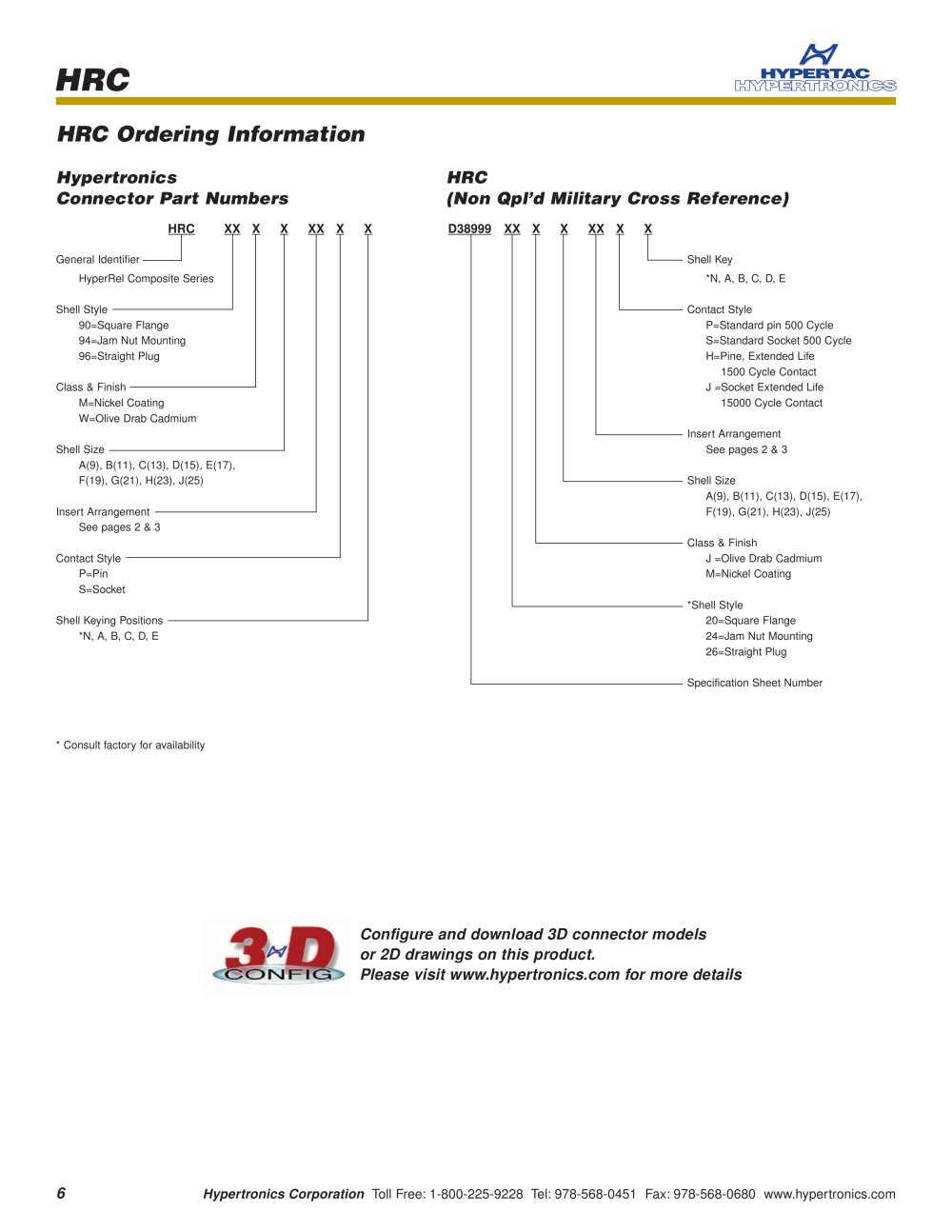

HRC Ordering Information
HypertronicsHRCConnector Part Numbers(Non Qpl’d Military Cross Reference)
HRC XX X X XX X X D38999 XX X X XX X X
General IdentifierShell KeyHyperRel Composite Series*N, A, B, C, D, EShell StyleContact Style90=Square FlangeP=Standard pin 500 Cycle94=Jam Nut MountingS=Standard Socket 500 Cycle96=Straight PlugH=Pine, Extended Life1500 Cycle ContactClass & FinishJ =Socket Extended LifeM=Nickel Coating15000 Cycle ContactW=Olive Drab CadmiumInsert ArrangementShell SizeSee pages 2 & 3A(9), B(11), C(13), D(15), E(17),F(19), G(21), H(23), J(25)Shell SizeA(9), B(11), C(13), D(15), E(17),Insert ArrangementF(19), G(21), H(23), J(25)See pages 2 & 3Class & FinishContact StyleJ =Olive Drab CadmiumP=PinM=Nickel CoatingS=Socket*Shell StyleShell Keying Positions20=Square Flange*N, A, B, C, D, E24=Jam Nut Mounting26=Straight PlugSpecification Sheet Number* Consult factory for availability Configure and download 3D connector modelsor 2D drawings on this product.
Please visit www.hypertronics.com for more details 6
