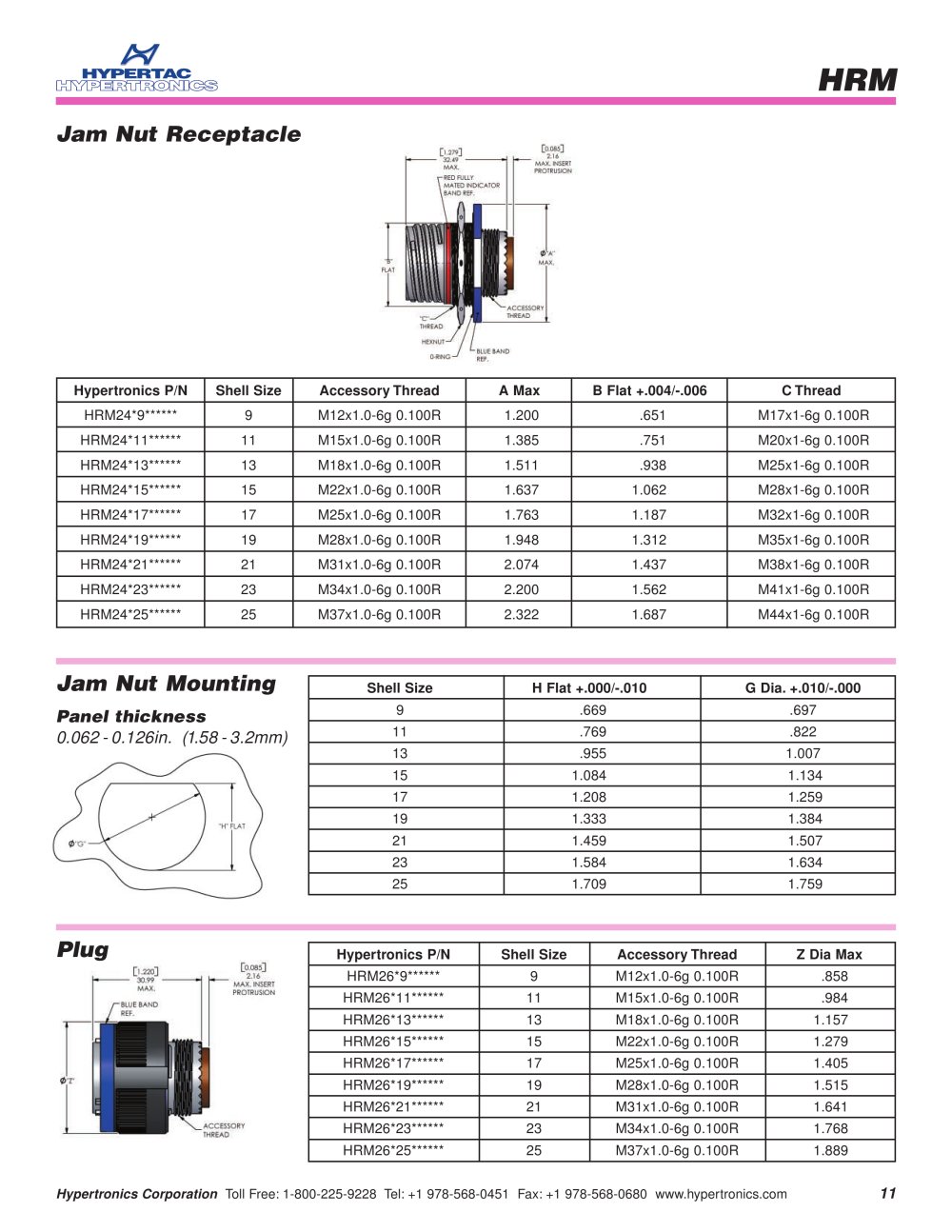

HRM

Jam Nut Receptacle

Hypertronics P/NShell SizeAccessory ThreadA MaxB Flat +.004/-.006C Thread HRM24*9******9M12x1.0-6g 0.100R1.200 .651M17x1-6g 0.100R HRM24*11******11M15x1.0-6g 0.100R1.385 .751M20x1-6g 0.100R HRM24*13******13M18x1.0-6g 0.100R1.511 .938M25x1-6g 0.100R HRM24*15******15M22x1.0-6g 0.100R1.637 1.062 M28x1-6g 0.100R HRM24*17******17M25x1.0-6g 0.100R1.763 1.187 M32x1-6g 0.100R HRM24*19******19M28x1.0-6g 0.100R1.948 1.312 M35x1-6g 0.100R HRM24*21******21M31x1.0-6g 0.100R2.074 1.437 M38x1-6g 0.100R HRM24*23******23M34x1.0-6g 0.100R2.200 1.562 M41x1-6g 0.100R HRM24*25******25M37x1.0-6g 0.100R2.322 1.687 M44x1-6g 0.100R

Jam Nut Mounting

Shell SizeH Flat +.000/-.010G Dia.+.010/-.000

Panel thickness

9.669.697

0.062-0.126in.(1.58-3.2mm)

11.769.822 13.9551.007 151.0841.134 171.2081.259 191.3331.384 211.4591.507 231.5841.634 251.7091.759

Plug

Hypertronics P/NShell SizeAccessory ThreadZ Dia Max HRM26*9******9M12x1.0-6g 0.100R.858 HRM26*11******11M15x1.0-6g 0.100R.984 HRM26*13******13M18x1.0-6g 0.100R1.157 HRM26*15******15M22x1.0-6g 0.100R1.279 HRM26*17******17M25x1.0-6g 0.100R1.405 HRM26*19******19M28x1.0-6g 0.100R1.515 HRM26*21******21M31x1.0-6g 0.100R1.641 HRM26*23******23M34x1.0-6g 0.100R1.768 HRM26*25******25M37x1.0-6g 0.100R1.889
Hypertronics Corporation Toll Free:1-800-225-9228 Tel:+1 978-568-0451 Fax:+1 978-568-0680 www.hypertronics.com

11
