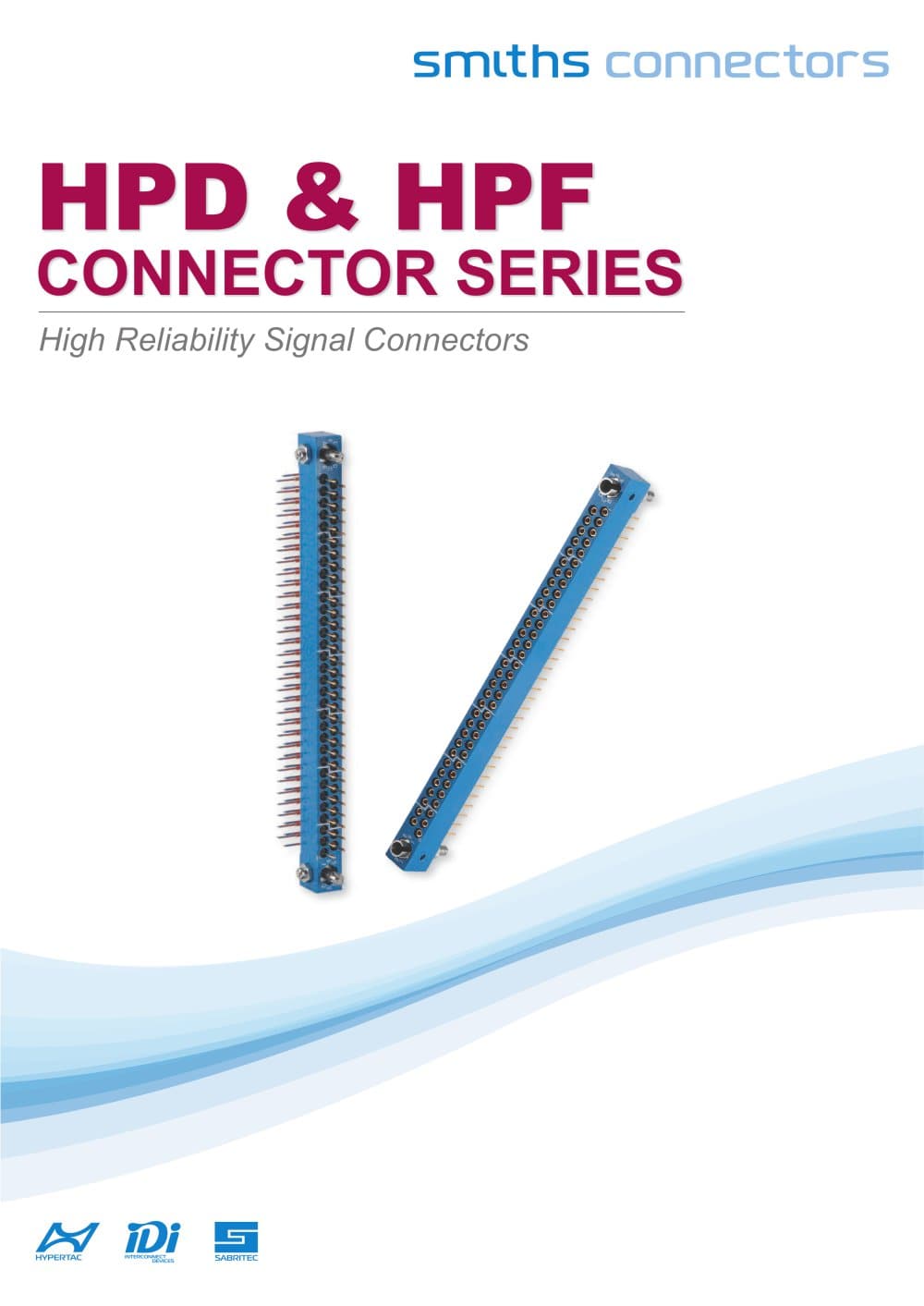

HPD/HPP/HPF/HPM - Hypertac Interconnect - #1

Text version of the page

ASTASTHPD Series 2 & 3 Contact Row Signal Connectors Product description Standard-density signal PCB connector (2,54 mm x 2,54 mm pitch) Approvals BS 9525 N0001, Mil-C-55302 & ESA SCC 3401 Features • Large number of pin count options • Large number of termination options • Large number of guide options • High reliability contacts Advantages Versatile range covering Cardfile, Stacking and Flying-lead applications Markets Mil/Aero Space, Marine, Rail & Industrial APRIL 2005 37 The following unshrouded sizes are qualified to: MIL-C-55302/159 and 162 17, 29, 41, 53 and 65 position MIL-C-55302/160 and 163 72, 84, 96 and 120 position MIL-C-55302/161 and 164 160 position BS 9525 N0001/1982 17, 29, 33, 41, 53, 65, 72, 84, 96 and 120 position BS 9525 F0041/1989 17, 29, 33, 41, 53, 65, 72, 84, and 96 position Incorporates BS 9525 N0001 testing but includes Gunfire vibration test. BS 9525 F0053/1995 Additional specification to BS 9525 N0001 with extra terminations. BS 9525-F-0016/1995 48, 62, 80, 98, 119, 149 and 160 (Solid insulator) position The following shrouded sizes are qualified to: BS 9525-F-0016/1995 48, 98, 119 and 160 position Space qualification: ESA/SCC 5401/016/017 Contact Number Contact Diameter Current Rating Contact Resistance Contact mating force Contact Life Cycle Breakdown Voltage Between Contacts Dielectric Withstanding Voltage Temperature Rating Insulation Resistance Insulator Material Contact - Material - Plating (Mating surfaces) Guide Hardware - Material - Plating Plating Reference 17, 29, 33, 41, 48, 53, 62, 65, 72, 80, 84, 96, 98, 119, 120, 149 & 160 0,60 mm 4 A 7 Milli-Ohm (max) 0,28 N (average) > 2000 1920 V AC (min) [sea level] 1400 V AC (min) [sea level] -55 to +125 Degree C 5 Gigo-Ohm @ 500 V DC (min) DAP Copper alloy 1,27 micro-metres Gold Plate (min) Stainless steel BS 303 Passivated N/A Technical Characteristics
