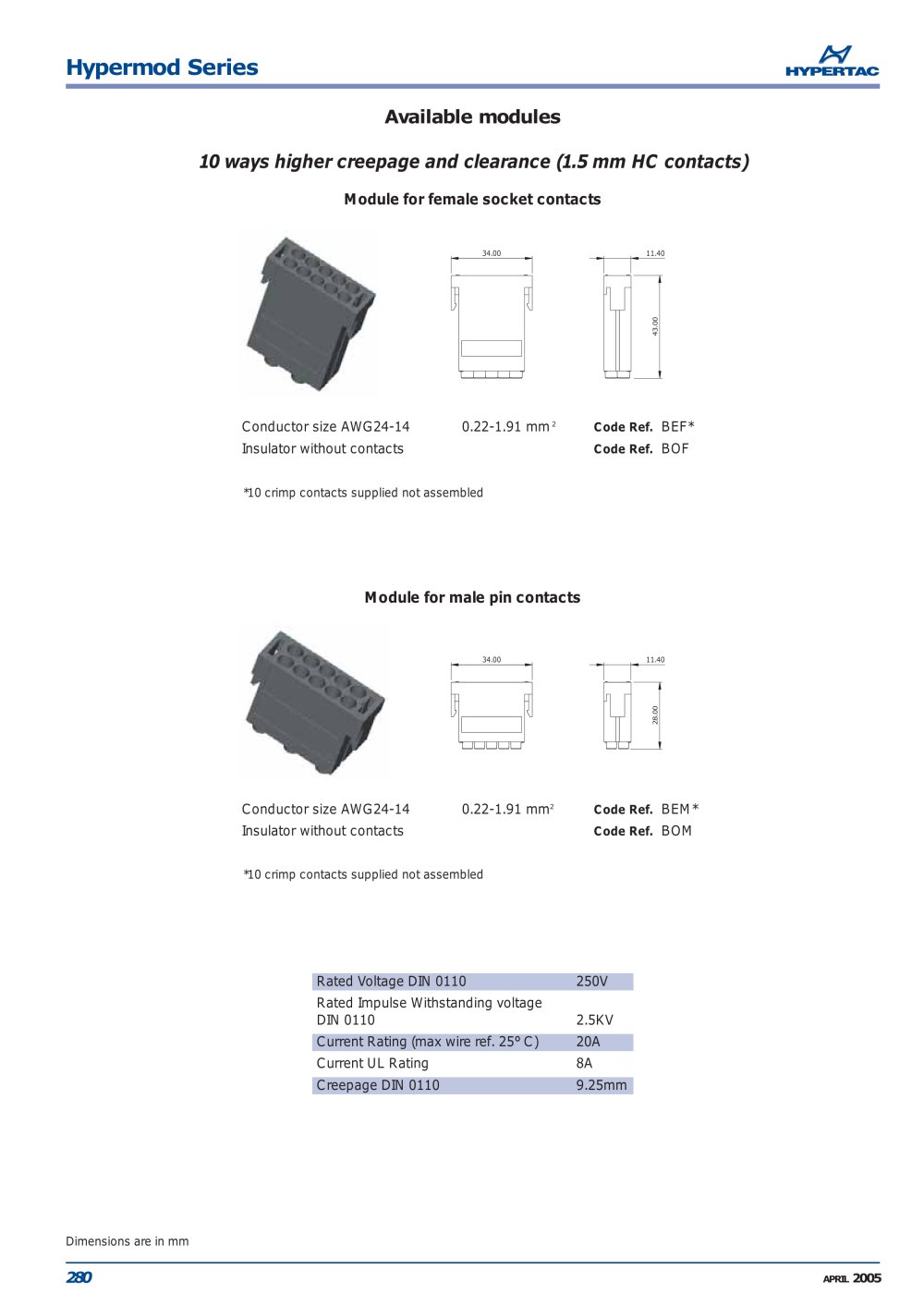

Hypermod Series
Available modules 10 ways higher creepage and clearance (1.5 mm HC contacts)
Module for female socket contacts
34.00 11.40 43.00 Conductor size AWG24-140.22-1.91 mm
2 Code Ref. BEF*Insulator without contacts
Code Ref. BOF
*10 crimp contacts supplied not assembled
*10 crimp contacts supplied not assembled Module for male pin contacts
34.0011.40 28.00 Conductor size AWG24-14 0.22-1.91 mm
2 Code Ref. BEM*Insulator without contacts
Code Ref. BOM Rated Voltage DIN 0110250VRated Impulse Withstanding voltage DIN 01102.5KV Current Rating (max wire ref. 25°C)20ACurrent UL Rating 8A Creepage DIN 01109.25mm
Dimensions are in mm 280
APRIL 2005
