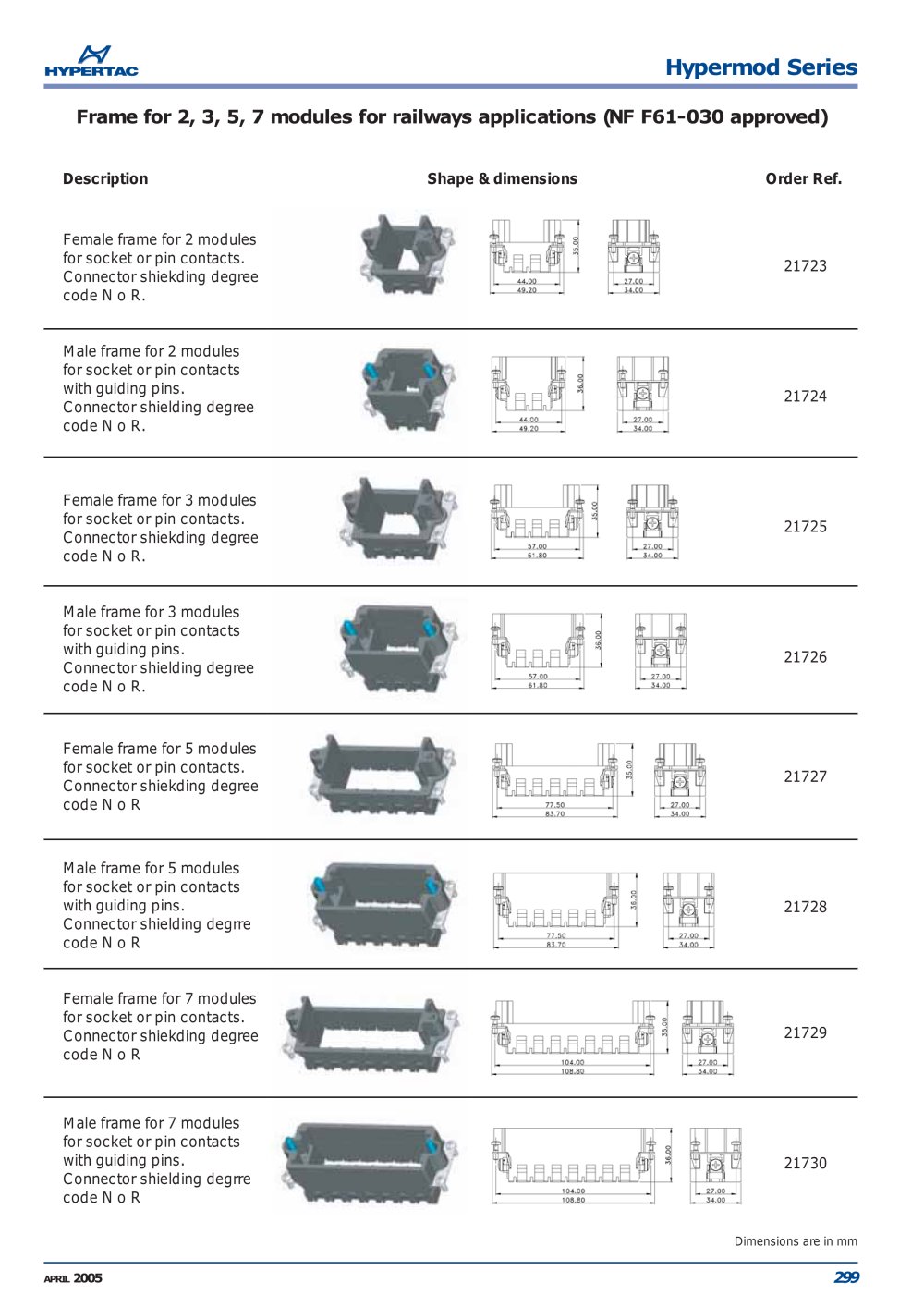

| | | Hypermod Series | | |
| | | |
| | | Frame for 2, 3, 5, 7 modules for railways applications (NF F61-030 approved) | | |
| | | |
| | | Description | | Shape & dimensions | | Order Ref. | | |
| | | |
| | | |
| | | Female frame for 2 modules for socket or pin contacts. Connector shiekding degree code N o R. | | |
| | | 21723 | | |
| | | |
| | | |
| | | Male frame for 2 modules for socket or pin contacts with guiding pins. Connector shielding degree code N o R. | | |
| | | 21724 | | |
| | | |
| | | |
| | | Female frame for 3 modules for socket or pin contacts. Connector shiekding degree code N o R. | | |
| | | 21725 | | |
| | | |
| | | |
| | | Male frame for 3 modules for socket or pin contacts with guiding pins. Connector shielding degree code N o R. | | |
| | | 21726 | | |
| | | |
| | | |
| | | Female frame for 5 modules for socket or pin contacts. Connector shiekding degree code N o R | | |
| | | 21727 | | |
| | | |
| | | |
| | | Male frame for 5 modules for socket or pin contacts with guiding pins. Connector shielding degrre code N o R | | |
| | | 21728 | | |
| | | |
| | | |
| | | Female frame for 7 modules for socket or pin contacts. Connector shiekding degree code N o R | | |
| | | 21729 | | |
| | | |
| | | |
| | | Male frame for 7 modules for socket or pin contacts with guiding pins. Connector shielding degrre code N o R | | |
| | | 21730 | | |
| | | |
| | | |
| | | Dimensions are in mm | | |
| | | |
| | | 299 | | |
| | | APRIL 2005 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | |
