Hypermod Series

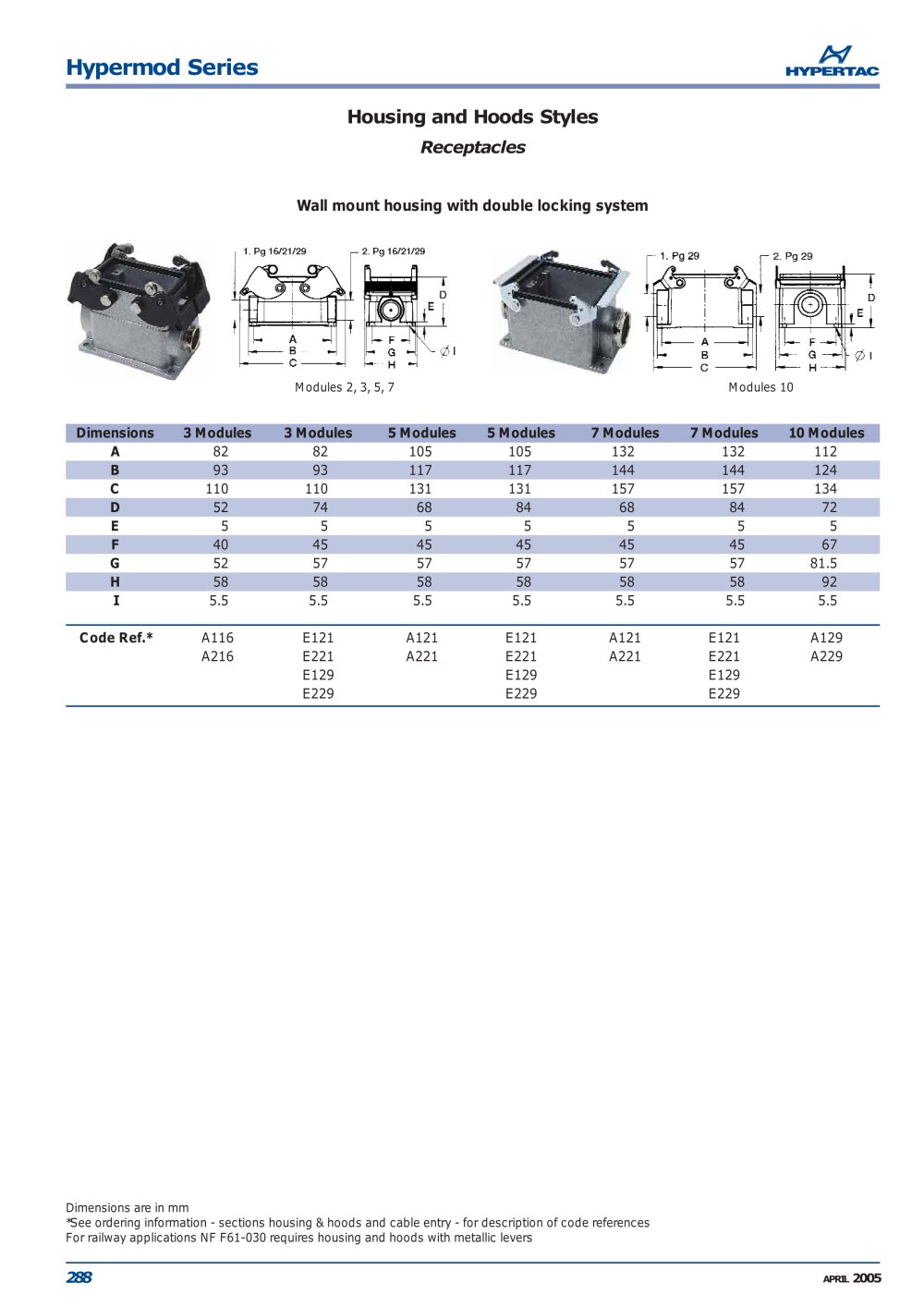

Housing and Hoods Styles
Receptacles
Modules 2, 3, 5, 7 Modules 10 Dimensions3 Modules3 Modules5 Modules5 Modules7 Modules7 Modules10 ModulesA 8282105105132132112 B 9393117117144144124 C 110110131131157157134 D 52746884688472 E 5555555 F 40454545454567 G 52575757575781.5 H 58585858585892 I 5.55.55.55.55.55.55.5 Code Ref.* A116 E121 A121 E121 A121 E121 A129A216 E221 A221 E221 A221 E221 A229E129 E129 E129 E229 E229 E229
Dimensions are in mm*See ordering information - sections housing & hoods and cable entry - for description of code references
For railway applications NF F61-030 requires housing and hoods with metallic levers 288
