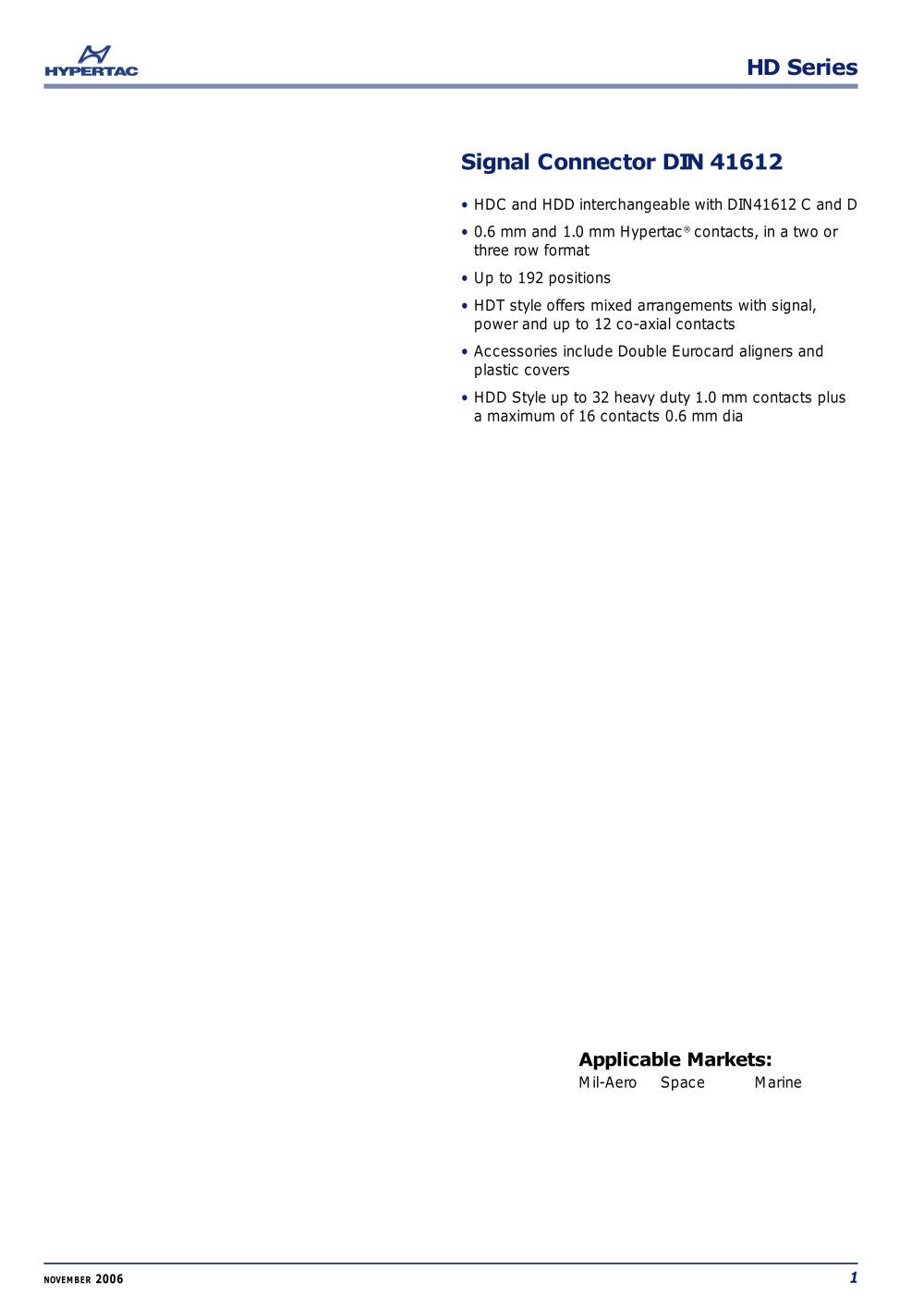

HD Series NOVEMBER 2006 1 Signal Connector DIN 41612 • HDC and HDD interchangeable with DIN41612 C and D • 0.6 mm and 1.0 mm Hypertac® contacts, in a two or three row format • Up to 192 positions • HDT style offers mixed arrangements with signal, power and up to 12 co-axial contacts • Accessories include Double Eurocard aligners and plastic covers • HDD Style up to 32 heavy duty 1.0 mm contacts plus a maximum of 16 contacts 0.6 mm dia Applicable Markets: Mil-Aero Space Marine
