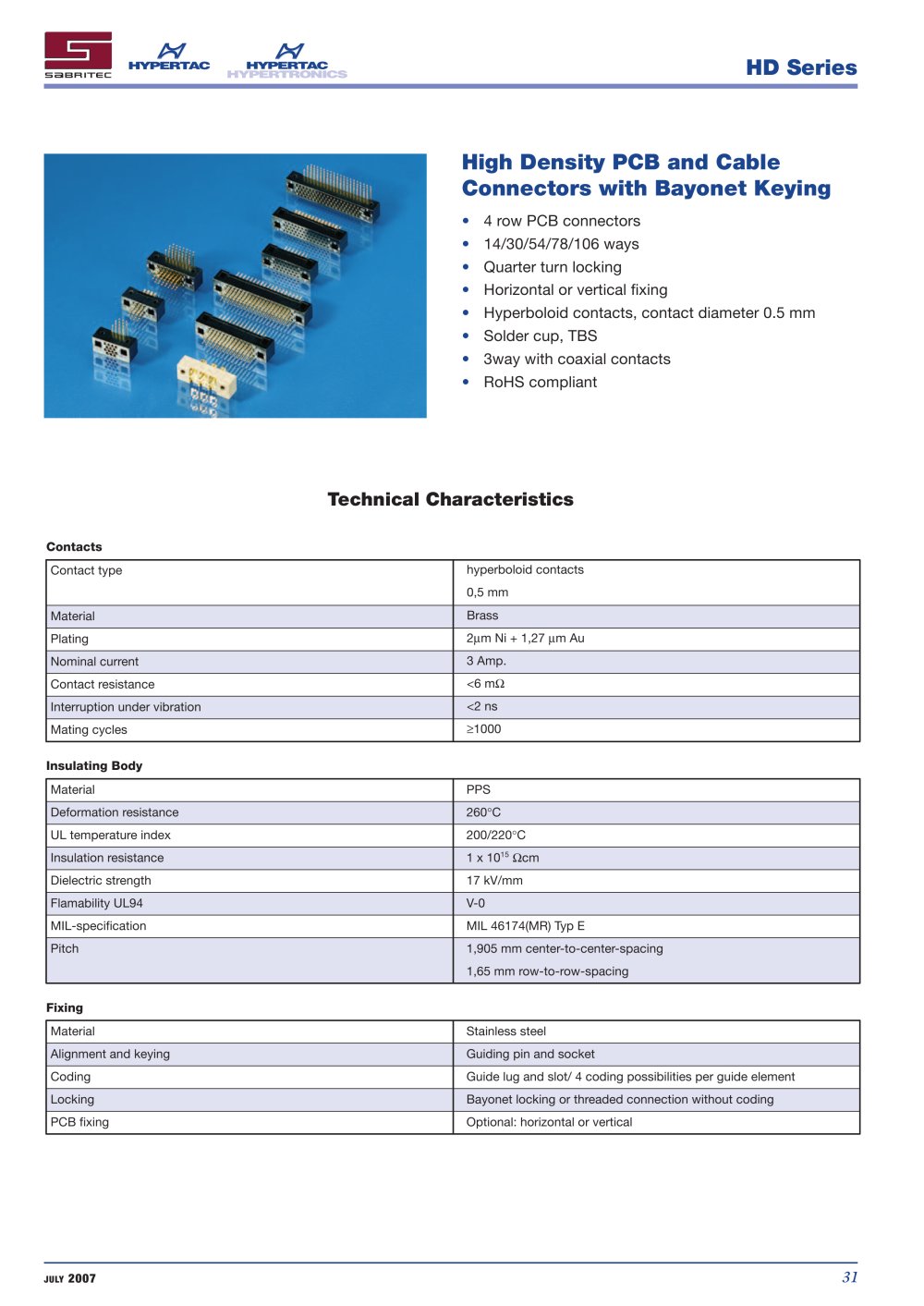

HD Series Fixing Material Stainless steel Alignment and keying Guiding pin and socket Coding Guide lug and slot/ 4 coding possibilities per guide element Locking Bayonet locking or threaded connection without coding PCB fixing Optional: horizontal or vertical Contact type Material Plating Nominal current Contact resistance Interruption under vibration Mating cycles hyperboloid contacts 0,5 mm Brass 2ìm Ni + 1,27 ìm Au 3 Amp. <6 mÙ <2 ns 1000 Contacts Insulating Body Material PPS Deformation resistance 260°C UL temperature index 200/220°C Insulation resistance 1 x 1015 Ùcm Dielectric strength 17 kV/mm Flamability UL94 V-0 MIL-specification MIL 46174(MR) Typ E Pitch 1,905 mm center-to-center-spacing 1,65 mm row-to-row-spacing JULY 2007 31 High Density PCB and Cable Connectors with Bayonet Keying • 4 row PCB connectors • 14/30/54/78/106 ways • Quarter turn locking • Horizontal or vertical fixing • Hyperboloid contacts, contact diameter 0.5 mm • Solder cup, TBS • 3way with coaxial contacts • RoHS compliant Technical Characteristics
