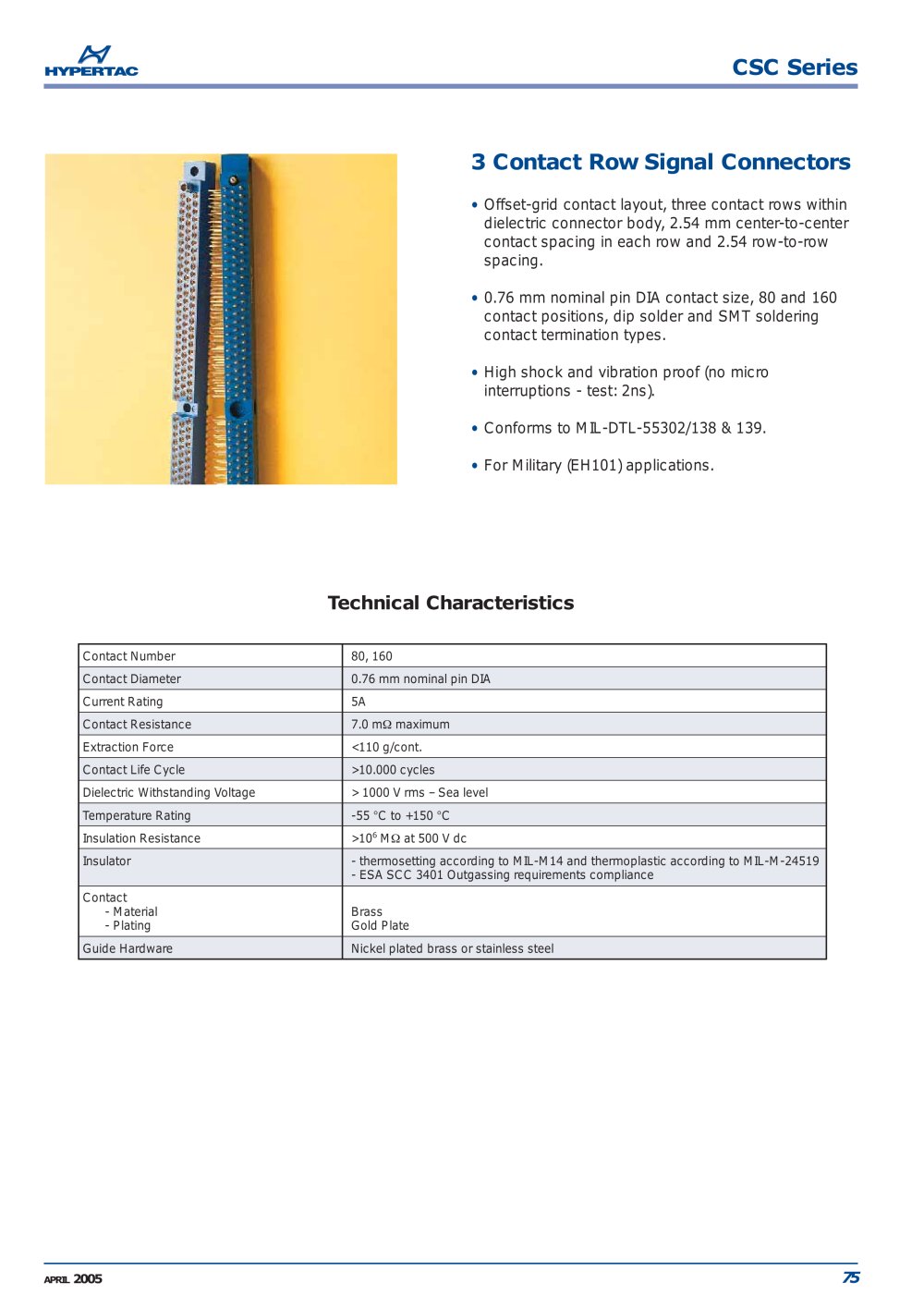

CSC Series Contact Number Contact Diameter Current Rating Contact Resistance Extraction Force Contact Life Cycle Dielectric Withstanding Voltage Temperature Rating Insulation Resistance Insulator Contact - Material - Plating Guide Hardware 80, 160 0.76 mm nominal pin DIA 5A 7.0 mÙ maximum <110 g/cont. >10.000 cycles > 1000 V rms – Sea level -55 °C to +150 °C >106 MÙ at 500 V dc - thermosetting according to MIL-M14 and thermoplastic according to MIL-M-24519 - ESA SCC 3401 Outgassing requirements compliance Brass Gold Plate Nickel plated brass or stainless steel APRIL 2005 75 3 Contact Row Signal Connectors • Offset-grid contact layout, three contact rows within dielectric connector body, 2.54 mm center-to-center contact spacing in each row and 2.54 row-to-row spacing. • 0.76 mm nominal pin DIA contact size, 80 and 160 contact positions, dip solder and SMT soldering contact termination types. • High shock and vibration proof (no micro interruptions - test: 2ns). • Conforms to MIL-DTL-55302/138 & 139. • For Military (EH101) applications. Technical Characteristics
