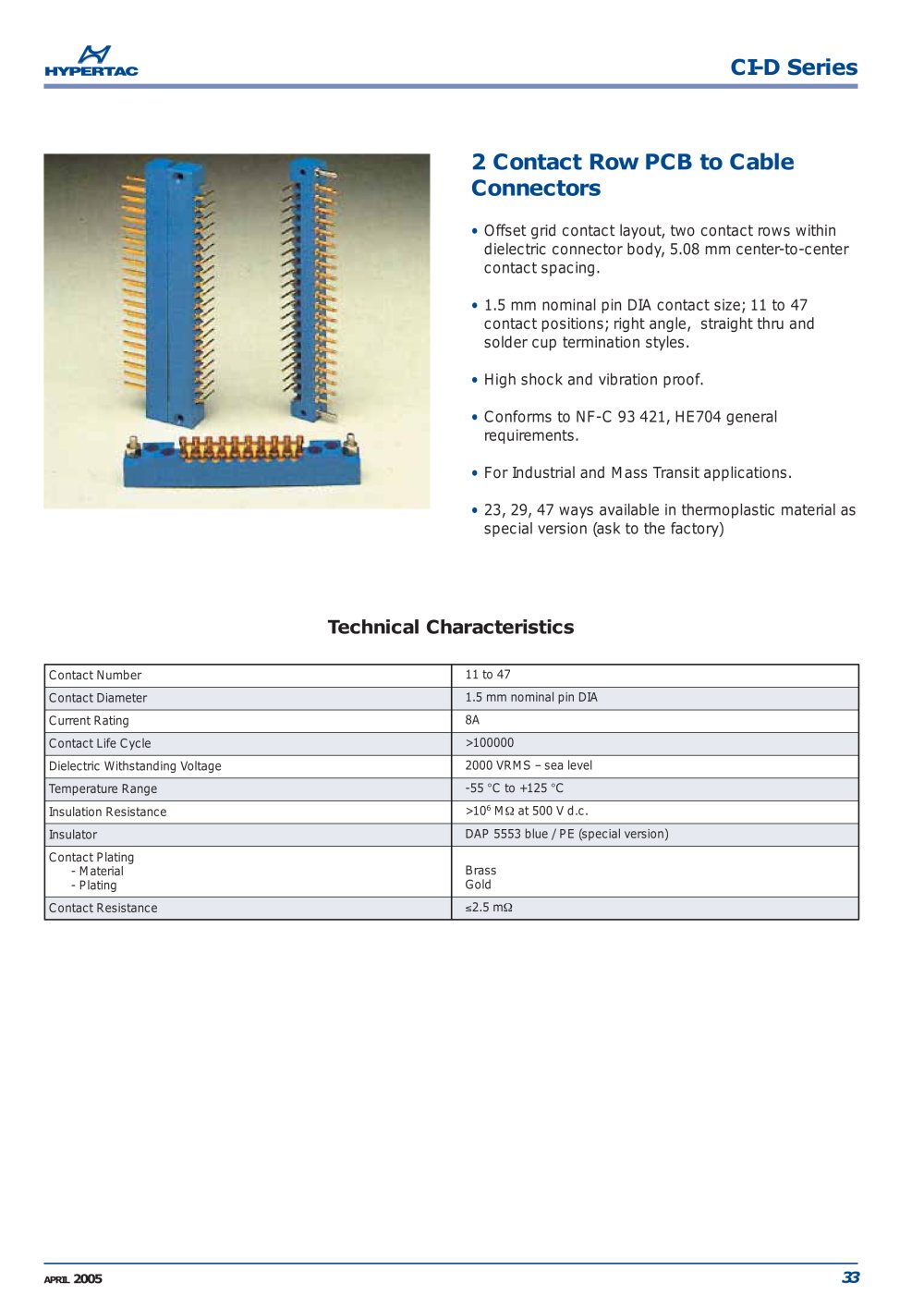

CI-D Series
APRIL 2005 33
Technical Characteristics
2 Contact Row PCB to Cable
Connectors
• Offset grid contact layout, two contact rows within
dielectric connector body, 5.08 mm center-to-center
contact spacing.
• 1.5 mm nominal pin DIA contact size; 11 to 47
contact positions; right angle, straight thru and
solder cup termination styles.
• High shock and vibration proof.
• Conforms to NF-C 93 421, HE704 general
requirements.
• For Industrial and Mass Transit applications.
• 23, 29, 47 ways available in thermoplastic material as
special version (ask to the factory)
Contact Number
Contact Diameter
Current Rating
Contact Life Cycle
Dielectric Withstanding Voltage
Temperature Range
Insulation Resistance
Insulator
Contact Plating
- Material
- Plating
Contact Resistance
11 to 47
1.5 mm nominal pin DIA
8A
>100000
2000 VRMS – sea level
-55 °C to +125 °C
>106 MŮ at 500 V d.c.
DAP 5553 blue / PE (special version)
Brass
Gold
2.5 mŮ
