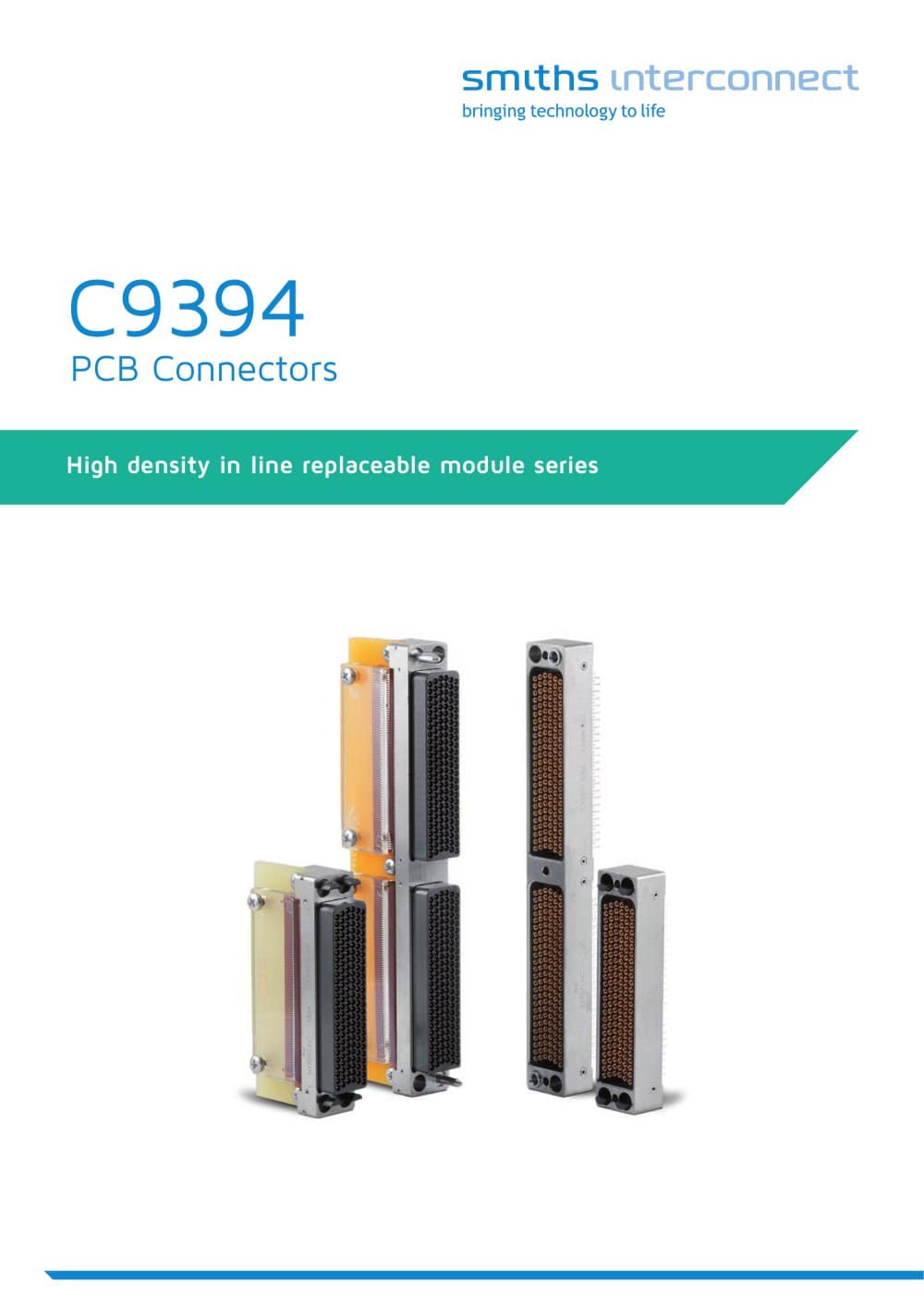

C9394 Series 6 Contact Row High Density LRM Signal Connectors • Chevron-pattern six row contact arrangement, 1.905 mm center-to-center contact spacing in each row and 1.905 row-to-row spacing. • 0.6 mm nominal pin DIA contact size; 150, 200, 300, 450 and 198 + (30 coax) contact positions, dip solder and SMT soldering contact termination types. • Metal shelled, modular design. High shock and vibration proof (no micro interruptions - test: 2ns). • Conforms to MIL-DTL-55302 general requirements. • For civil/military airborne applications. C9394 connectors are a LRM (in Line Replaceable Module) modular family. In the next pages the available versions with their relevant order reference are shown. In case of special requests, contact the factory and communicate the following information: • number of bay • type of contact terminal • thickness of board (for SMT soldering terminal) • type of hardware code (1) Current rating of the contacts equipped with flex circuit termination shall be as per the requirements of MIL-P-50884 (MIL-STD-2118) for cross section 0.01 mmq MATERIAL FINISHES MECHANICAL MECHANICAL PHYSICAL AND ENVIROMENTAL Body Pin Contacts Contacts SMT termination Mating/Unmating force Current rating (1) Contact life Contact resistance Dielectric withstanding voltage Insulation resistance Vibration Operating range Shock Copper-alloy PPS Type GST-40F Copper-alloy Tin-lead plating Gold 30.000 insertion 70g/contact 10.0 mÙ 1000 VRMS (sea level) 2.0 A 5000 MÙ at 500 VDC -65 °C +150 °C Method 2004, condition G Method 2005, condition III – MIL-STD-1344 IEC 512/3 SAE AMS-P-81728 ASTM-B-488 ASTM B16 ASTM B16 MIL-M-24519 Beryllium-copper alloy ASTM B196 Hardware PPS type GPT-30 MIL-M-24519 Alluminium alloy ASTM-B-209 Electroless nickel MIL-C-26074 MIL-STD-1344 Socket contacts Shells SMT termination Flex-circuit MIL-P-50884 Shells SMT terminal resistance 30.0 mÙ Capacitance 1.5 pF contact to contact MIL-STD-1344 MIL-STD-1344 MIL-STD-1344 MIL-STD-1344 MIL-STD-1344 MIL-STD-1344 MIL-STD-1344 250 VRMS (70.000 feet) APRIL 2005 169 Technical Characteristics Ordering Information
