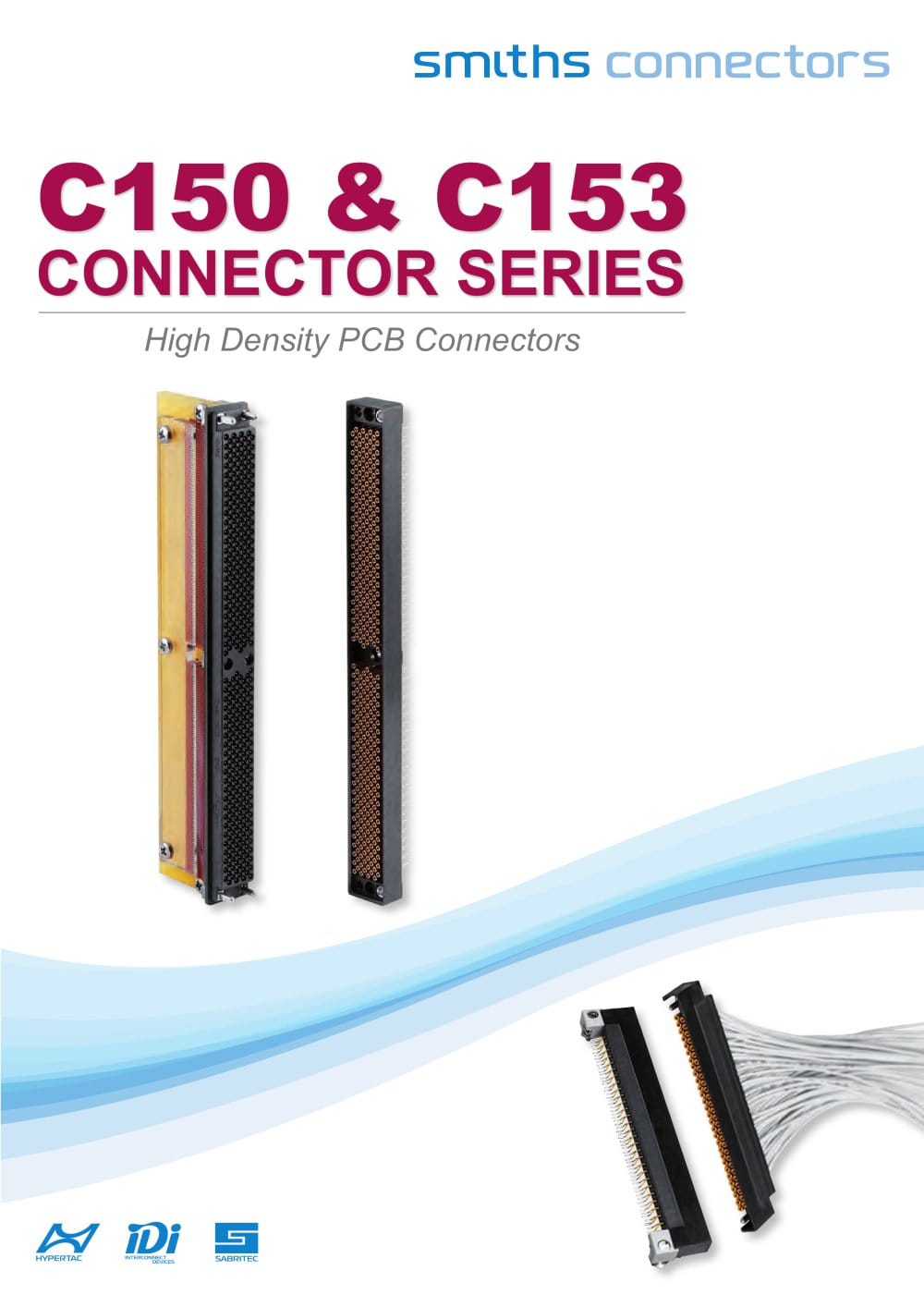

C150 - Hypertac Interconnect - #1

Text version of the page

C150 Series -65°C +125°C Shock Vibration Operating range - Body Contacts Hardware Contacts Hardware Mating/Unmating force Contact life Current rating (1) Contact resistance Dielectric withstanding voltage Insulation resistance Brass PPS CuBe Passivation Gold 30.000 insertion 50g max 5.0 mÙ 1000 VRMS, 60 Hz a.s.l. 2.0 A 5000 MÙ at 500 VDC - - - - - - In accordance with MIL-STD-1344 - - ASTM A967 ASTM B488 ASTM B197 ASTM B16 MIL-M-24519 Phosphor-Bronze ASTM B139 Stainless steel ASTM A582 CuBe ASTM B196 Nichel QQ-N-290 In accordance with MIL-STD-1344 (1) Consult factory for details MATERIAL FINISHES MECHANICAL ELECTRICAL PHYSICAL AND ENVIROMENTAL APRIL 2005 83 8 Contact Row Signal Connectors • Offset-grid contact layout, eight contact rows within dielectric connector body, 2.54 mm center-to-center contact spacing in each row and 1.27 row-to-row spacing. • 0.5 mm nominal pin DIA contact size; 304, 372 contact positions; dip solder and SMT soldering contact termination types in PPS solid body. • High contact density, high shock and vibration proof (no micro interruptions - test: 2ns). • Conforms to MIL-DTL-55302. • For military and industrial applications. Technical Characteristics
