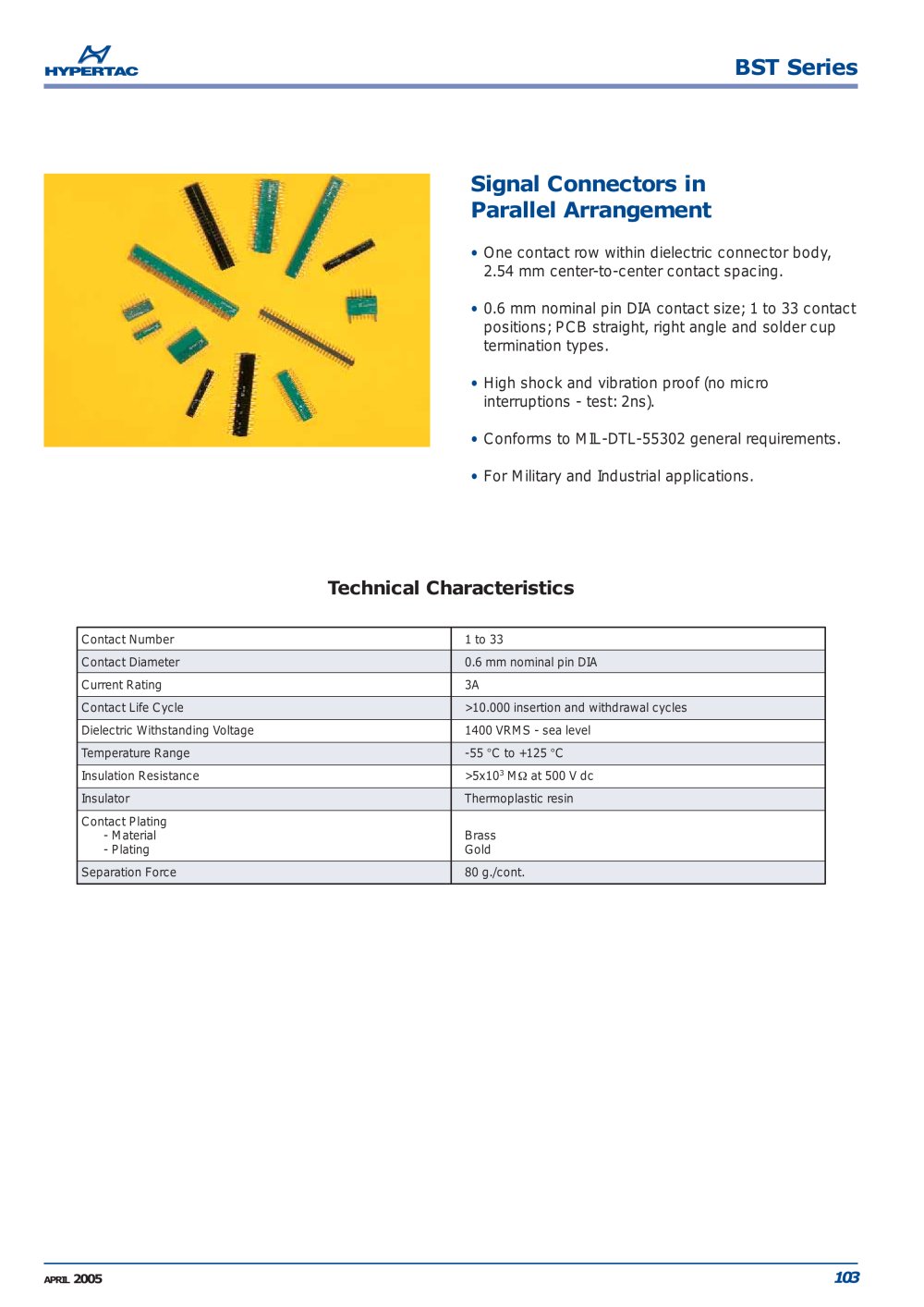

BST Series Signal Connectors in Parallel Arrangement • One contact row within dielectric connector body, 2.54 mm center-to-center contact spacing. • 0.6 mm nominal pin DIA contact size; 1 to 33 contact positions; PCB straight, right angle and solder cup termination types. • High shock and vibration proof (no micro interruptions - test: 2ns). • Conforms to MIL-DTL-55302 general requirements. • For Military and Industrial applications. Contact Number Contact Diameter Current Rating Contact Life Cycle Dielectric Withstanding Voltage Temperature Range Insulation Resistance Insulator Contact Plating - Material - Plating Separation Force 1 to 33 0.6 mm nominal pin DIA 3A >10.000 insertion and withdrawal cycles 1400 VRMS - sea level -55 °C to +125 °C >5x103 MÙ at 500 V dc Thermoplastic resin Brass Gold 80 g./cont. APRIL 2005 103 Technical Characteristics
