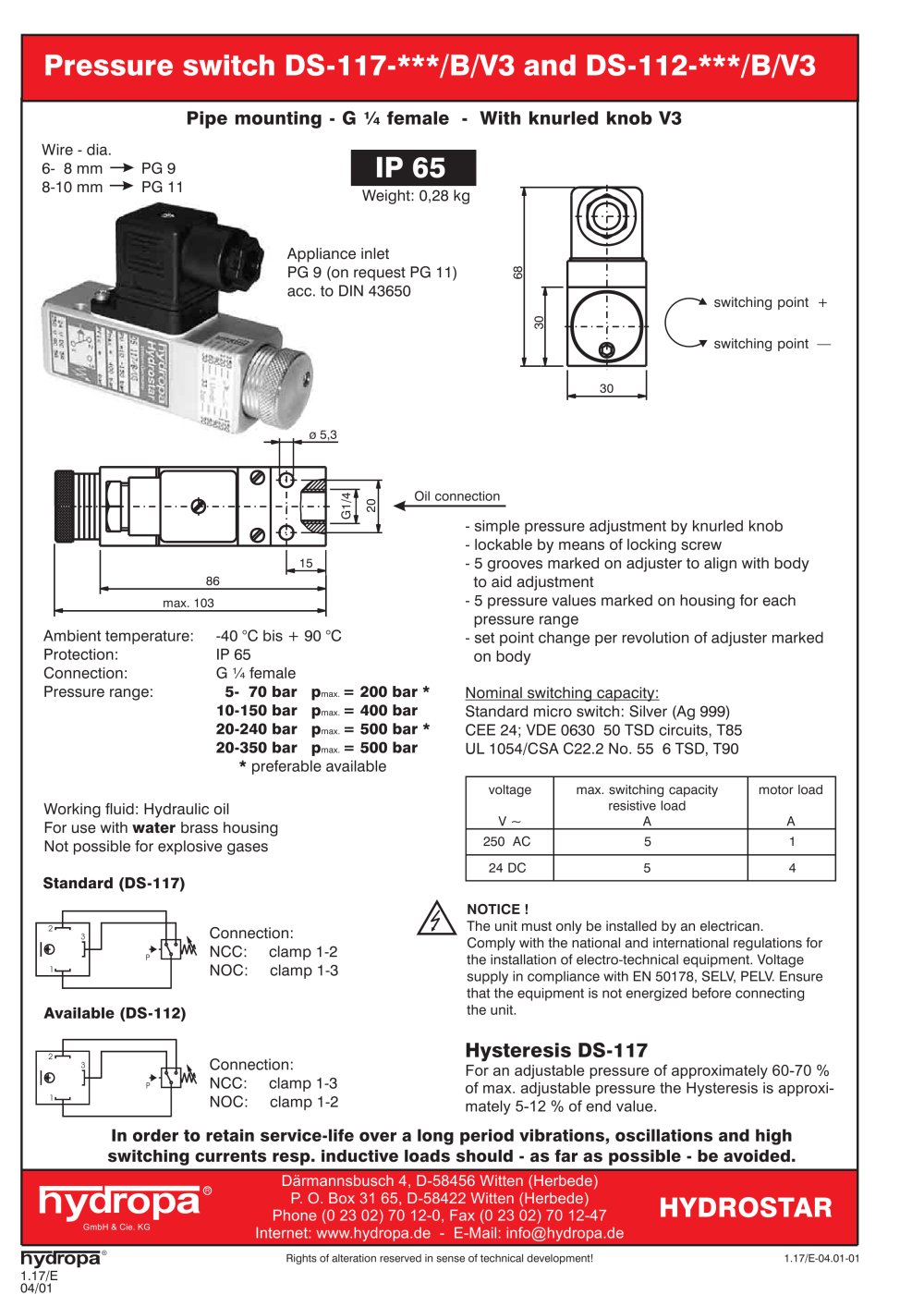

| | | Pipe mounting - G % female - With knurled knob V3 | | |
| | | |
| | | Wire - dia. 6- 8 mm -8-10 mm - | | |
| | | IP 65 | | |
| | | PG9 PG 11 | | |
| | | |
| | | Weight: 0,28 kg | | |
| | | |
| | | |
| | | Appliance inlet PG 9 (on request PG 11) acc. to DIN 43650 | | |
| | | col col | | |
| | | |
| | | |
| | | switching point + switching point — | | |
| | | |
| | | Oil connection | | |
| | | |
| | | - simple pressure adjustment by knurled knob - lockable by means of locking screw - 5 grooves marked on adjuster to align with body to aid adjustment - 5 pressure values marked on housing for each pressure range - set point change per revolution of adjuster marked on body Nominal switching capacity: Standard micro switch: Silver (Ag 999) CEE 24; VDE 0630 50 TSD circuits, T85 UL 1054/CSA C22.2 No. 55 6 TSD, T90 | | |
| | | -40 °C bis + 90 °C IP 65 G 1A female
| | |
| | | Ambient temperature: Protection: Connection: Pressure range: | | |
| | | |
| | | 5- 70 bar 10-150 bar 20-240 bar 20-350 bar | | Dmax. = 200 bar Dmax. = 400 bar Dmax. = 500 bar Dmax. = 500 bar | | |
| | | |
| | | |
| | | |
| | | preferable available | | |
| | | * | | |
| | | |
| | | |
| | | | | | | | | | | voltage | max. switching capacity | motor load | | | | | resistive load | | | | | V~ | A | A | | | | 250 AC | 5 | 1 | | | | 24 DC | 5 | 4 | | | | | | | | | | |
| | | Working fluid: Hydraulic oil For use with water brass housing Not possible for explosive gases Standard (DS-117) | | |
| | | |
| | | |
| | | A | | |
| | | NOTICE ! The unit must only be installed by an electrican. Comply with the national and international regulations for the installation of electro-technical equipment. Voltage supply in compliance with EN 50178, SELV, PELV. Ensure that the equipment is not energized before connecting the unit. Hysteresis DS-117 For an adjustable pressure of approximately 60-70 % of max. adjustable pressure the Hysteresis is approximately 5-12 % of end value. | | |
| | | 2 IC | | |
| | | Connection: NCC: clamp 1-2 NOC: clamp 1-3 | | |
| | | |
| | | |
| | | |
| | | Available (DS-112) | | |
| | | |
| | | I© V ht | | |
| | | Connection: NCC: clamp 1-3 NOC: clamp 1-2 | | |
| | | p | | |
| | | |
| | | |
| | | |
| | | |
| | | In order to retain service-life over a long period vibrations, oscillations and high switching currents resp. inductive loads should - as far as possible - be avoided. | | |
| | | |
| | | Därmannsbusch 4, D-58456 Witten (Herbede) P. O. Box 31 65, D-58422 Witten (Herbede) Phone (0 23 02) 70 12-0, Fax (0 23 02) 70 12-47 Internet: www.hydropa.de - E-Mail: info@hydropa.de | | |
| | | HYDROSTAR | | |
| | | |
| | | ■cmaii.icaigci | | |
| | | |
| | | |
| | | hydropa 1.17/E 04/01 | | |
| | | 1.17/E-04.01-01 | | |
| | | Rights of alteration reserved in sense of technical development! | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
