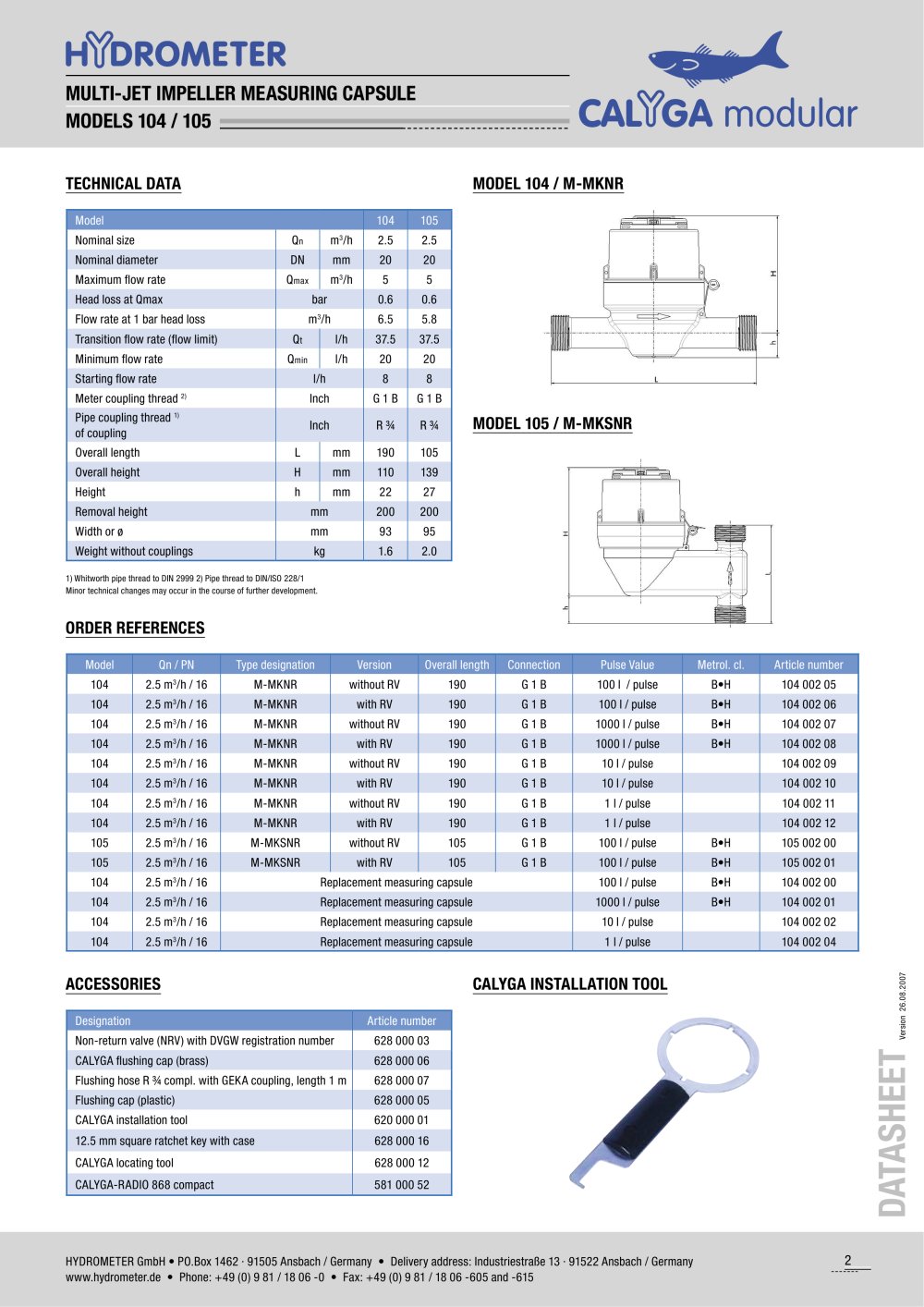

hïdrometer


	MULTI-JET IMPELLER MEASURING CAPSULE	«aiA _\| 1
	MODELS 104 / 105-	CALYGA modular

TECHNICAL DATA

MODEL 104 / M-MKNR



Nominal size	Qn	m³/h	2.5	2.5
Nominal diameter	DN	mm	20	20
Maximum flow rate	Qmax	m³/h	5	5
Head loss at Qmax	bar		0.6	0.6
Flow rate at 1 bar head loss	m³/h		6.5	5.8
Transition flow rate (flow limit)	Qt	l/h	37.5	37.5
Minimum flow rate	Qmin	l/h	20	20
Starting flow rate	l/h		8	8
Metercoupling thread²¹	Inch		G1 B	G1 B
Pipe coupling thread ¹¹ofcoupling	Inch		R%	R%
Overall length	L	mm	190	105
Overall height	H	mm	110	139
Height	h	mm	22	27
Removal height	mm		200	200
Width or 0	mm		93	95
Weight without couplings	kg		1.6	2.0

MODEL 105 / M-MKSNR

1) Whitworth pipe thread to DIN 2999 2) Pipe thread to DIN/ISO 228/1 Minor technical changes may occur in the course of further development.

ORDER REFERENCES


				Overall length	Connection
104	2.5 m³/h/16	M-MKNR	without RV	190	G1 B	1001 / puise	B»H	104 002 05
104	2.5 m³/h/16	M-MKNR	with RV	190	G1 B	1001/ puise	B»H	104 002 06
104	2.5 m³/h/16	M-MKNR	without RV	190	G1 B	1000 I / puise	B»H	104 002 07
104	2.5 m³/h/16	M-MKNR	with RV	190	G1 B	1000 I / puise	B»H	104 002 08
104	2.5 m³/h/16	M-MKNR	without RV	190	G1 B	101/ puise		104 002 09
104	2.5 m³/h/16	M-MKNR	with RV	190	G1 B	101/ puise		104 00210
104	2.5 m³/h/16	M-MKNR	without RV	190	G1 B	1 I / puise		104 00211
104	2.5 m³/h/16	M-MKNR	with RV	190	G1 B	1 I / puise		104 00212
105	2.5 m³/h/16	M-MKSNR	without RV	105	G1 B	1001/ puise	B»H	105 002 00
105	2.5 m³/h/16	M-MKSNR	with RV	105	G1 B	1001/ puise	B»H	105 002 01
104	2.5 m³/h/16	Replacement measuring capsule				1001/ puise	B»H	104 002 00
104	2.5 m³/h/16	Replacement measuring capsule				1000 I / puise	B»H	104 002 01
104	2.5 m³/h/16	Replacement measuring capsule				101/ puise		104 002 02
104	2.5 m³/h/16	Replacement measuring capsule				1 I / puise		104 002 04

ACCESSORIES

CALYGA INSTALLATION TOOL


	Désignation
	Non-return valve (NRV) with DVGW registration number	628 000 03
	CALYGA flushing cap (brass)	628 000 06
	Flushing hose R % compl. with GEKA coupling, length 1 m	628 000 07
	Flushing cap (plastic)	628 000 05
	CALYGA installation tool	620 000 01
	12.5 mm square ratchet key with case	628 00016
	CALYGA locating tool	628 00012
	CALYGA-RADIO 868 compact	581 000 52

HYDROMETER GmbH • PO.Box 1462 • 91505 Ansbach / Germany • Delivery address: Industriestralîe 13 • 91522 Ansbach / Germany www.hydrometer.de • Phone:+49(0)9 81 /18 06-0 • Fax:+49(0)9 81 /18 06-605and-615
