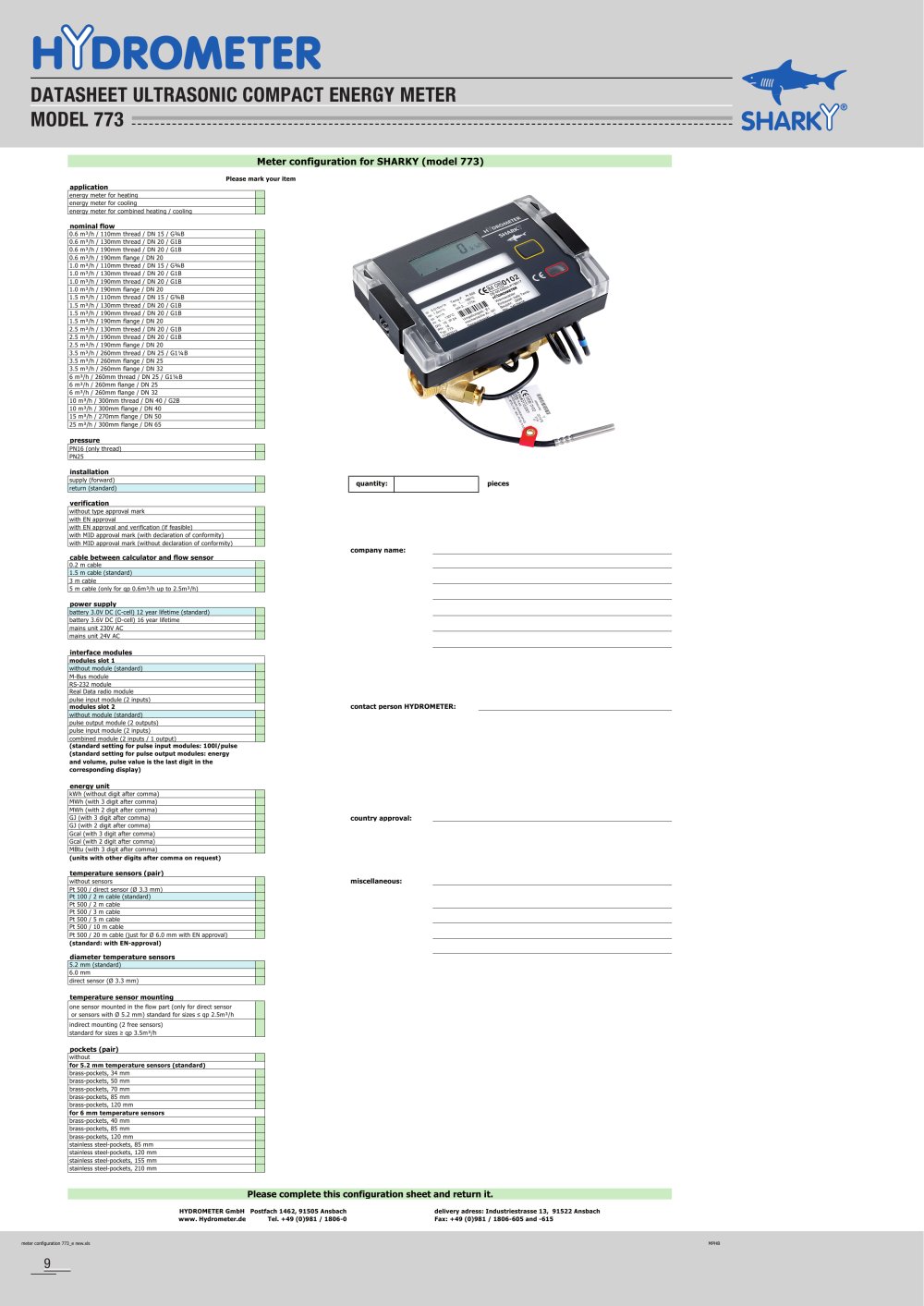

Please mark your item application energy meter for heating energy meter for cooling energy meter for combined heating / cooling nominal flow 0.6 m../h / 110mm thread / DN 15 / G..B 0.6 m../h / 130mm thread / DN 20 / G1B 0.6 m../h / 190mm thread / DN 20 / G1B 0.6 m../h / 190mm flange / DN 20 1.0 m../h / 110mm thread / DN 15 / G..B 1.0 m../h / 130mm thread / DN 20 / G1B 1.0 m../h / 190mm thread / DN 20 / G1B 1.0 m../h / 190mm flange / DN 20 1.5 m../h / 110mm thread / DN 15 / G..B 1.5 m../h / 130mm thread / DN 20 / G1B 1.5 m../h / 190mm thread / DN 20 / G1B 1.5 m../h / 190mm flange / DN 20 2.5 m../h / 130mm thread / DN 20 / G1B 2.5 m../h / 190mm thread / DN 20 / G1B 2.5 m../h / 190mm flange / DN 20 3.5 m../h / 260mm thread / DN 25 / G1..B 3.5 m../h / 260mm flange / DN 25 3.5 m../h / 260mm flange / DN 32 6 m../h / 260mm thread / DN 25 / G1..B 6 m../h / 260mm flange / DN 25 6 m../h / 260mm flange / DN 32 10 m../h / 300mm thread / DN 40 / G2B 10 m../h / 300mm flange / DN 40 15 m../h / 270mm flange / DN 50 25 m../h / 300mm flange / DN 65 pressure PN16 (only thread) PN25 installation supply (forward) return (standard) verification without type approval mark with EN approval with EN approval and verification (if feasible) with MID approval mark (with declaration of conformity) with MID approval mark (without declaration of conformity) company name: cable between calculator and flow sensor 0.2 m cable 1.5 m cable (standard) 3 m cable 5 m cable (only for qp 0.6m../h up to 2.5m../h) power supply battery 3.0V DC (C-cell) 12 year lifetime (standard) battery 3.6V DC (D-cell) 16 year lifetime mains unit 230V AC mains unit 24V AC interface modules modules slot 1 without module (standard) M-Bus module RS-232 module Real Data radio module pulse input module (2 inputs) modules slot 2 contact person HYDROMETER: without module (standard) pulse output module (2 outputs) pulse input module (2 inputs) combined module (2 inputs / 1 output) (standard setting for pulse input modules: 100l/pulse (standard setting for pulse output modules: energy and volume, pulse value is the last digit in the corresponding display) energy unit kWh (without digit after comma) MWh (with 3 digit after comma) MWh (with 2 digit after comma) GJ (with 3 digit after comma) country approval: GJ (with 2 digit after comma) Gcal (with 3 digit after comma) Gcal (with 2 digit after comma) MBtu (with 3 digit after comma) (units with other digits after comma on request) temperature sensors (pair) without sensors miscellaneous: Pt 500 / direct sensor (Ø 3.3 mm) Pt 100 / 2 m cable (standard) Pt 500 / 2 m cable Pt 500 / 3 m cable Pt 500 / 5 m cable Pt 500 / 10 m cable Pt 500 / 20 m cable (just for Ø 6.0 mm with EN approval) (standard: with EN-approval) diameter temperature sensors 5.2 mm (standard) 6.0 mm direct sensor (Ø 3.3 mm) temperature sensor mounting one sensor mounted in the flow part (only for direct sensor or sensors with Ø 5.2 mm) standard for sizes .. qp 2.5m../h indirect mounting (2 free sensors) standard for sizes .. qp 3.5m../h pockets (pair) without for 5.2 mm temperature sensors (standard) brass-pockets, 34 mm brass-pockets, 50 mm brass-pockets, 70 mm brass-pockets, 85 mm brass-pockets, 120 mm for 6 mm temperature sensors brass-pockets, 40 mm brass-pockets, 85 mm brass-pockets, 120 mm stainless steel-pockets, 85 mm stainless steel-pockets, 120 mm stainless steel-pockets, 155 mm stainless steel-pockets, 210 mm HYDROMETER GmbH Postfach 1462, 91505 Ansbach delivery adress: Industriestrasse 13, 91522 Ansbach www. Hydrometer.de Tel. +49 (0)981 / 1806-0 Fax: +49 (0)981 / 1806-605 and -615 Please complete this configuration sheet and return it. pieces Meter configuration for SHARKY (model 773) quantity: meter configuration 773_e new.xls MPHB DATASHEET ultrasonic compact energy meter model 773
