Communication
Designation Order number
M-Bus module 542 000 01
Radio module 542 000 17
RS-232 module 542 000 07
RS 232 module incl. data cable 542 000 30
data cable for RS 232 module 087HY0121
Function
module for 1 volume and 1 energy pulse output 542 000 02
module for 2 additional pulse inputs 542 000 03
module for 2 pulse input and 1 pulse output 542 000 26
Power supply
lithium battery 3,0V DC 542 000 06
lithium batterie 3,6V DC (incl. regulator) 542 000 16
mains unit 24V AC 542 000 05
mains unit 230V AC 542 000 04
Module
Accessories
Adapters for Temperature Sensors
Adapters for Temperature Sensor Mounting
10

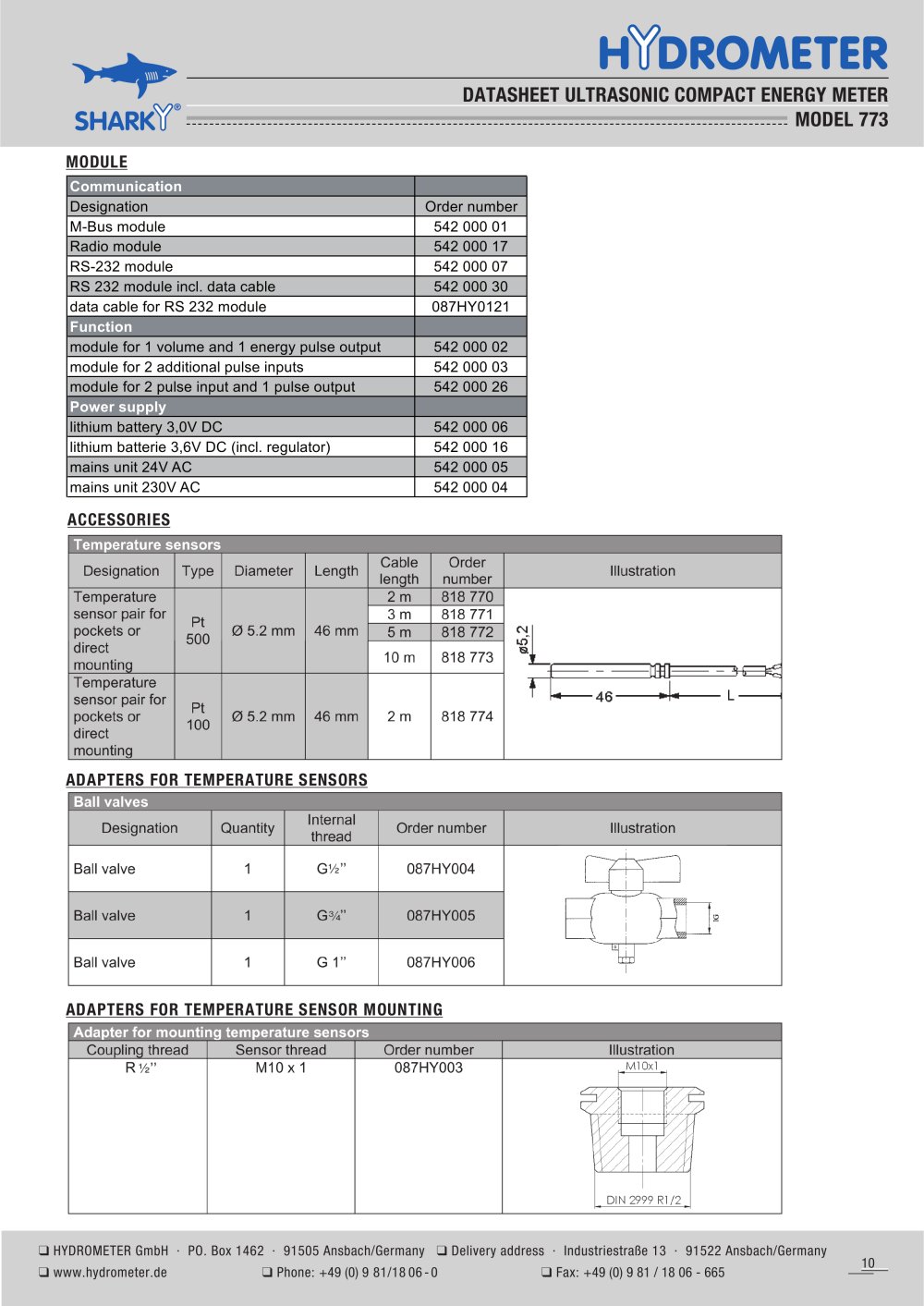

DAtasheet ultrasonic compact energy meter
model 773
