Ray Model - HYDROMETER - #9

Text version of the page

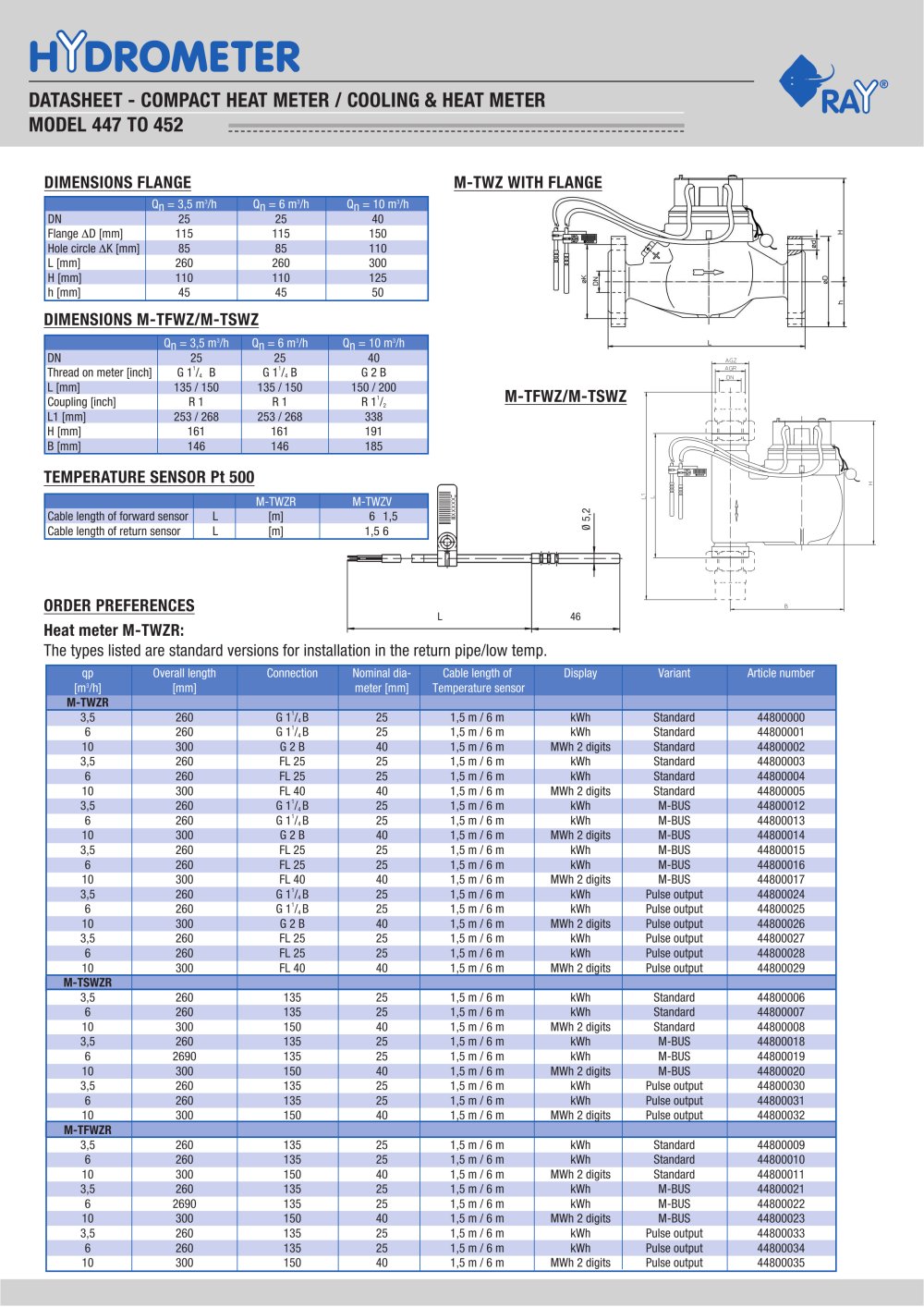

ORDER PREFERENCES Heat meter M-TWZR: The types listed are standard versions for installation in the return pipe/low temp. TEMPERATURE SENSOR Pt 500 DIMENSIONS FLANGE Qn = 3,5 m3/h Qn = 6 m3/h Qn = 10 m3/h DN 25 25 40 Flange D [mm] 115 115 150 Hole circle K [mm] 85 85 110 L [mm] 260 260 300 H [mm] 110 110 125 h [mm] 45 45 50 DIMENSIONS M-TFWZ/M-TSWZ Qn = 3,5 m3/h Qn = 6 m3/h Qn = 10 m3/h DN 25 25 40 Thread on meter [inch] G 11/4 B G 11/4 B G 2 B L [mm] 135 / 150 135 / 150 150 / 200 Coupling [inch] R 1 R 1 R 11/2 L1 [mm] 253 / 268 253 / 268 338 H [mm] 161 161 191 B [mm] 146 146 185 M-TWZR M-TWZV Cable length of forward sensor L [m] 6 1,5 Cable length of return sensor L [m] 1,5 6 L 46 Ø 5,2 M-TWZ WITH FLANGE M-TFWZ/M-TSWZ qp Overall length Connection Nominal dia- Cable length of Display Variant Article number [m3/h] [mm] meter [mm] Temperature sensor M-TWZR 3,5 260 G 11/4 B 25 1,5 m / 6 m kWh Standard 44800000 6 260 G 11/4 B 25 1,5 m / 6 m kWh Standard 44800001 10 300 G 2 B 40 1,5 m / 6 m MWh 2 digits Standard 44800002 3,5 260 FL 25 25 1,5 m / 6 m kWh Standard 44800003 6 260 FL 25 25 1,5 m / 6 m kWh Standard 44800004 10 300 FL 40 40 1,5 m / 6 m MWh 2 digits Standard 44800005 3,5 260 G 11/4 B 25 1,5 m / 6 m kWh M-BUS 44800012 6 260 G 11/4 B 25 1,5 m / 6 m kWh M-BUS 44800013 10 300 G 2 B 40 1,5 m / 6 m MWh 2 digits M-BUS 44800014 3,5 260 FL 25 25 1,5 m / 6 m kWh M-BUS 44800015 6 260 FL 25 25 1,5 m / 6 m kWh M-BUS 44800016 10 300 FL 40 40 1,5 m / 6 m MWh 2 digits M-BUS 44800017 3,5 260 G 11/4 B 25 1,5 m / 6 m kWh Pulse output 44800024 6 260 G 11/4 B 25 1,5 m / 6 m kWh Pulse output 44800025 10 300 G 2 B 40 1,5 m / 6 m MWh 2 digits Pulse output 44800026 3,5 260 FL 25 25 1,5 m / 6 m kWh Pulse output 44800027 6 260 FL 25 25 1,5 m / 6 m kWh Pulse output 44800028 10 300 FL 40 40 1,5 m / 6 m MWh 2 digits Pulse output 44800029 M-TSWZR 3,5 260 135 25 1,5 m / 6 m kWh Standard 44800006 6 260 135 25 1,5 m / 6 m kWh Standard 44800007 10 300 150 40 1,5 m / 6 m MWh 2 digits Standard 44800008 3,5 260 135 25 1,5 m / 6 m kWh M-BUS 44800018 6 2690 135 25 1,5 m / 6 m kWh M-BUS 44800019 10 300 150 40 1,5 m / 6 m MWh 2 digits M-BUS 44800020 3,5 260 135 25 1,5 m / 6 m kWh Pulse output 44800030 6 260 135 25 1,5 m / 6 m kWh Pulse output 44800031 10 300 150 40 1,5 m / 6 m MWh 2 digits Pulse output 44800032 M-TFWZR 3,5 260 135 25 1,5 m / 6 m kWh Standard 44800009 6 260 135 25 1,5 m / 6 m kWh Standard 44800010 10 300 150 40 1,5 m / 6 m MWh 2 digits Standard 44800011 3,5 260 135 25 1,5 m / 6 m kWh M-BUS 44800021 6 2690 135 25 1,5 m / 6 m kWh M-BUS 44800022 10 300 150 40 1,5 m / 6 m MWh 2 digits M-BUS 44800023 3,5 260 135 25 1,5 m / 6 m kWh Pulse output 44800033 6 260 135 25 1,5 m / 6 m kWh Pulse output 44800034 10 300 150 40 1,5 m / 6 m MWh 2 digits Pulse output 44800035 DATASHEET - COMPACT HEAT METER / COOLING & HEAT METER MODEL 447 TO 452
